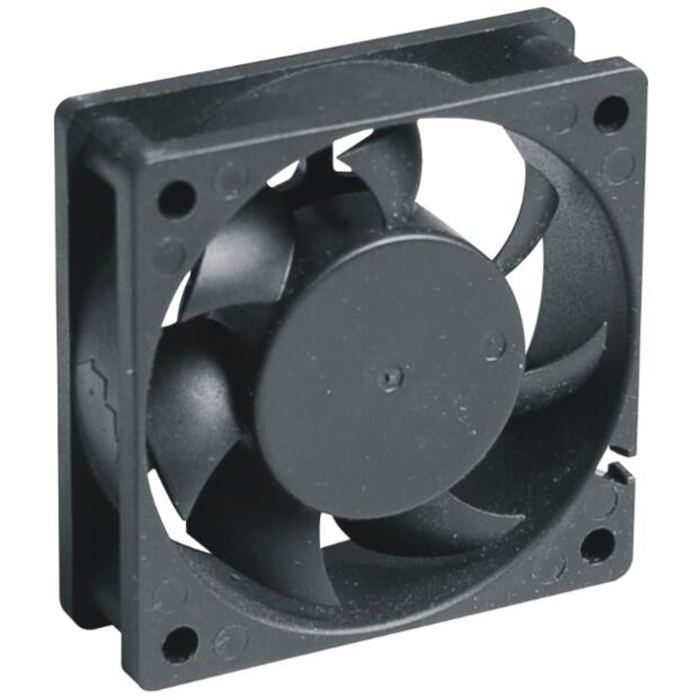

    SF6025
    SF6025
    Category：DC FAN

    Brief description

    Model: SF6025
    Size: 60x60x25mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 55g

  • Brief description
  • Model: SF6025
    Size: 60x60x25mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 55g
    • Size: 60x60x25mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF6025B(S)-12L

      √

      √

      12

      0.08

      3500

      15.80

      26.86

      34.41

      27

      SF6025B(S)-12M

      √

      √

      0.15

      4500

      20.15

      34.26

      58.03

      33

      SF6025B(S)-12H

      √

      √

      0.25

      5500

      24.71

      42.01

      86.27

      38

      SF6025B(S)-12HH

      √

      √

      0.30

      6500

      27.05

      45.99

      99.21

      41

      SF6025B(S)-24L

      √

      √

      24

      0.08

      3500

      15.80

      26.86

      34.41

      27

      SF6025B(S)-24M

      √

      √

      0.12

      4500

      20.15

      34.26

      58.03

      33

      SF6025B(S)-24H

      √

      √

      0.15

      5500

      24.71

      42.01

      86.27

      38

      SF6025B(S)-24HH

      √

      √

      0.18

      6500

      27.05

      45.99

      99.21

      41



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 55g

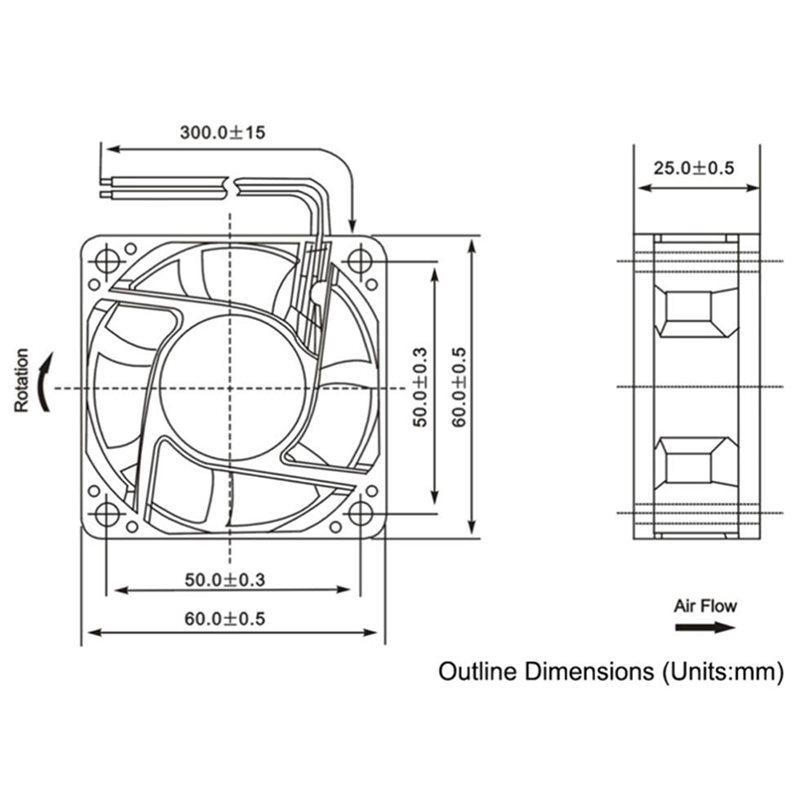

      Dimensions:
