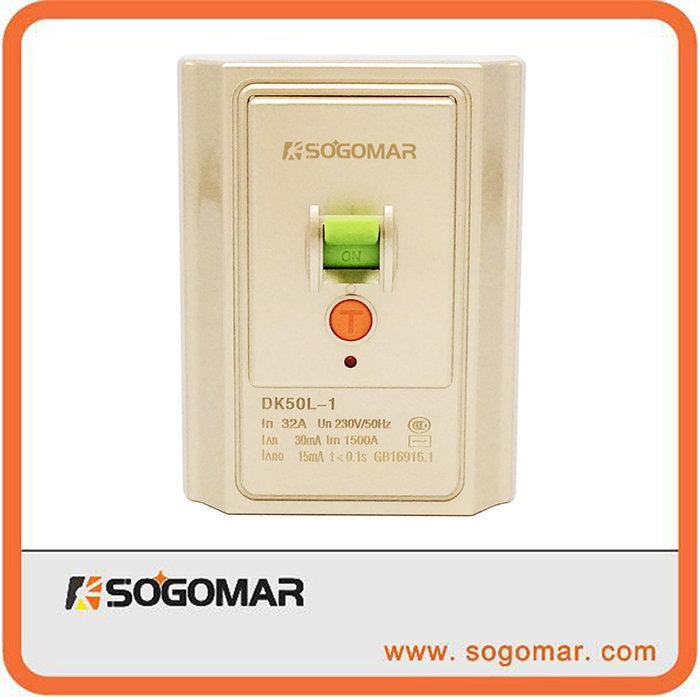

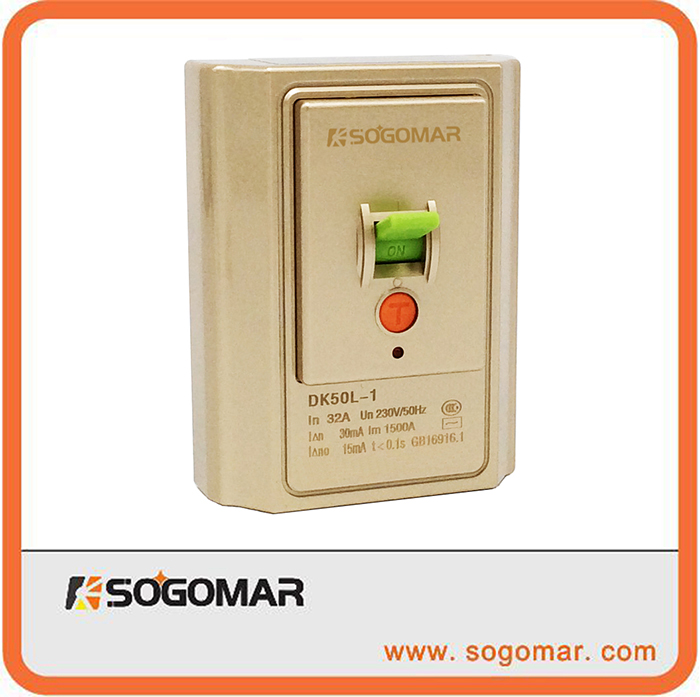

    DK50L-1,32A
    DK50L-1,32A
    Category:CIRCUIT BREAKER

    Brief description

    Leakage Protection Switch
    Model No.: DK50L-1,32A
    Specification: 86mmx110mm
    Rated Current: 32A/40A
    Color: White and Silver
    Operation: Manual Type
    Arc-extinguishing Medium: Vacuum
    Shell Material: Flame Retardant PC Plastic

  • Brief description
  • Leakage Protection Switch
    Model No.: DK50L-1,32A
    Specification: 86mmx110mm
    Rated Current: 32A/40A
    Color: White and Silver
    Operation: Manual Type
    Arc-extinguishing Medium: Vacuum
    Shell Material: Flame Retardant PC Plastic
    • DK50L-1,32A: 86x110mm

      Application:

      This product is suitable for air conditioner, water heaters, refrigerators, washing machines, electric pumps, electric lawn mower and other electrical leakage protection.

      Pole

      Refrigerating Capacity

      Rated Current

      Reference Power

      Air Conditioning Type

      Recommended Type

      1P

      2324W

      16A

      3520W

      Hanging type

      16A Big Plug

      1.5P

      3200-3600W

      16A

      3520W

      Hanging type

      16A Big Plug

      2P

      4500-5500W

      32A

      7040W

      Cabinet type

      32A Switch

      3P

      6000-7500W

      32A

      7040W

      Cabinet type

      32A Switch

      5P

      12000W

      40A

      8800W

      Cabinet type

      40A Switch







      The product is used for installation in the single-phase 230V/50Hz power lines, over current, over voltage and short circuit protection function, which completely replace the ordinary 16A air conditioner socket. It is suitable for air conditioning, electric water heater, solar water heater, vending machine, water dispenser, refrigerator, washing machine and other electric equipment. It is especially suitable for the installation of the power plug of the air conditioner. It has the function of electricity leakage, electric shock protection and disconnecting the power in time. At the same time, it can prevent the electrical fire danger caused by the aging of the equipment insulation and the ground fault caused by the damage.

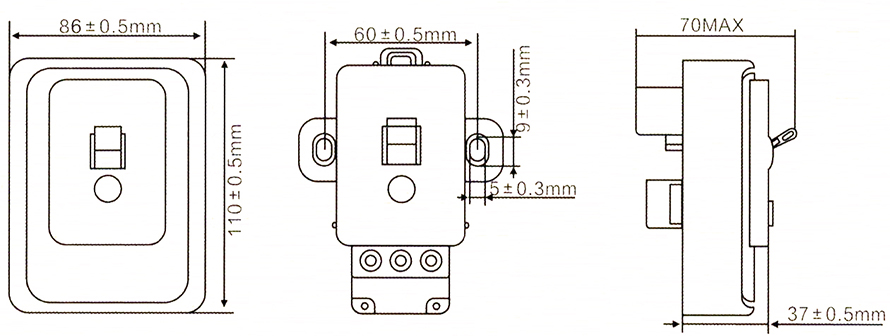

      Dimension:
