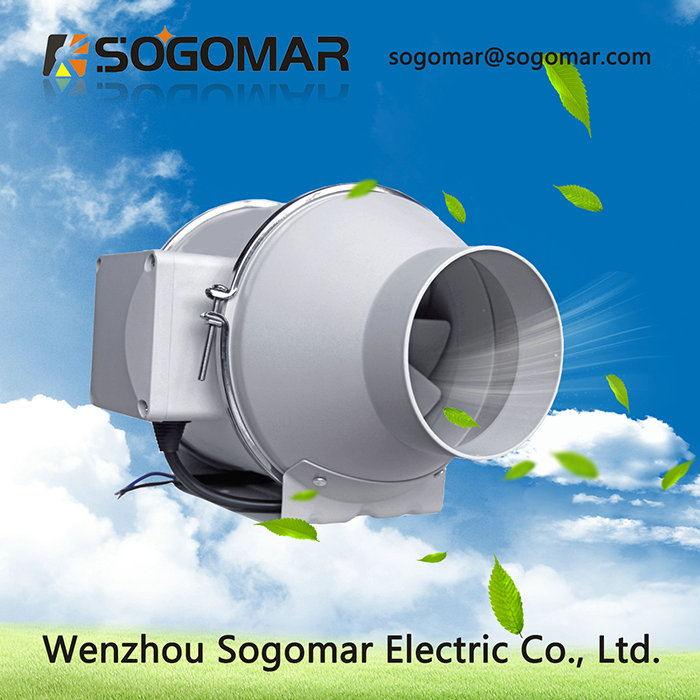

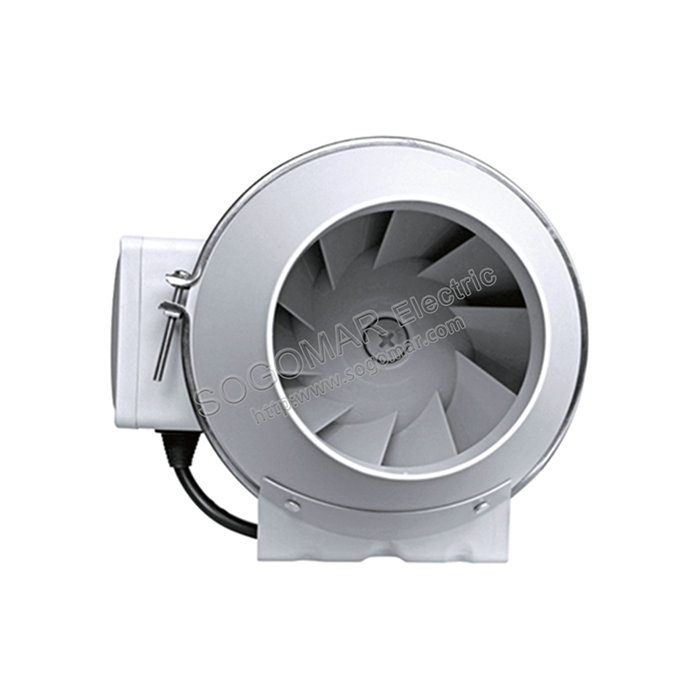

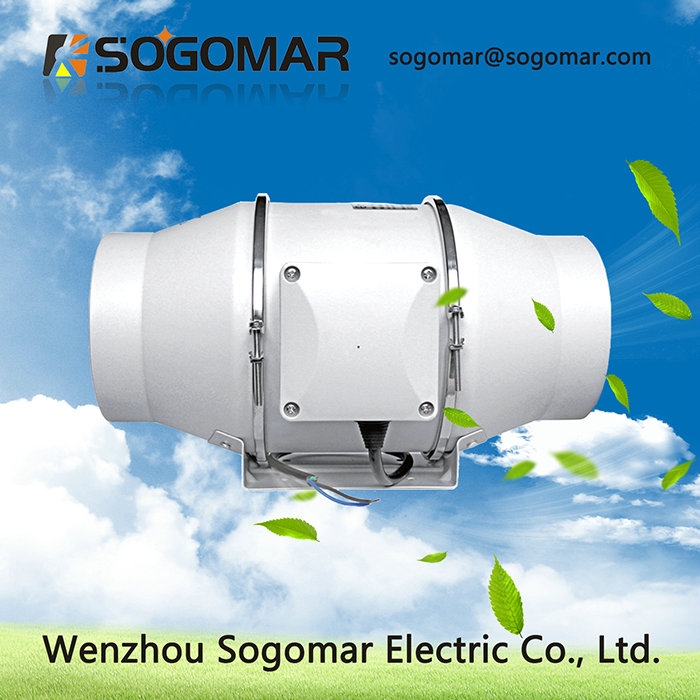

    SFP-100H(L)-2 Pipe Fan/Duct Fan
    SFP-100H(L)-2 Pipe Fan/Duct Fan
    Category:PIPE FAN

    Brief description

    Model NO.: SFP-100
    Blade Material: Plastic
    Electric Current Type: AC
    Certification: CE
    Voltage(V): 220
    Color: White
    Material: Plastic
    Type: Exhaust Fan
    Mounting: Duct Fan
    Weight(Kg): 1.6
    Power(W): 31-45
    Specification: 100mm

  • Brief description
  • Model NO.: SFP-100
    Blade Material: Plastic
    Electric Current Type: AC
    Certification: CE
    Voltage(V): 220
    Color: White
    Material: Plastic
    Type: Exhaust Fan
    Mounting: Duct Fan
    Weight(Kg): 1.6
    Power(W): 31-45
    Specification: 100mm
    • Oblique Flow Pressurized Turbo Blower Pipe Fan (Dia: 100mm)

      Application:

      library, KTV, canteens, cinemas, classrooms, hospital rooms, conference rooms, hall, lounge, bathroom, toliets, dining rooms, kitchen, basement, smoking rooms, hotel restaurants, warehouses, offices, etc.

      Parameters:



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Speed
      回转速度
      (min-1)

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Max Air Flow
      最大风量
      m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SFP-100H(L)-2

      220

      50

      High Speed高速

      2500

      0.16

      35

      295

      170

      30

      Low Speed低速

      2150

      0.12

      27

      225

      135

      26

      SFP-125H(L)-2

      220

      50

      High Speed高速

      2500

      0.2

      45

      350

      170

      30

      Low Speed低速

      1850

      0.16

      31

      285

      140

      26

      SFP-150H(L)-2

      220

      50

      High Speed高速

      2500

      0.27

      58

      650

      260

      32

      Low Speed低速

      2070

      0.22

      46

      520

      220

      28

      SFP-200H(L)-2

      220

      50

      High Speed高速

      2450

      0.54

      120

      1050

      360

      58

      Low Speed低速

      1770

      0.45

      95

      830

      300

      52

      SFP-250H(L)-2

      220

      50

      High Speed高速

      2550

      0.93

      200

      1300

      520

      58

      Low Speed低速

      2200

      0.83

      175

      1050

      460

      52

      SFP-300H(L)-2

      220

      50

      High Speed高速

      2500

      1.65

      320

      2900

      630

      65

      Low Speed低速

      2250

      1.35

      280

      2500

      580

      55



      Information:

      Frame:made of polypropylene plastic disposable forming, with function of high resistance to acid and alkali.
      Impeller: ABS materials,the optimum air volume air pressure according to the fluid mechanics design.
      Motor:A two-speed motor,uses the import NSK ball, life can reach more than 50000 hours
      Operation Temperature: -20 ºC~60 ºC : -20 ºC~60 ºC
      Protecting Grade: IP44
      Can be designed with the function of delay time, temperature sensor and humidity sensor of humanized function




      Dimensions:

      Type
      产品型号

      A

      B

      C

      D

      E

      F

      G

      H

      L

      kg

      SFP-100H(L)-2

      303

      170

      98

      80

      115

      100

      188

      60

      80

      1.6

      SFP-125H(L)-2

      303

      170

      123

      80

      115

      100

      188

      60

      80

      1.6

      SFP-150H(L)-2

      320

      200

      158

      130

      127

      112

      212

      60

      80

      3.2

      SFP-200H(L)-2

      320

      220

      198

      140

      141

      124

      232.5

      94

      100

      4.3

      SFP-250H(L)-2

      385

      272

      248

      168

      192

      155

      291

      140

      145

      8.5

      SFP-300H(L)-2

      450

      336

      312

      210

      224

      188

      356

      178

      182

      13.0

      Alldimension in mm. 单位:毫米(mm).
