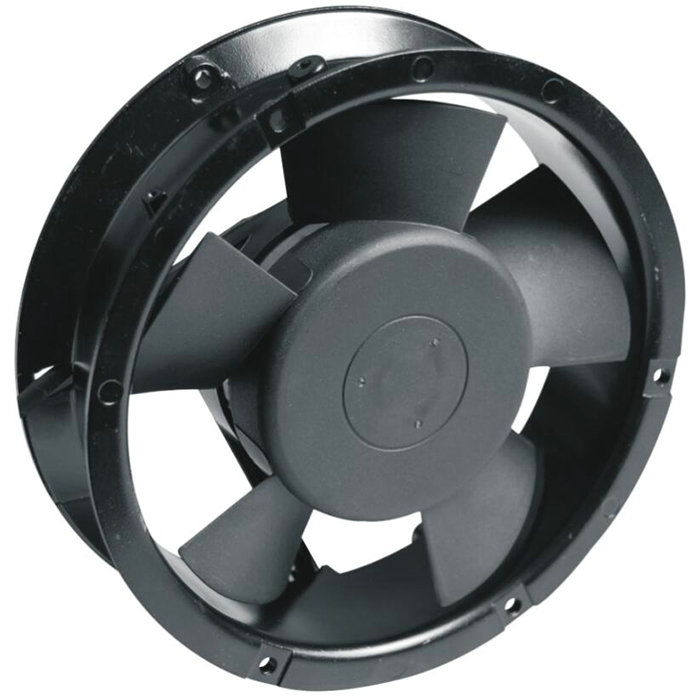

    SF17252
    SF17252
    Category:DC FAN

    Brief description

    Model: SF17252
    Size: 172x172x52mm
    Rated Voltage: 12VDC, 24VDC, 48VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 735g

  • Brief description
  • Model: SF17252
    Size: 172x172x52mm
    Rated Voltage: 12VDC, 24VDC, 48VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 735g
    • Size: 172x172x52mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM          m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF17252B-12M



      12

      0.95

      2300

      220

      374

      206.8

      58

      SF17252B-12H



      1.15

      2600

      250

      425

      301.0

      60

      SF17252B-24M



      24

      0.42

      2400

      230

      391

      206.8

      53

      SF17252B-24H



      0.60

      2700

      260

      442

      301.0

      65

      SF17252B-48M



      48

      0.33

      2500

      240

      408

      206.8

      60

      SF17252B-48H



      0.38

      2800

      270

      459

      301.0

      62



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 735g

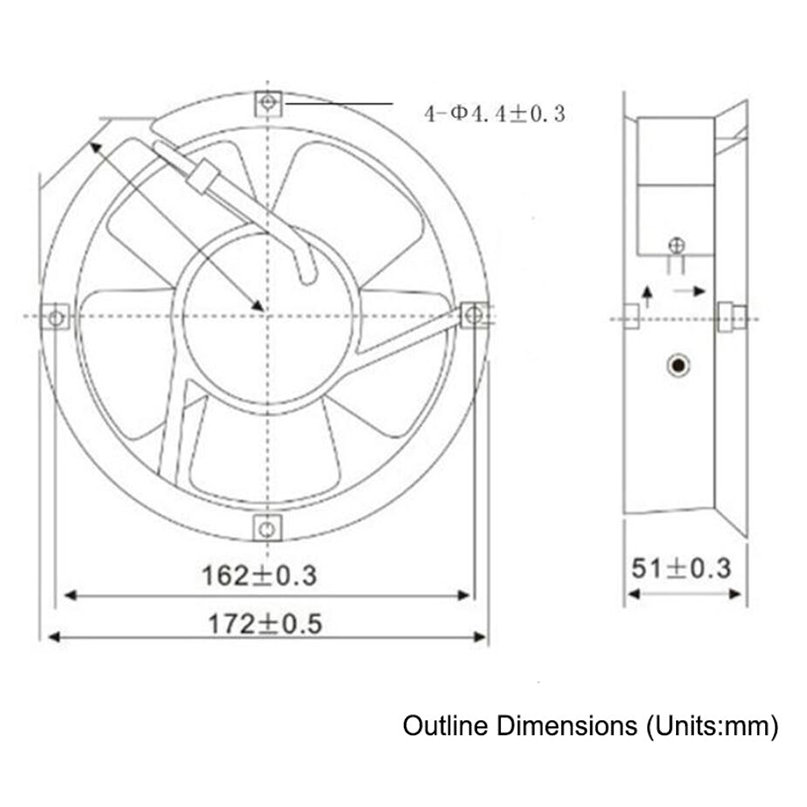

      Dimensions:
