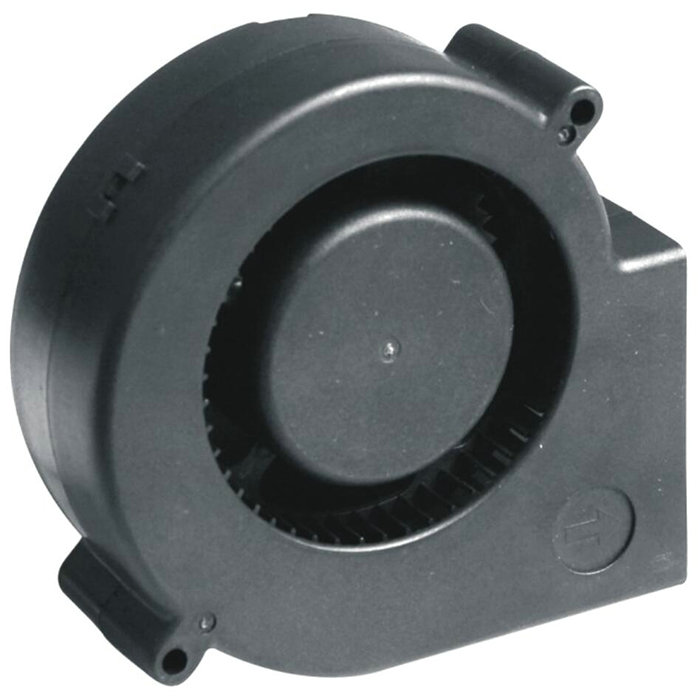

    SFT9733
    SFT9733
    Category:DC FAN

    Brief description

    Model: SF9733
    Size: 97x94x33mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 33g

  • Brief description
  • Model: SF9733
    Size: 97x94x33mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 33g
    • Size: 97x94x33mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM          m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SFT9733B(S)-12L

      12

      0.35

      2200

      14.42

      24.51

      76

      40

      SFT9733B(S)-12M

      0.50

      2800

      18.54

      31.52

      132

      43

      SFT9733B(S)-12H

      0.80

      3300

      22.41

      38.10

      202

      50

      SFT9733B(S)-24L

      24

      0.22

      2200

      14.42

      24.51

      76

      40

      SFT9733B(S)-24M

      0.35

      2800

      18.54

      31.52

      132

      43

      SFT9733B(S)-24H

      0.55

      3300

      22.41

      38.10

      202

      50



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 165g

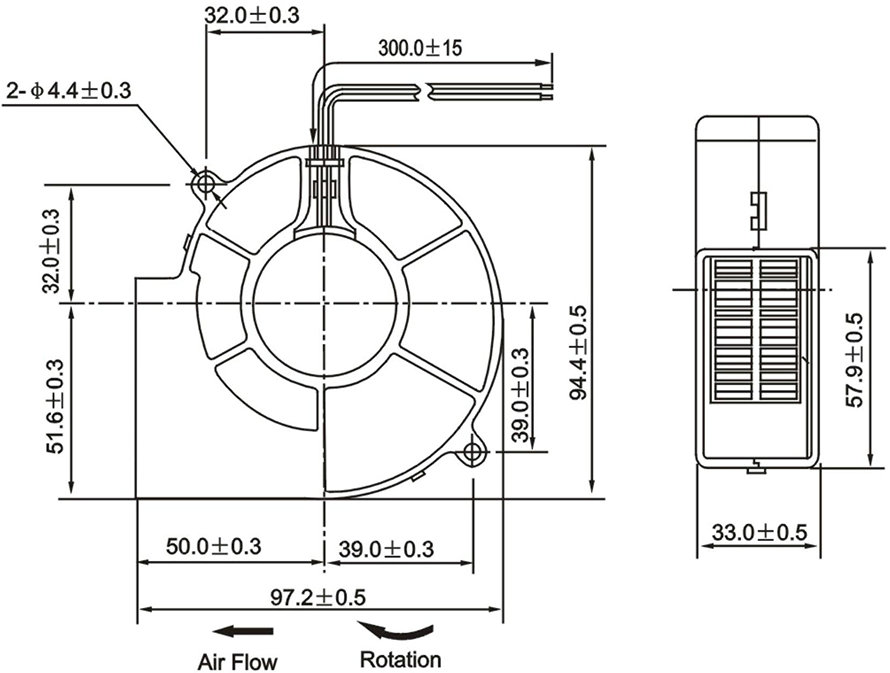

      Dimensions:
