Brief description
Model NO.: XGB
Voltage: 380/220VAC
Revolution: 2800r/Min
Air Flow: 80-1050m3/H
Current: 2.1-28A
Noise: 53-74dB
Material: Aluminum
Usage: for Air Conditioner, for Refrigerate, Dust Exhausting, Ventilating
Flow Direction: Centrifugal
Pressure: High Pressure
Power: 250W-11kw

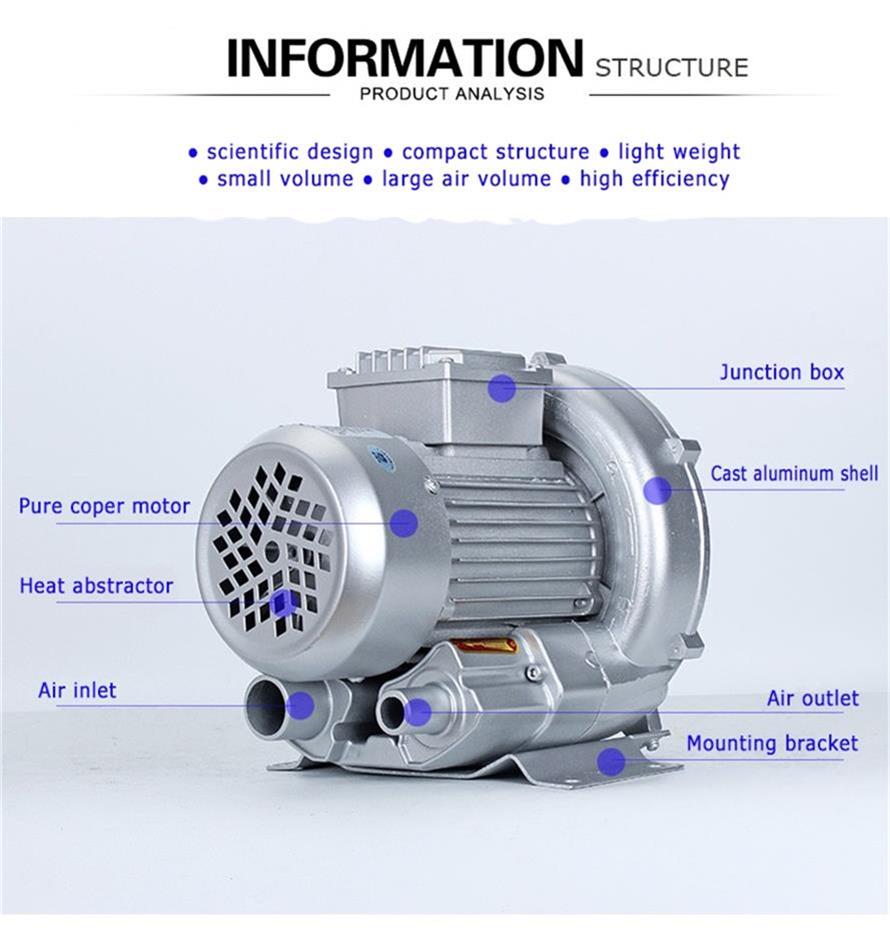

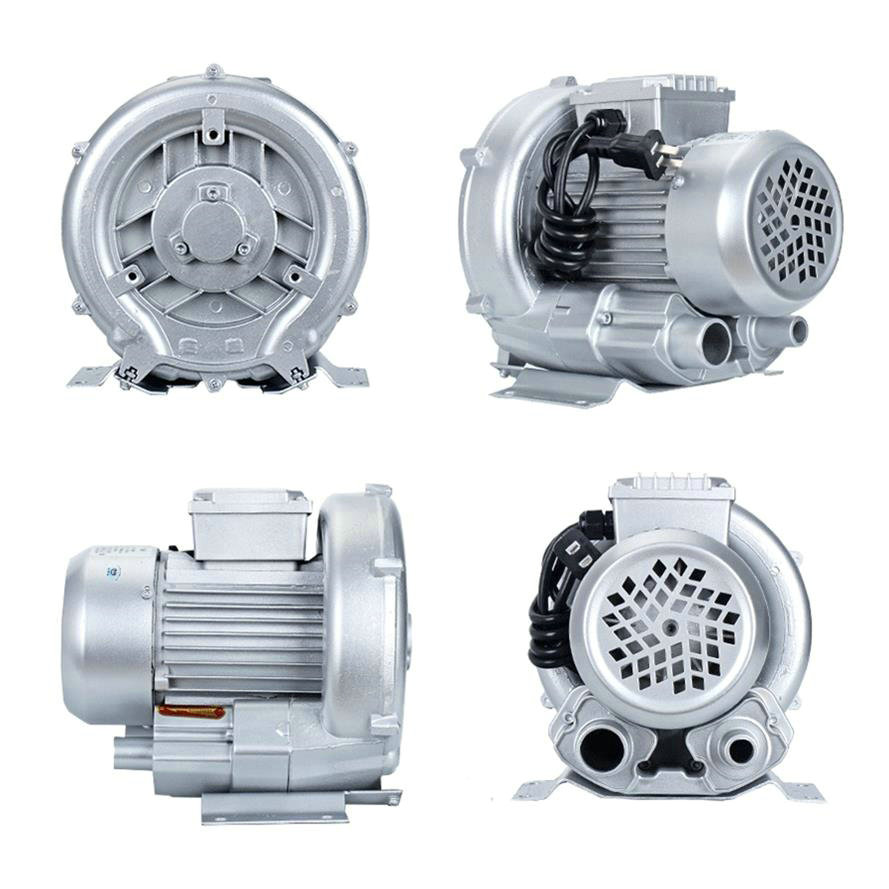

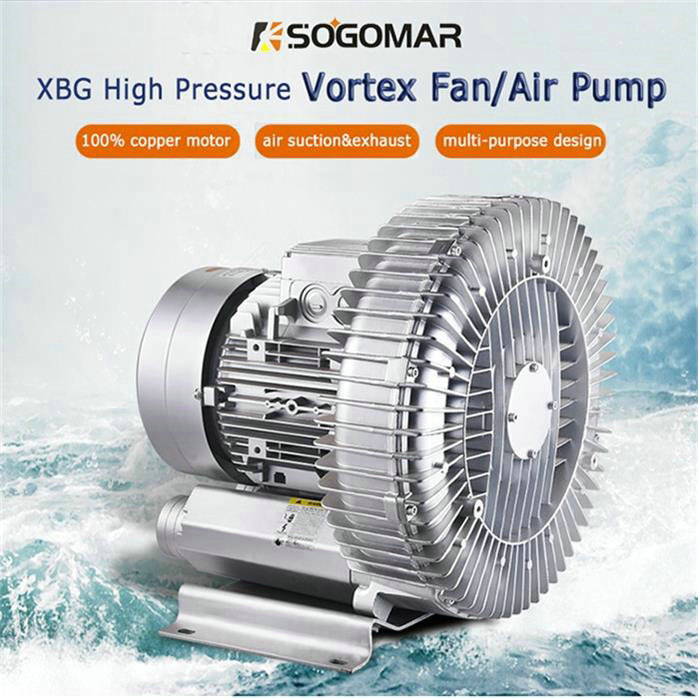

XGB Vortex centrifugal axial fan/ Air pump
1. Vortex fan (vortex air pump) adopts a special motor. It has compact structure, small volume, light weight, low noise, send out the gas source without water and oil.
2. Application:
Vortex fan (vortex air pump) can be widely used to transport materials and air, can also be used for printing machine adsorption, welding waste gas absorption, loom suction silk, photographic plate, powder particle transport, printing and adsorption, industrial dust, vacuum dehydration, smoke blowing, washing car drying, press drying, cleaning after cleaning, gas heavy oil spray and dry, blow, drying, molding, etc.
Parameters
|
Type |
Motor Power |
Voltage |
Frequency |
Speed |
Current |
Air Flow |
Noise |
Pressure |
Vacuum |
Weight |
Carton Size |
|
V |
Hz |
r/min |
A |
m³/h |
dB(A) |
mbar |
mbar |
KG |
cm | ||
|
XGB210 |
250W |
220/380 |
50 |
2800 |
2.1 |
80 |
53 |
110 |
110 |
11 |
31.5*29.5*28 |
|
XGB212 |
370W |
220/380 |
50 |
2800 |
2.6 |
80 |
53 |
130 |
120 |
12 |
31.5*29.5*28 |
|
XGB310 |
550W |
220/380 |
50 |
2800 |
3.7 |
100 |
55 |
120 |
120 |
13 |
33*31.5*30 |
|
XGB410 |
750W |
220/380 |
50 |
2800 |
4.8 |
145 |
56 |
130 |
130 |
16 |
34.5*33*32.5 |
|
XGB510 |
1.1KW |
220/380 |
50 |
2800 |
7.3 |
210 |
64 |
160 |
160 |
21 |
38*38*36.5 |
|
XGB511 |
1.5KW |
220/380 |
50 |
2800 |
9 |
210 |
64 |
200 |
190 |
26 |
38*38*36.5 |
|
XGB611 |
2.2KW |
380 |
50 |
2800 |
9.7 |
265 |
69 |
220 |
235 |
28 |
43*43*41.5 |
|
XGB711 |
2.2KW |
380 |
50 |
2800 |
9.7 |
318 |
69 |
250 |
260 |
30 |
40*43*41 |
|
XGB712 |
3KW |
380 |
50 |
2800 |
12.5 |
318 |
69 |
290 |
270 |
32 |
40*43*41 |
|
XGB713 |
4KW |
380 |
50 |
2800 |
12.9 |
318 |
69 |
330 |
290 |
38 |
40*43*41 |
|
XGB811 |
5.5KW |
380 |
50 |
2800 |
13.9 |
530 |
70 |
300 |
300 |
63 |
53*50*50 |
|
XGB812 |
7.5KW |
380 |
50 |
2800 |
16.7 |
530 |
70 |
320 |
320 |
66 |
53*50*50 |
|
XGB911 |
11KW |
380 |
50 |
2800 |
28 |
1050 |
74 |
280 |
280 |
116 |
70*61*59.5 |
