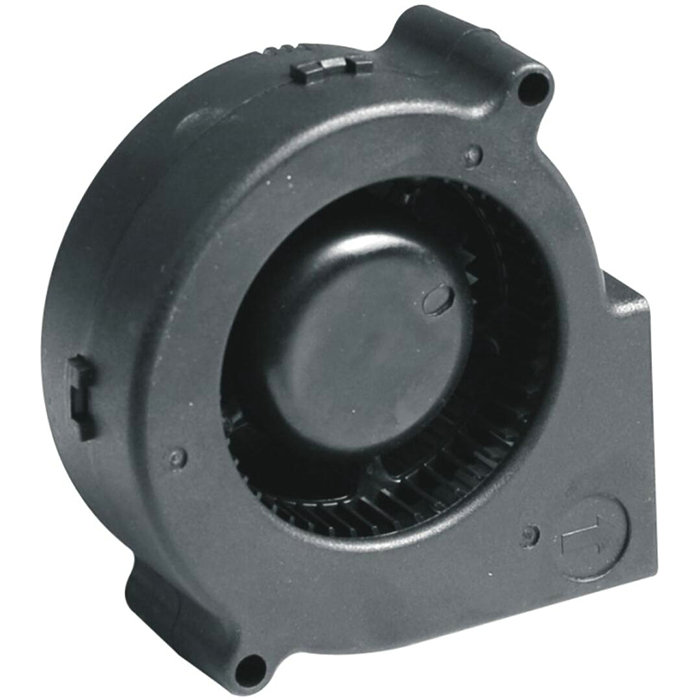

    SFT7530
    SFT7530
    Category：DC FAN

    Brief description

    Model: SF7530
    Size: 75x75x30mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 77g

  • Brief description
  • Model: SF7530
    Size: 75x75x30mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 77g

    • Size: 75x75x33mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SFT7530B(S)-12D

      √

      √

      12

      0.50

      4000

      12.95

      22.02

      43

      43

      SFT7530B(S)-12H

      √

      √

      0.42

      3500

      12.45

      21.17

      40

      40

      SFT7530B(S)-12M

      √

      √

      0.28

      3000

      10.21

      17.36

      36

      36

      SFT7530B(S)-12L

      √

      √

      0.18

      2500

      8.55

      14.54

      33

      33

      SFT7530B(S)-12X

      √

      √

      0.14

      2000

      7.02

      11.93

      28

      28

      SFT7530B(S)-24D

      √

      √

      24

      0.30

      4000

      12.95

      22.02

      43

      43

      SFT7530B(S)-24H

      √

      √

      0.24

      3500

      12.45

      21.17

      40

      40

      SFT7530B(S)-24M

      √

      √

      0.18

      3000

      10.21

      17.36

      36

      36

      SFT7530B(S)-24L

      √

      √

      0.12

      2500

      8.55

      14.54

      33

      33

      SFT7530B(S)-24X

      √

      √

      0.10

      2000

      7.02

      11.93

      28

      28



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 77g

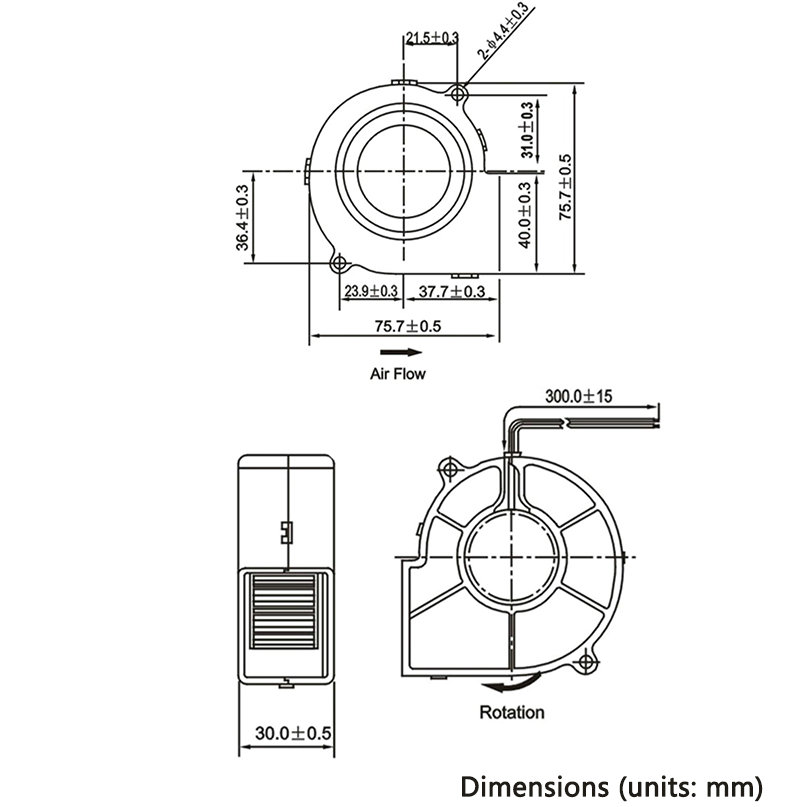

      Dimensions:
