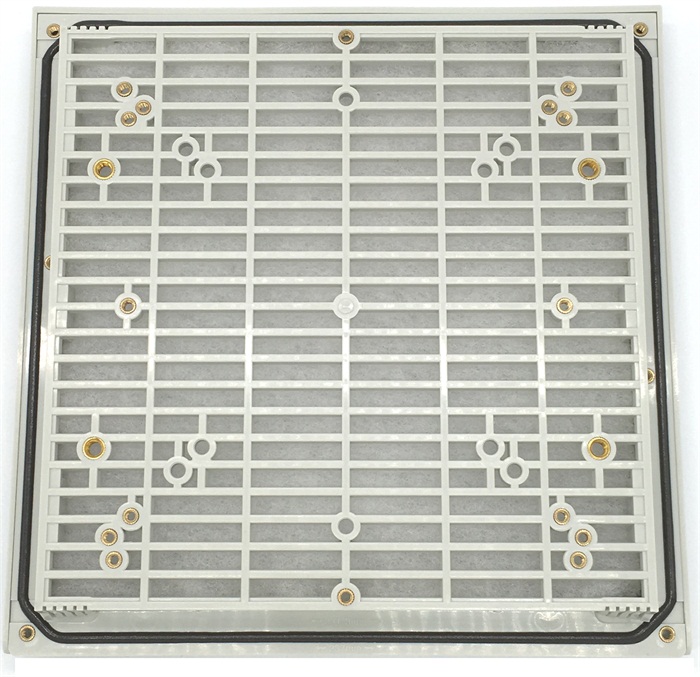

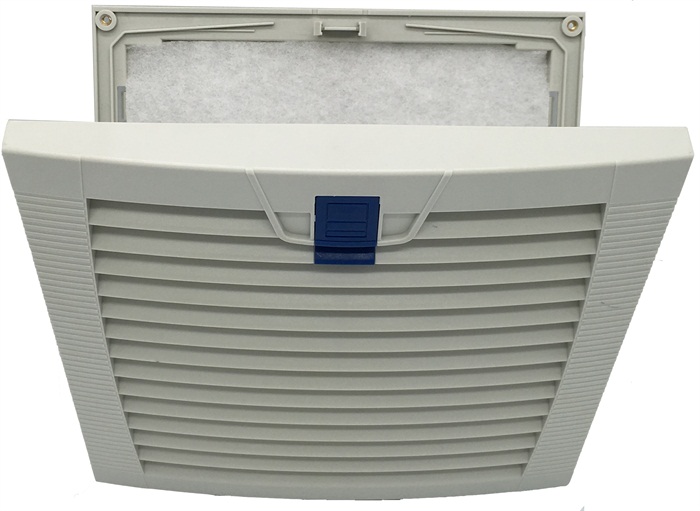

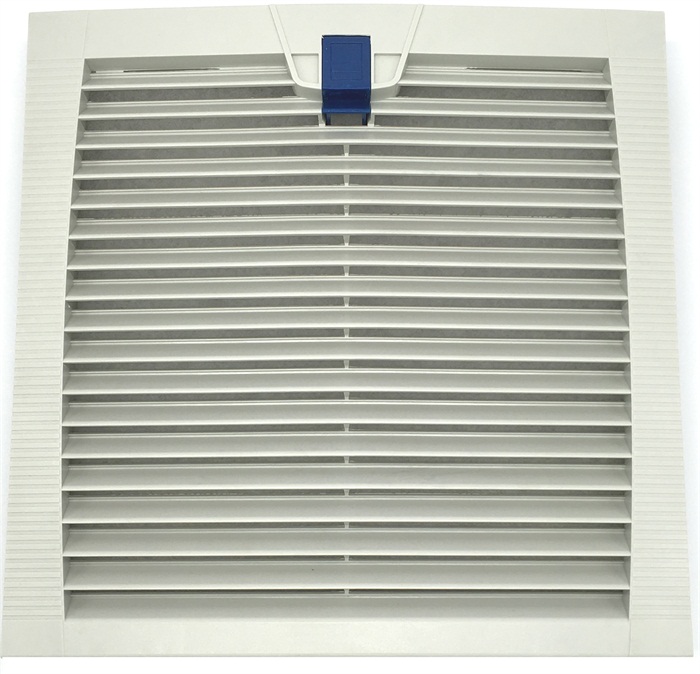

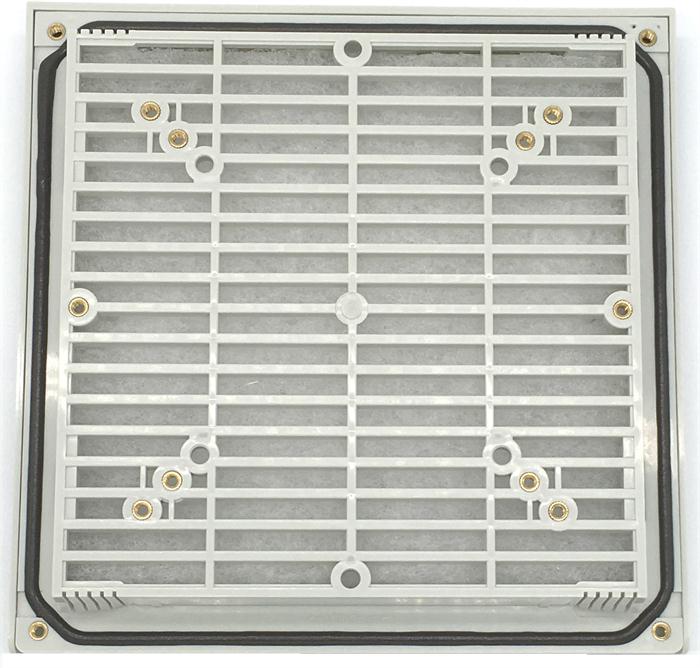

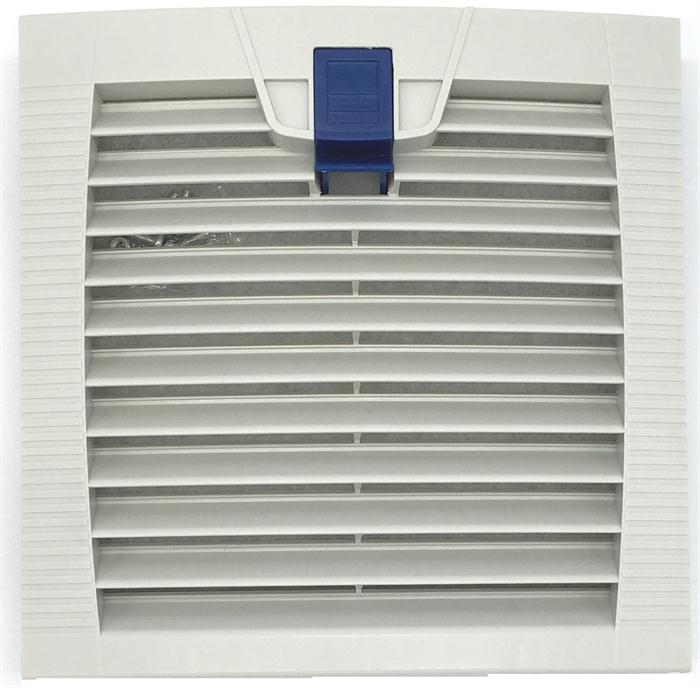

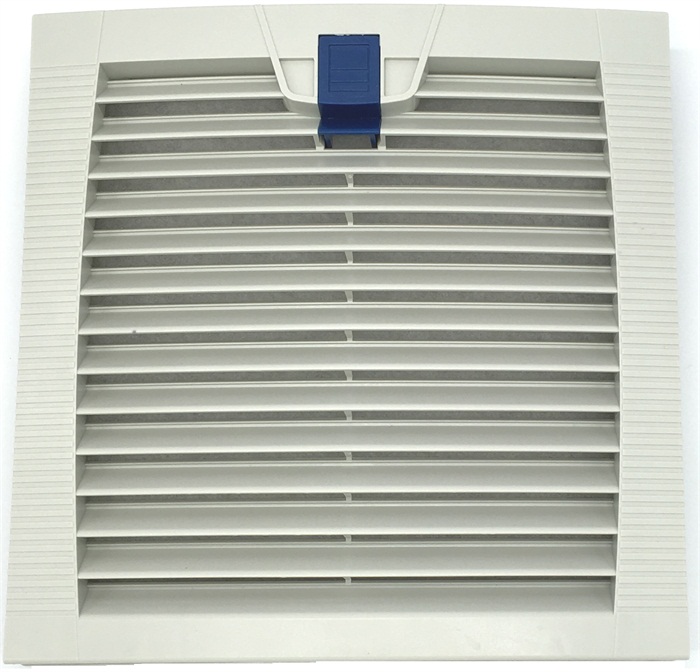

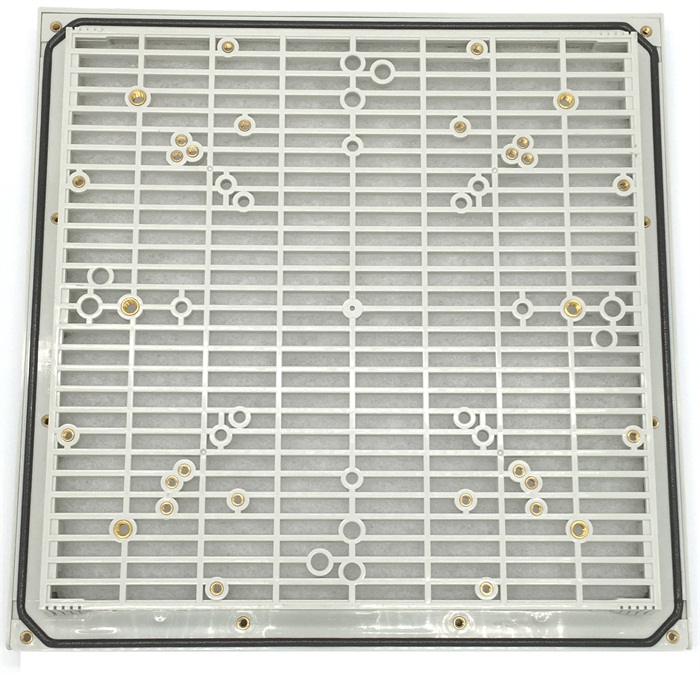

    SPFD Series
    SPFD Series
    Category：PLASTIC FAN FILTER

    Brief description

    Product applications:
    Our products are widely used in the control panels, junction boxes, power distribution box, automation equipment, electronic and power device, welding machine, packing and printing machine.

    Product advantages:
    1. High efficiency for dust-proof function
    2. Free of maintenance
    3. Smart size
    4. Easy to install
    5. High quality sealing gasket, super sealing performance

  • Brief description
  • Product applications:
    Our products are widely used in the control panels, junction boxes, power distribution box, automation equipment, electronic and power device, welding machine, packing and printing machine.

    Product advantages:
    1. High efficiency for dust-proof function
    2. Free of maintenance
    3. Smart size
    4. Easy to install
    5. High quality sealing gasket, super sealing performance

    • 1. Material of net body: ABS resin of flamer resistance
      2. Filter screen material: polyester fiber synthetic resin
      3. Pressures lose of filter screen: initial 6.9mm AQ; terminal 24mmAQ
      4. Max wind speed: 2.0m/sec
      5. Operation temperature range: -10ºC to +55ºC indoors
      6. Effective wind speed: 50m3/min
      7. Collection coefficient: 89%
      8. Protection grade: IP54

      Type

      Dimension(mm)

      Application Fan size(mm)

      SPFD9803

      156X156

      80X80, 110X110, 120X120

      SPFD9804

      207X207

      110X110,120X120, 150X150,150X172

      SPFD9805

      255X255

      120X120, 150X150,150X172,180X180,200X200,225X225, Φ220, Φ230

      SPFD9806

      322.5X322.5

      120X120, 150X150, 150X172, 180X180, 225X225, 280X280,Φ220, Φ230
