Brief description

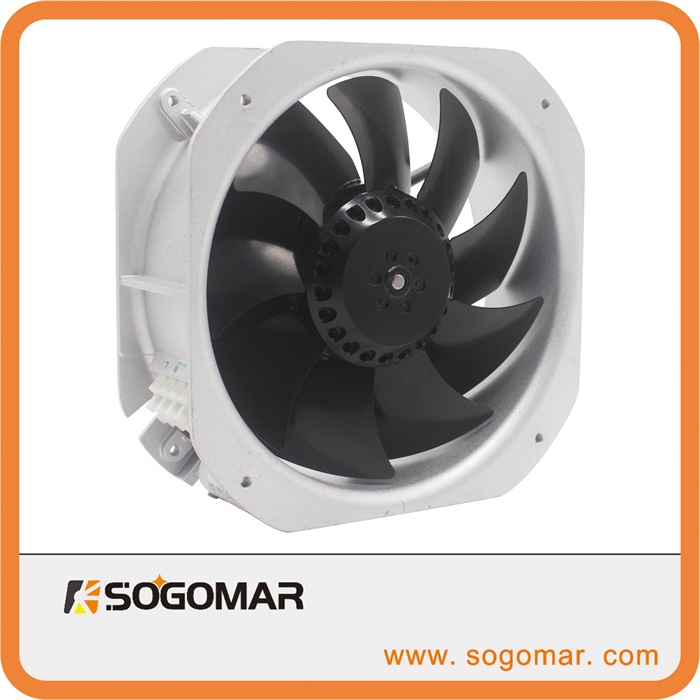

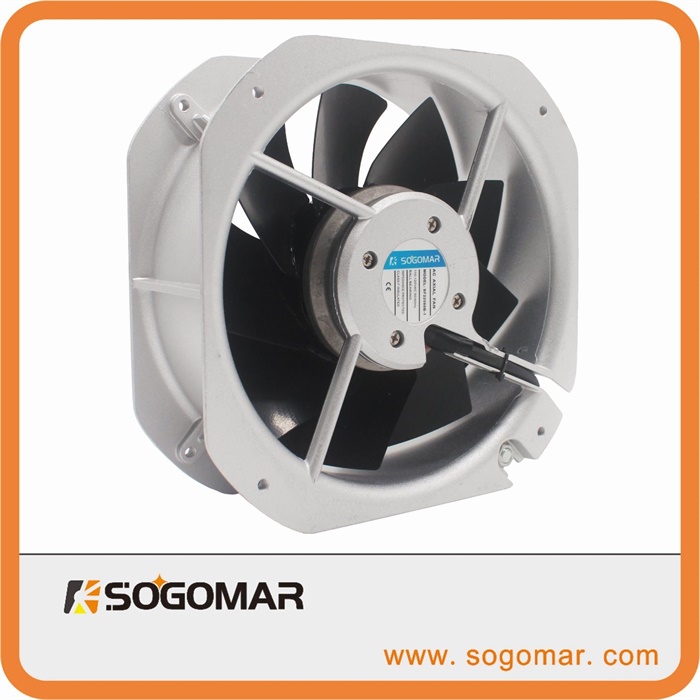

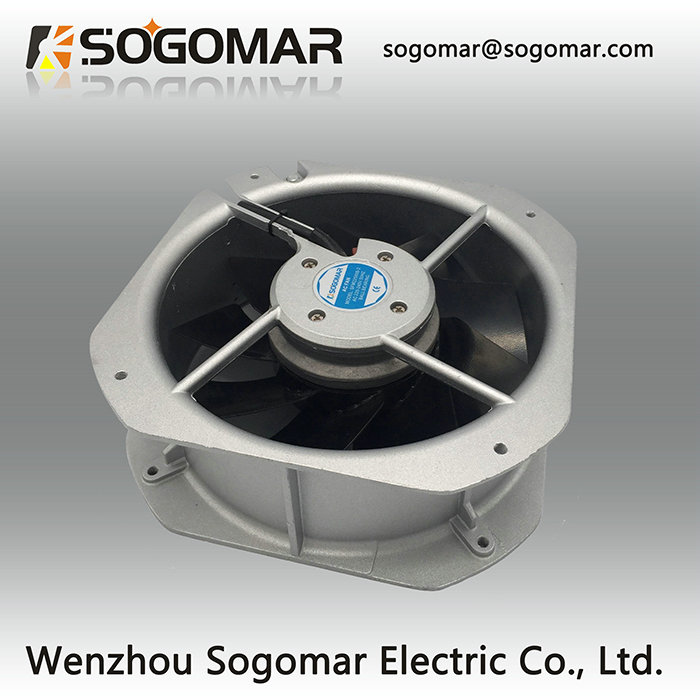

SFM22580
Size: 225x225x80mm
Voltage: 110-120VAC, 220-240VAC, 380VAC
Frequency: 50Hz, 60Hz and 50/60Hz
Bearing: Ball bearing
Connection: leadwire or terminals
Material: Alu frame, steel blades, copper coil.
Color: Black or Silver
Package: 53.5*27.5*27.5cm,5PCS/Carton,11.6kgs
SFM22580
Parameters
|
Type |
Rated Voltage |
Frequency |
Current |
Power |
Speed |
Max Air Flow |
Static Pressure |
Noise |
Capacitor | |
|
SFM22580B-1 |
115 |
50 |
0.60 |
65 |
2550 |
546 |
925 |
100 |
59 |
---- |
|
60 |
0.64 |
75 |
2750 |
596 |
1010 |
120 |
61 | |||
|
SFM22580B-2 |
230 |
50 |
0.30 |
65 |
2550 |
546 |
925 |
100 |
59 |
---- |
|
60 |
0.34 |
77 |
2750 |
596 |
1010 |
120 |
61 | |||
|
SFM22580B-3 |
380 |
50 |
0.18 |
64 |
2550 |
546 |
925 |
100 |
59 |
---- |
|
60 |
0.20 |
78 |
2750 |
596 |
1010 |
120 |
61 | |||
Information:

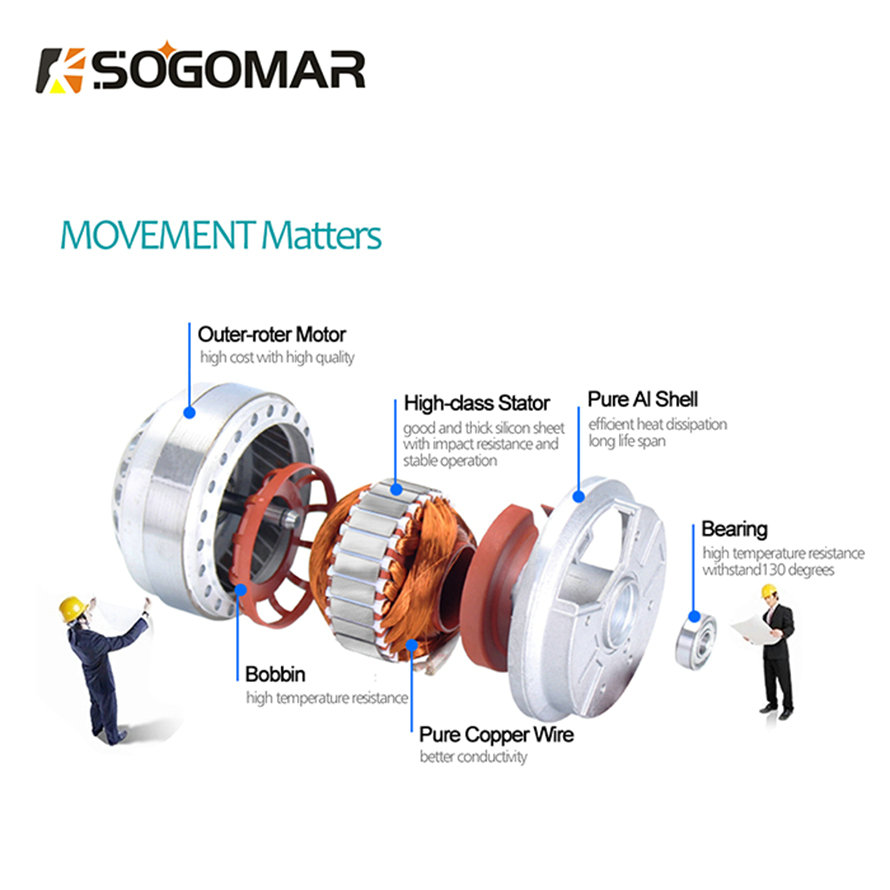

Motor: External rotor motor structure. Impedance protect
Frame: Aluminium die-casting, surfaces is finished by anti-corrosion treatment with primary color or black electrophoresis anti-corrosion treatment
Impeller: Metal impellers are welded to motor rotor, and surface is finished by black electrophoresis anti-corrosion treatment
Operation Temperature/Humidity Range: Temperature -30ºC ~ +90ºC Humidity 0% ~ 95%
Protection: Motor Internal with automatic recovery thermal protector
Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
insulting system: Design according to IEC61858 Grade F
Protecting Grade: IP44
Rotation Direction of Blades: CCW seen from the front impellers
Unit Weight: 2.2kg

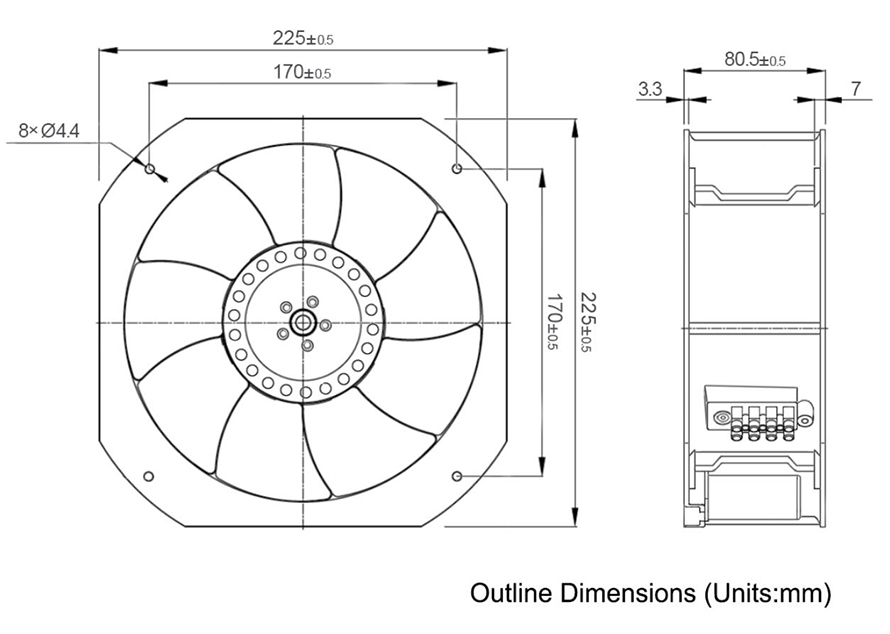

Dimensions:
