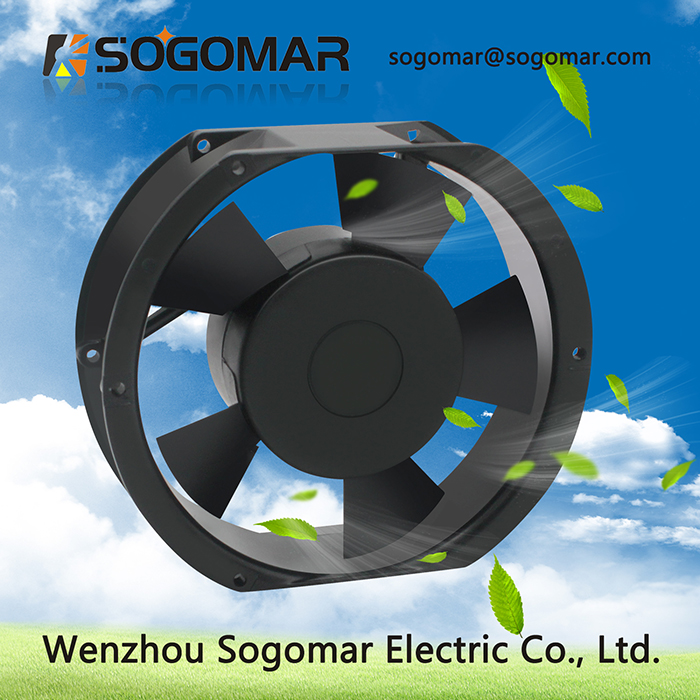

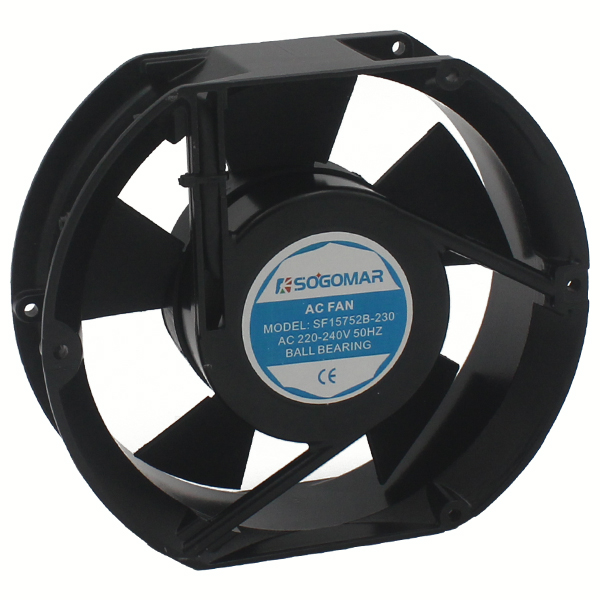

    SF15752
    SF15752
    Category:AC AXIAL FAN - PLASTIC IMPELLERS

    Brief description

    SF15752
    Size: 172x150x52mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Black
    Packing: 38*32.5*19.5cm,12PCS/Carton,13kgs

  • Brief description
  • SF15752
    Size: 172x150x52mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Black
    Packing: 38*32.5*19.5cm,12PCS/Carton,13kgs
    • Size: 172x150x52mm

      Parameters:



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM        m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SF15752BL-1

      115

      50

      0.34

      25

      2500

      130

      220

      80

      50

      ----

      60

      0.32

      23

      2700

      142

      240

      100

      52

      SF15752BHL-1

      115

      50

      0.48

      41

      2550

      237

      402

      160

      55

      ----

      60

      0.46

      38

      2800

      271

      460

      180

      57

      SF15752BL-2

      230

      50

      0.19

      26

      2500

      130

      220

      80

      50

      ----

      60

      0.17

      24

      2700

      142

      240

      100

      52

      SF15752BHL-2

      230

      50

      0.17

      28

      2550

      237

      402

      160

      55

      ----

      60

      0.18

      30

      2800

      271

      460

      180

      57

      SF15752BHL-3

      380

      50

      0.10

      31

      2600

      240

      410

      165

      58

      ----

      60

      0.17

      28

      2850

      275

      470

      185

      60



      Information:

      Motor: Shaded pole motor structure
      Net-cover: Aluminum alloy die-casting, surfaces is finished by black anti-corrosion treatment
      Impeller: Black plastic PBT UL94V-0
      Operation Temperature/Humidity Range: :-30°C to +60°C, 0%~95%
      Protection: Impedance Protected
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      Insulting system: Design according to IEC61858 Grade B
      Protecting Grade:IP34
      Rotation Direction of Blades:CCW seen from the front impellers
      Unit Weight:900g

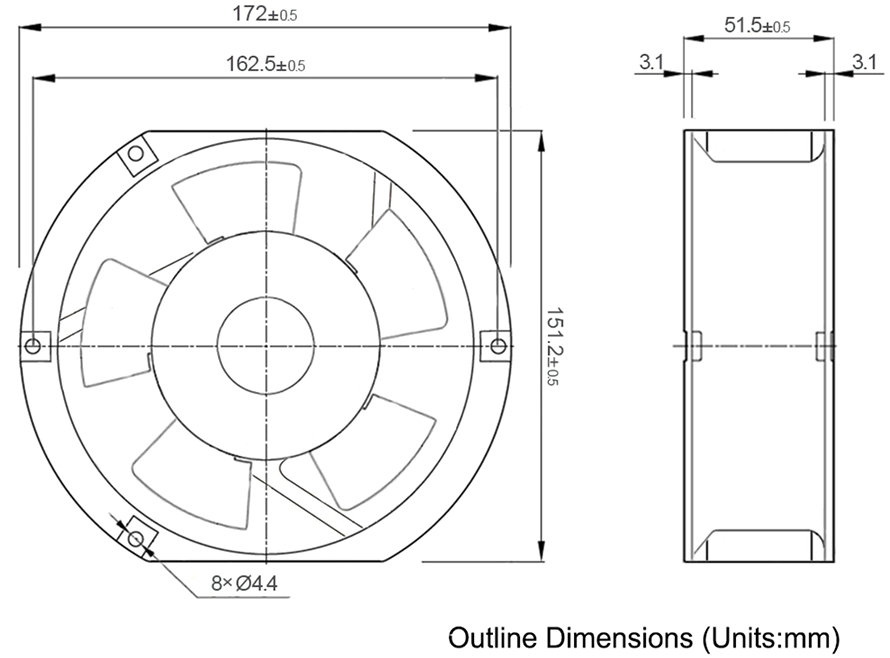

      Dimensions:
