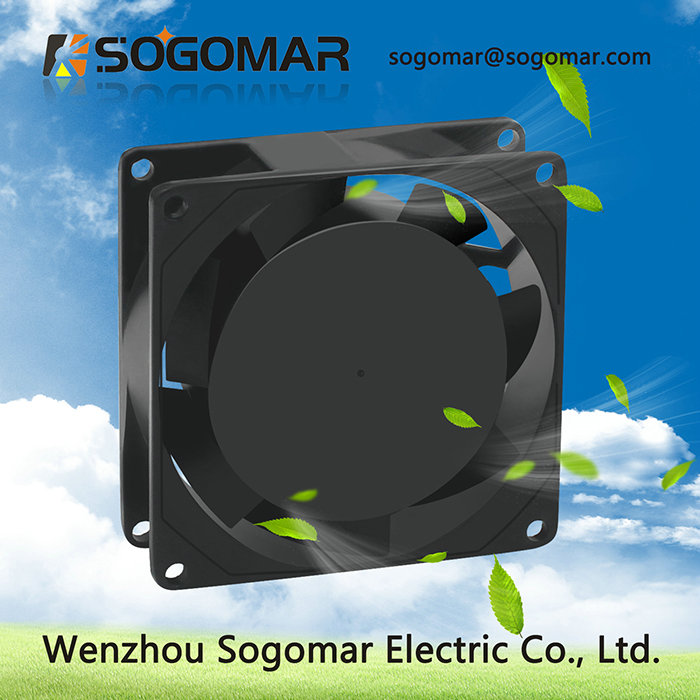

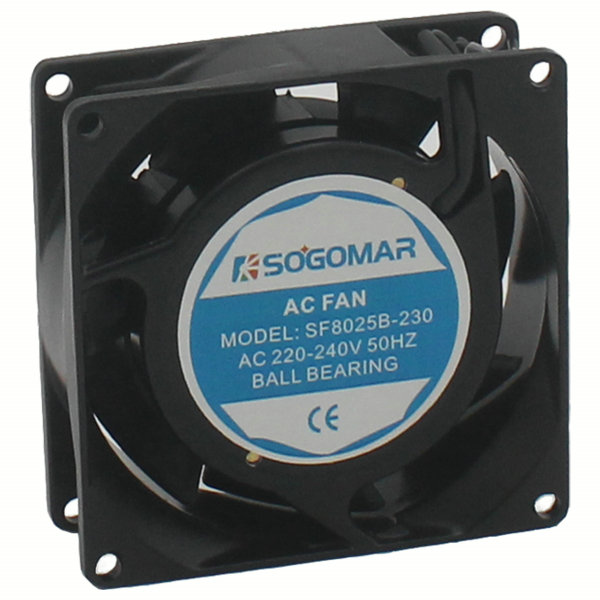

    SF8025
    SF8025
    Category:AC AXIAL FAN - PLASTIC IMPELLERS

    Brief description

    SF8025
    Size: 80x80x25mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing and sleeve bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Black
    Package: 56*19.5*19.5cm,60PCS/Carton,16kgs

  • Brief description
  • SF8025
    Size: 80x80x25mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing and sleeve bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Black
    Package: 56*19.5*19.5cm,60PCS/Carton,16kgs
    • Size: 80x80x25mm




      Parameters:



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM        m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SF8025SL-1

      115

      50

      0.12

      10

      2300

      17

      29

      33

      29

      ----

      60

      0.10

      9

      2700

      21

      35

      37

      33

      SF8025BL-1

      115

      50

      0.13

      13

      2400

      18

      31

      42

      30

      ----

      60

      0.15

      15

      2900

      22

      38

      45

      34

      SF8025SL-2

      230

      50

      0.07

      13

      2300

      17

      29

      33

      29

      ----

      60

      0.06

      11

      2700

      21

      35

      37

      33

      SF8025BL-2

      230

      50

      0.07

      13

      2400

      18

      31

      42

      30

      ----

      60

      0.06

      11

      2900

      22

      38

      45

      34

      SF8025BL-3

      380

      50

      0.08

      14

      2450

      20

      32

      43

      35

      ----

      60

      0.09

      12

      2900

      24

      40

      46

      36



      Information:

      Motor: Shaded pole motor structure
      Net-cover: Aluminum alloy die-casting, surfaces is finished by black anti-corrosion treatment
      Impeller: Black plastic PBT UL94V-0
      Operation Temperature/Humidity Range: :-30°C to +60°C, 0%~95%
      Protection: Impedance Protected
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      Insulting system: Design according to IEC61858 Grade B
      Protecting Grade:IP34
      Rotation Direction of Blades:CCW seen from the front impellers
      Unit Weight:245g



      Dimensions:
