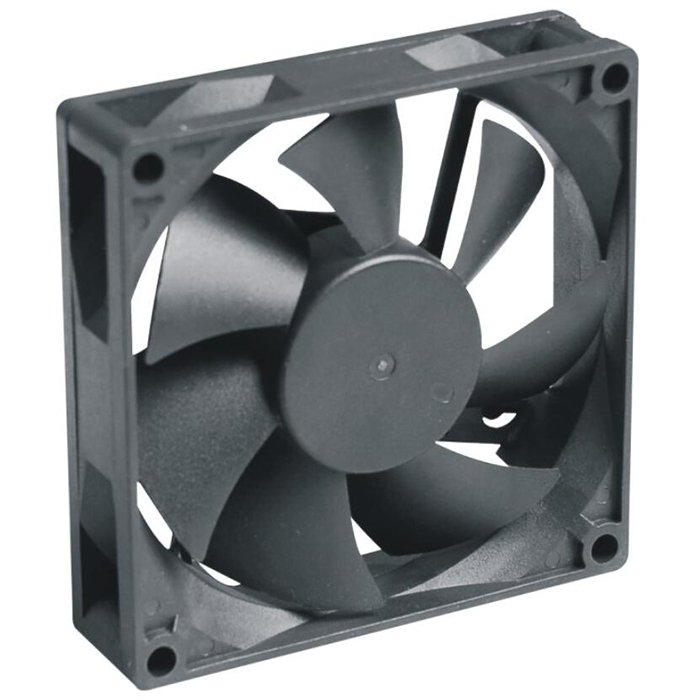

    SF7020
    SF7020
    Category：DC FAN

    Brief description

    Model: SF7020
    Size: 70x70x20mm
    Rated Voltage: 12VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 68g

  • Brief description
  • Model: SF7020
    Size: 70x70x20mm
    Rated Voltage: 12VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 68g
    • Size: 70x70x20mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF7020S-12L



      √

      12

      5.0 to 13.8

      2600

      24.08

      40.94

      14.31

      27

      SF7020S-12M



      √

      5.0 to 13.8

      3200

      29.16

      49.57

      16.86

      32

      SF7020S-12H



      √

      5.0 to 13.8

      3800

      35.42

      60.21

      18.82

      37

      SF7020B-12HH

      √



      5.0 to 13.8

      4400

      40.43

      68.73

      16.86

      41

      SF7020B-12VH

      √



      5.0 to 13.8

      5000

      46.86

      79.66

      21.08

      44



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 68g

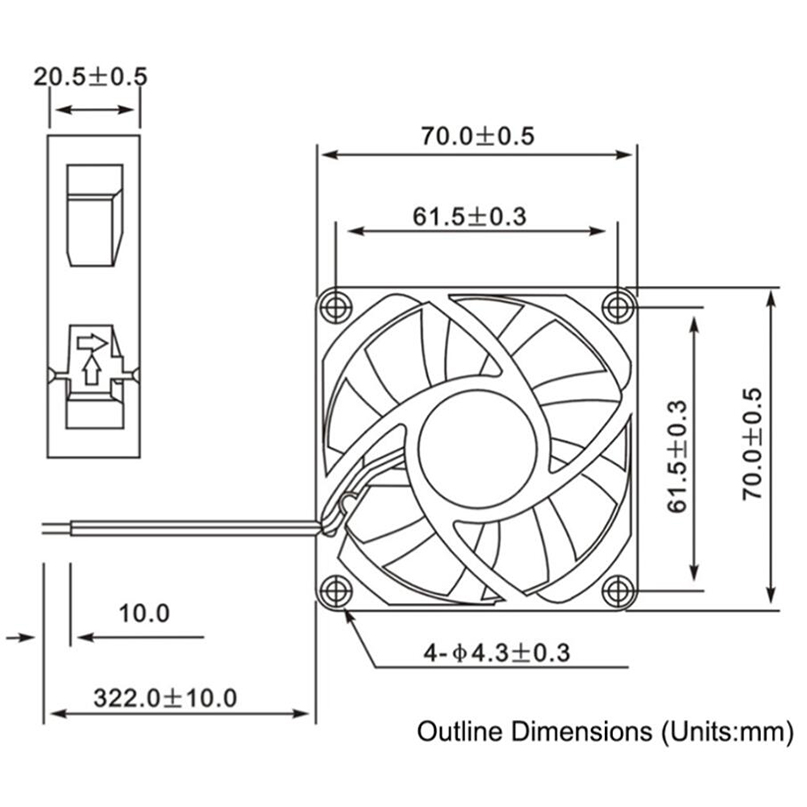

      Dimensions:
