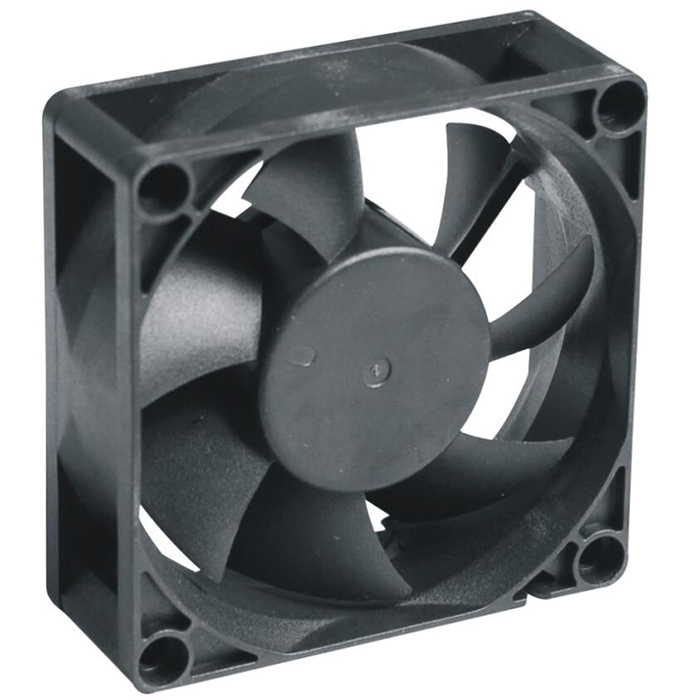

    SF7025
    SF7025
    Category：DC FAN

    Brief description

    Model: SF7025
    Size: 70x70x25mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 40g

  • Brief description
  • Model: SF7025
    Size: 70x70x25mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 40g

    • Size: 70x70x25mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF7025B(S)-12L

      √

      √

      12

      0.13

      3000

      24.00

      40.80

      25.98

      31

      SF7025B(S)-12M

      √

      √

      0.20

      3500

      27.93

      47.48

      37.74

      36

      SF7025B(S)-12H

      √

      √

      0.25

      4000

      32.02

      54.43

      42.25

      40

      SF7025B(S)-12HH

      √

      √

      0.35

      4500

      36.12

      61.40

      47.05

      42

      SF7025B(S)-24L

      √

      √

      24

      0.08

      3000

      24.00

      40.80

      25.98

      31

      SF7025B(S)-24M

      √

      √

      0.12

      3500

      27.93

      47.48

      37.74

      36

      SF7025B(S)-24H

      √

      √

      0.15

      4000

      32.02

      54.43

      42.25

      40

      SF7025B(S)-24HH

      √

      √

      0.20

      4500

      36.12

      61.40

      47.05

      42



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 40

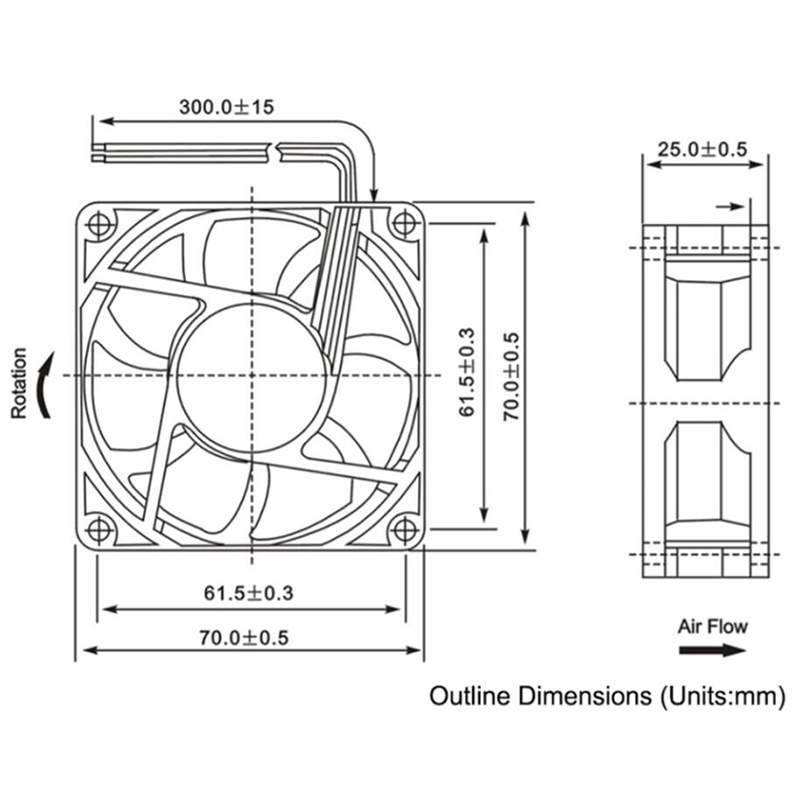

      Dimensions:
