    SF8015
    SF8015
    Category：DC FAN

    Brief description

    Model: SF8015
    Size: 80x80x15mm
    Rated Voltage: 5VDC, 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 60g

  • Brief description
  • Model: SF8015
    Size: 80x80x15mm
    Rated Voltage: 5VDC, 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 60g

    • Size: 80x80x15mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF8015B(S)-5L

      √

      √

      5

      0.14

      2000

      22.48

      38.22

      14.02

      23

      SF8015B(S)-5M

      √

      √

      0.18

      2500

      27.87

      47.38

      21.37

      28

      SF8015B(S)-5H

      √

      √

      0.26

      3000

      33.96

      57.73

      28.13

      32

      SF8015B(S)-12L

      √

      √

      12

      0.10

      2000

      22.48

      38.22

      14.02

      23

      SF8015B(S)-12M

      √

      √

      0.14

      2500

      27.87

      47.38

      21.37

      28

      SF8015B(S)-12H

      √

      √

      0.16

      3000

      33.96

      57.73

      28.13

      32

      SF8015B(S)-12HH

      √

      √

      0.30

      4000

      49.22

      83.67

      44.11

      40

      SF8015B(S)-24L

      √

      √

      24

      0.10

      2000

      22.48

      38.22

      14.02

      23

      SF8015B(S)-24H

      √

      √

      0.15

      3000

      33.96

      17.34

      28.13

      32



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 60g

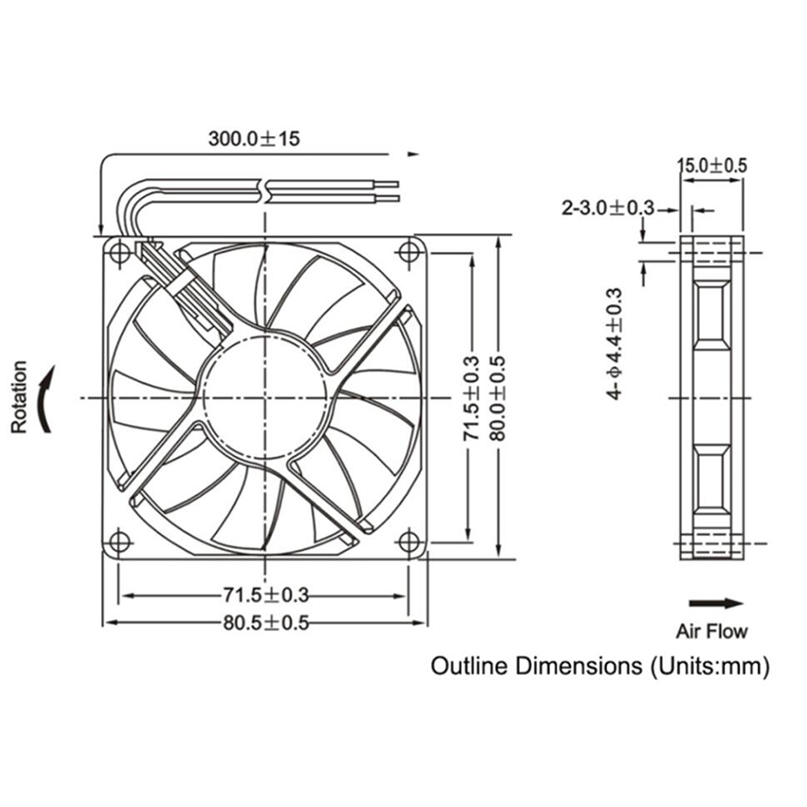

      Dimensions:
