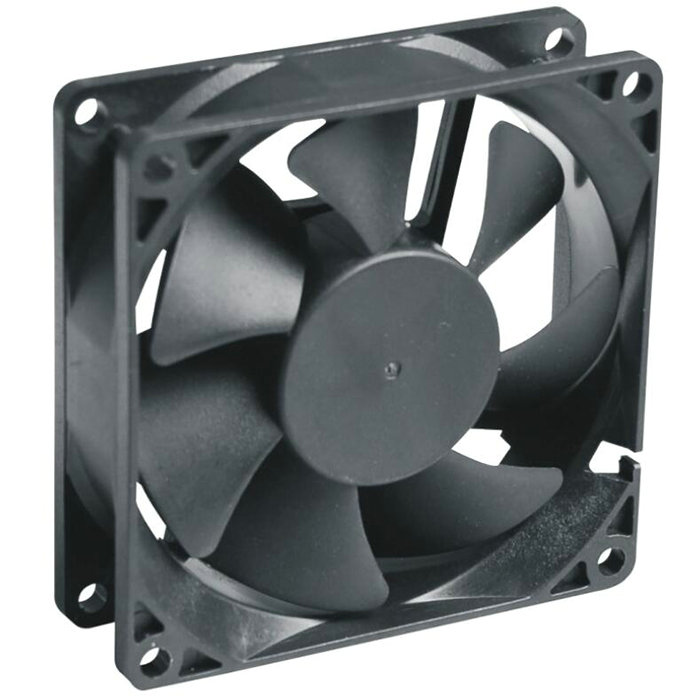

    SF8025
    SF8025
    Category：DC FAN

    Brief description

    Model: SF8025
    Size: 80x80x25mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 76g

  • Brief description
  • Model: SF8025
    Size: 80x80x25mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 76g

    • Size: 80x80x25mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF8025B(S)-12L

      √

      √

      12

      0.14

      2000

      26.52

      45.08

      16.86

      22

      SF8025B(S)-12M

      √

      √

      0.16

      2500

      33.56

      57.05

      21.17

      26

      SF8025B(S)-12H

      √

      √

      0.30

      3000

      41.05

      69.79

      32.15

      30

      SF8025B(S)-12HH

      √

      √

      0.40

      4000

      55.83

      94.91

      60.88

      38

      SF8025B(S)-24L

      √

      √

      24

      0.10

      2000

      26.52

      45.08

      16.86

      22

      SF8025B(S)-24H

      √

      √

      0.15

      3000

      41.05

      69.79

      32.15

      30



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 76g



      Dimensions:
