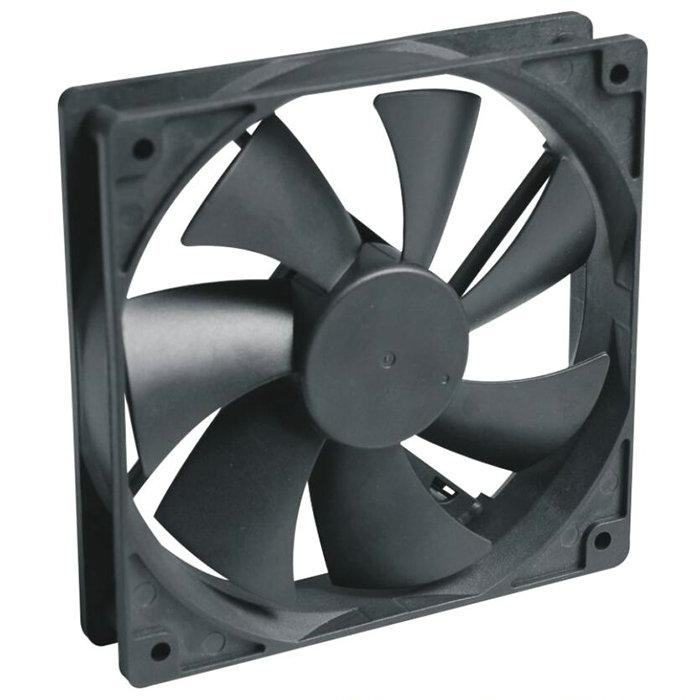

Brief description
Model: SF12025
Size: 120x120x25mm
Rated Voltage: 12VDC, 24VDC
Bearing Type: Ball Bearing and Sleeve Bearing
Frame and Impeller: Black Plastic PBT UL94V-0
Lead Wires: UL Type (+)Red (-)Black
Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
Unit Weight: 130g
Size: 120x120x25mm
|
Type |
Bearing Type |
Rated Voltage |
Current |
Speed |
Max Air Flow |
Static Pressure |
Noise | ||
|
SF12025B(S)-12L |
√ |
√ |
12 |
0.18 |
1700 |
72.16 |
122.7 |
20.39 |
32 |
|
SF12025B(S)-12M |
√ |
√ |
0.23 |
2000 |
81.12 |
137.9 |
26.17 |
35 | |
|
SF12025B(S)-12H |
√ |
√ |
0.40 |
2400 |
99.45 |
169.1 |
36.47 |
43 | |
|
SF12025B-12HH |
√ |
|
0.75 |
3800 |
130.66 |
222.1 |
63.72 |
56 | |
|
SF12025B(S)-24L |
√ |
√ |
24 |
0.12 |
1700 |
72.16 |
122.7 |
20.39 |
32 |
|
SF12025B(S)-24M |
√ |
√ |
0.16 |
2000 |
81.12 |
137.9 |
26.17 |
35 | |
|
SF12025B(S)-24H |
√ |
√ |
0.30 |
2400 |
99.45 |
169.1 |
36.47 |
43 | |
|
SF12025B-24HH |
√ |
|
0.45 |
3800 |
130.66 |
222.1 |
63.72 |
56 | |
Information:
Frame and impellers: Black Plastic PBT UL94V-0
Lead Wires: UL Type(+)red (-)black
Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
Unit Weight: 130g

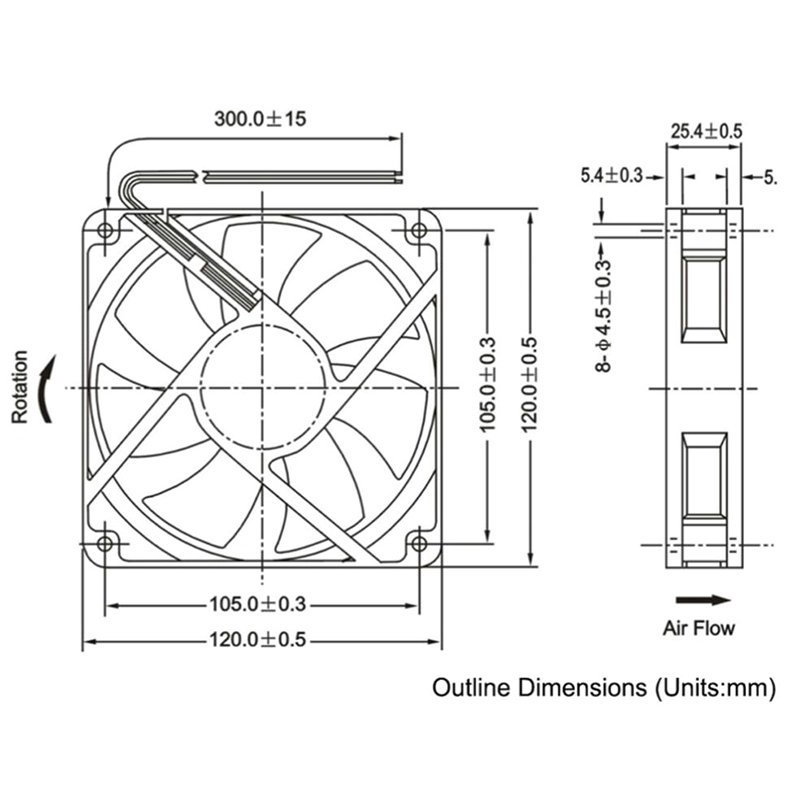

Dimensions:
