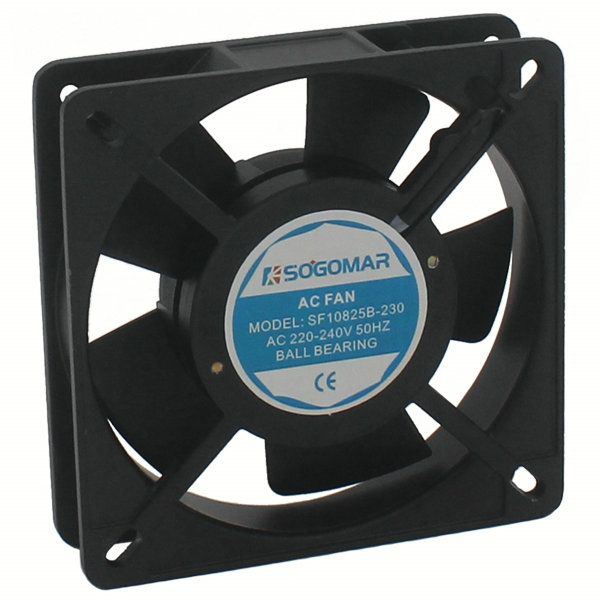

    SF10825
    SF10825
    Category：AC AXIAL FAN - PLASTIC IMPELLERS

    Brief description

    SF10825
    Size: 108x108x25mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing and sleeve bearing
    Connection: leadwire or terminals

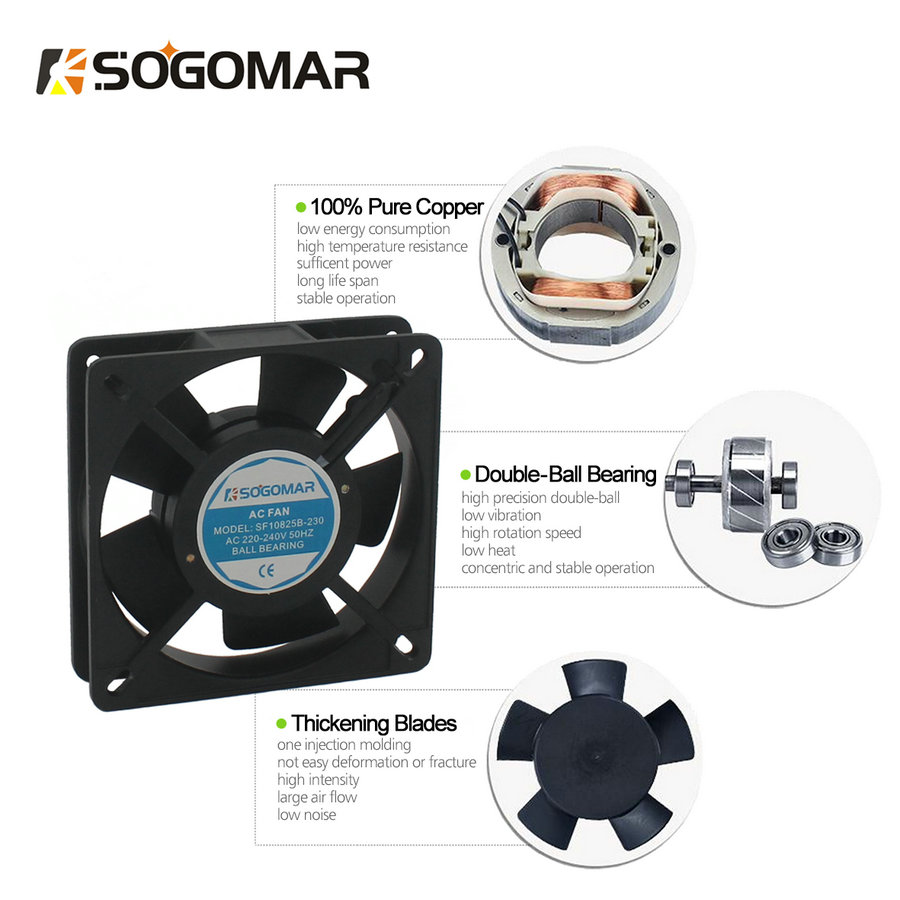

    Material: Alu frame, plastic blades, copper coil.
    Color: Black
    Package: 36*33*37cm,24PCS/Carton,22kg

  • Brief description
  • SF10825
    Size: 108x108x25mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing and sleeve bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Black
    Package: 36*33*37cm,24PCS/Carton,22kg

    • Size: 108x108x25mm

      Parameters:



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM        m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SF10825SL-1 115 50 0.20 20 2300 75 128 40 28 ----
      60 0.21 21 2400 85 145 52 32
      SF10825BL-1 115 50 0.20 20 2300 75 128 40 28 ----
      60 0.21 21 2400 85 145 52 32
      SF10825SL-2 230 50 0.10 18 2300 75 128 40 28 ----
      60 0.11 19 2400 85 145 52 32
      SF10825BL-2 230 50 0.06 17 2300 75 128 40 28 ----
      60 0.07 18 2400 85 145 52 32



      Information:

      Motor: Shaded pole motor structure
      Net-cover: Aluminum alloy die-casting, surfaces is finished by black anti-corrosion treatment
      Impeller: Black plastic PBT UL94V-0
      Operation Temperature/Humidity Range: ：-30°C to +60°C, 0%~95%
      Protection: Impedance Protected
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      Insulting system: Design according to IEC61858 Grade B
      Protecting Grade:IP34
      Rotation Direction of Blades:CCW seen from the front impellers
      Unit Weight：270g

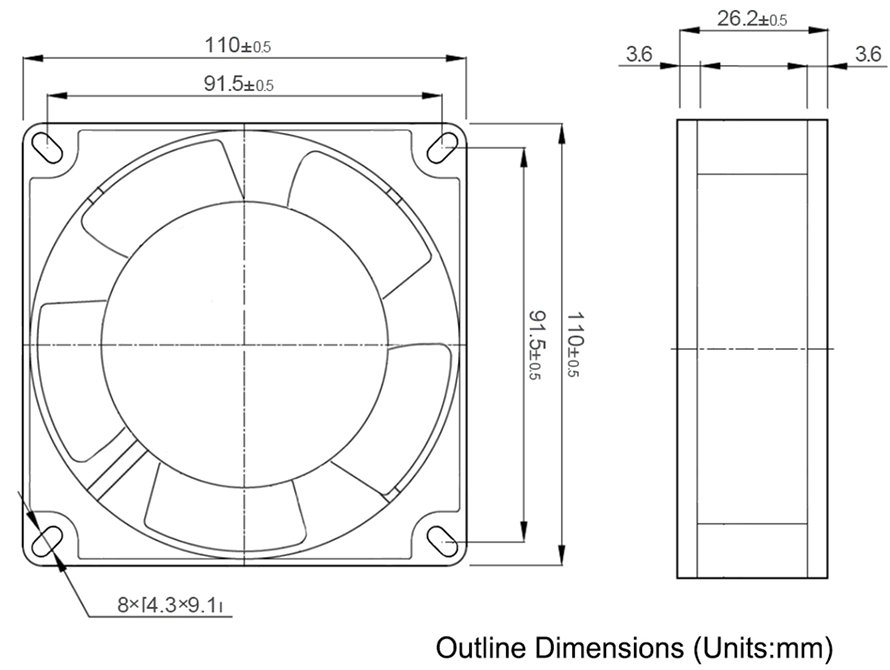

      Dimensions:
