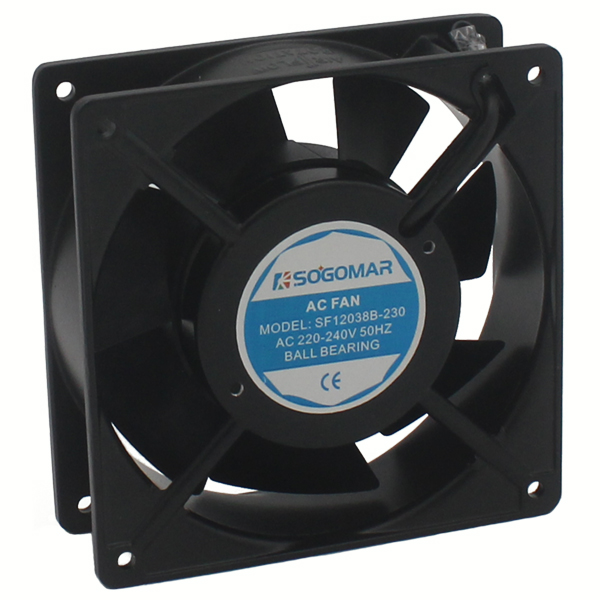

    SF12038
    SF12038
    Category:AC AXIAL FAN - PLASTIC IMPELLERS

    Brief description

    SF12038
    Size: 120x120x38mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing and sleeve bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Black or silver
    Package: 50*26*27cm,40PCS/Carton,21kgs

  • Brief description
  • SF12038
    Size: 120x120x38mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing and sleeve bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Black or silver
    Package: 50*26*27cm,40PCS/Carton,21kgs
    • Size: 120x120x38mm

      Parameters:



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM        m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SF12038SL-1

      115

      50

      0.24

      18

      2500

      85

      145

      51

      34

      ----

      60

      0.20

      15

      2800

      100

      170

      63

      37

      ----

      SF12038BL-1

      115

      50

      0.24

      18

      2500

      85

      145

      51

      34

      ----

      60

      0.20

      15

      2800

      100

      170

      63

      37

      ----

      SF12038SL-2

      230

      50

      0.12

      19

      2500

      85

      145

      51

      34

      ----

      60

      0.10

      14

      2700

      95

      160

      63

      37

      ----

      SF12038BL-2

      230

      50

      0.12

      19

      2500

      85

      145

      51

      34

      ----

      60

      0.10

      14

      2700

      95

      160

      63

      37

      ----

      SF12038SL-3

      380

      50

      0.08

      20

      2500

      82

      140

      50

      33

      ----

      60

      0.07

      18

      2780

      98

      165

      62

      36

      ----

      SF12038BL-3

      380

      50

      0.07

      18

      2500

      85

      145

      51

      34

      ----

      60

      0.06

      16

      2800

      100

      170

      63

      37

      ----



      Information:

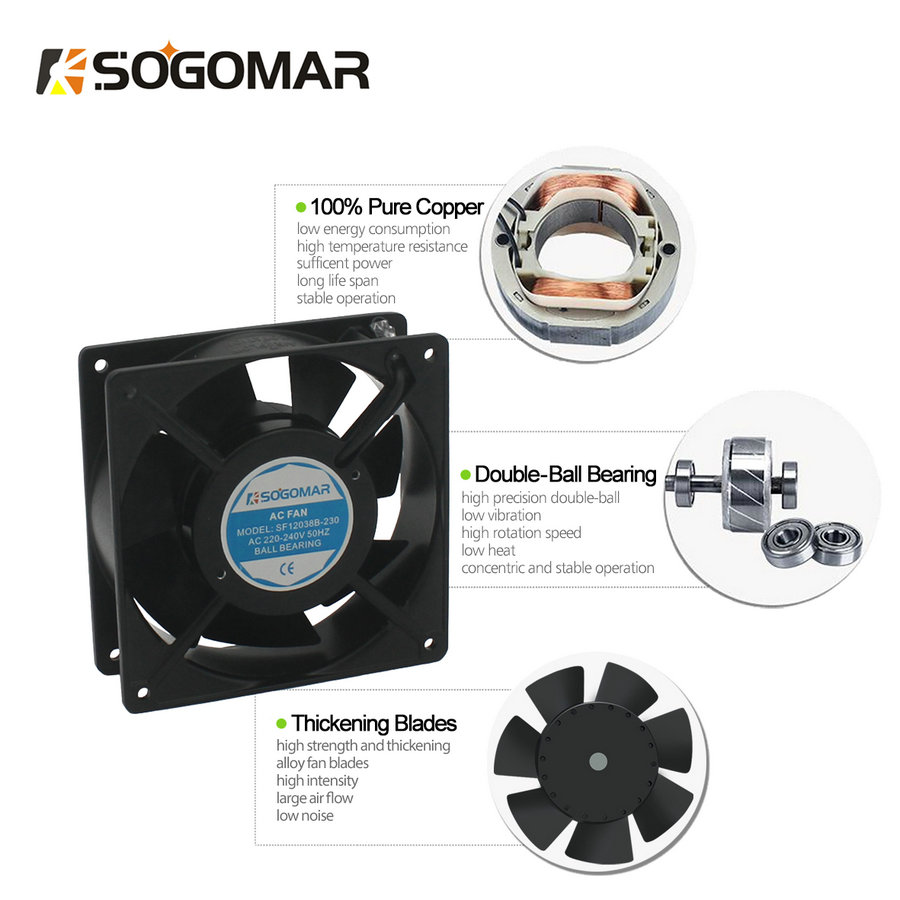

      Motor: Shaded pole motor structure
      Net-cover: Aluminum alloy die-casting, surfaces is finished by black anti-corrosion treatment
      Impeller: Black plastic PBT UL94V-0
      Operation Temperature/Humidity Range: :-30°C to +60°C, 0%~95%
      Protection: Impedance Protected
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      Insulting system: Design according to IEC61858 Grade B
      Protecting Grade:IP34
      Rotation Direction of Blades:CCW seen from the front impellers
      Unit Weight:510g

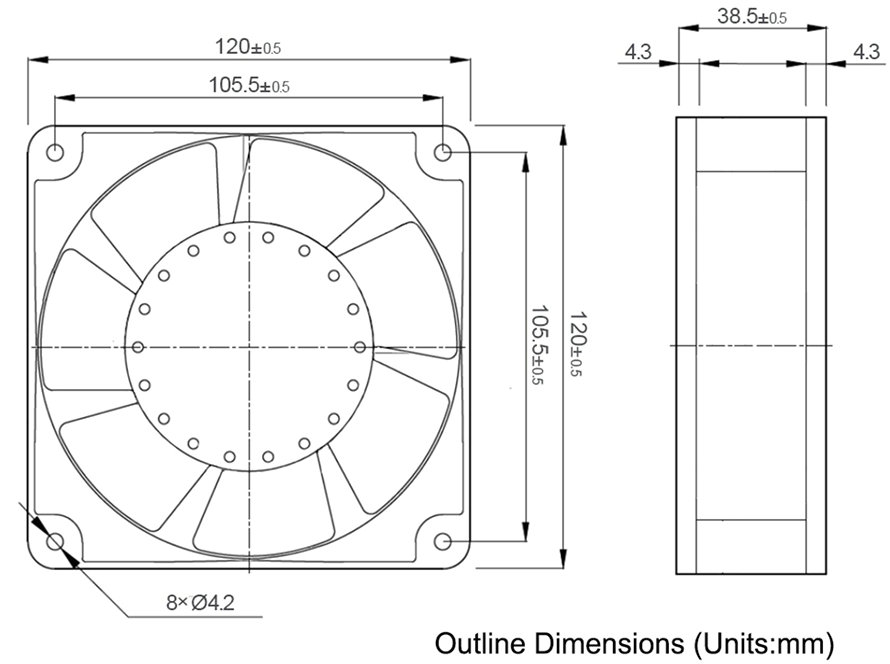

      Dimensions:
