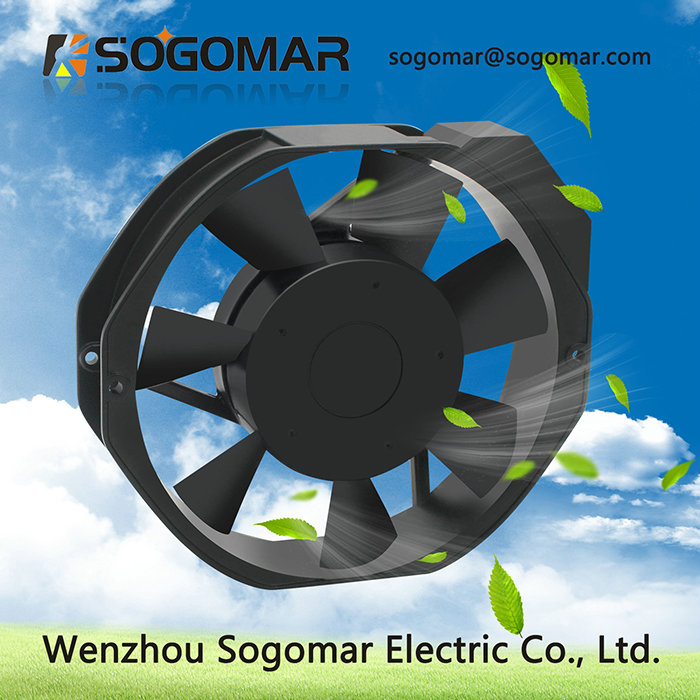

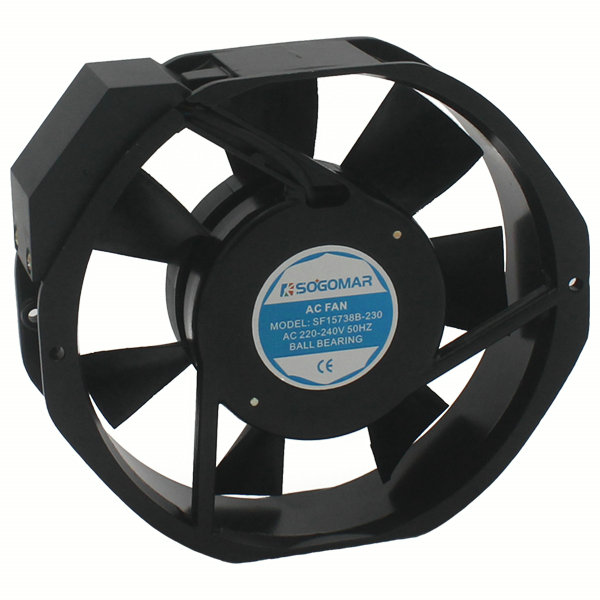

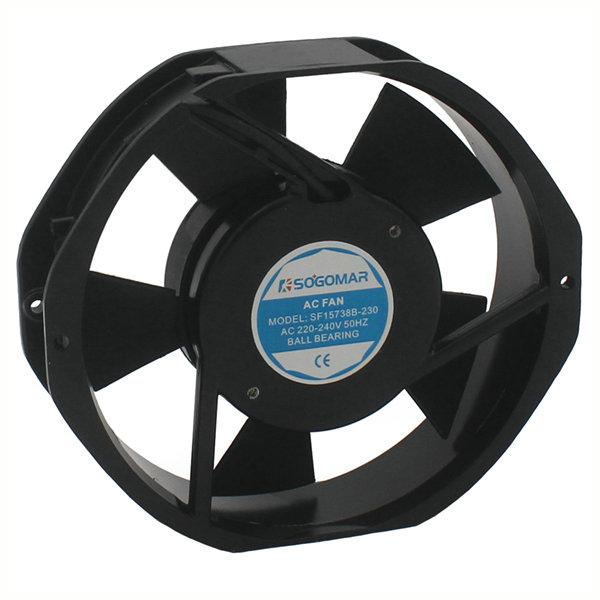

    SF15738
    SF15738
    Category：AC AXIAL FAN - PLASTIC IMPELLERS

    Brief description

    SF15738
    Size: 172x150x38mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Black
    Package: 37.5*25.5*33.5cm, 20PCS/Carton, 18kgs

  • Brief description
  • SF15738
    Size: 172x150x38mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Black
    Package: 37.5*25.5*33.5cm, 20PCS/Carton, 18kgs

    • Size: 172x150x38mm

      Parameters:



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM        m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SF15738BL-1 115 50 0.25 32 2500 214 363 105 56 3.3/250
      60 0.25 32 2900 250 390 115 59

      SF15738BL-2

      		230 50 0.14 32 2500 214 363 106 56 1/630
      60 0.14 32 2900 250 390 115 59



      Information:

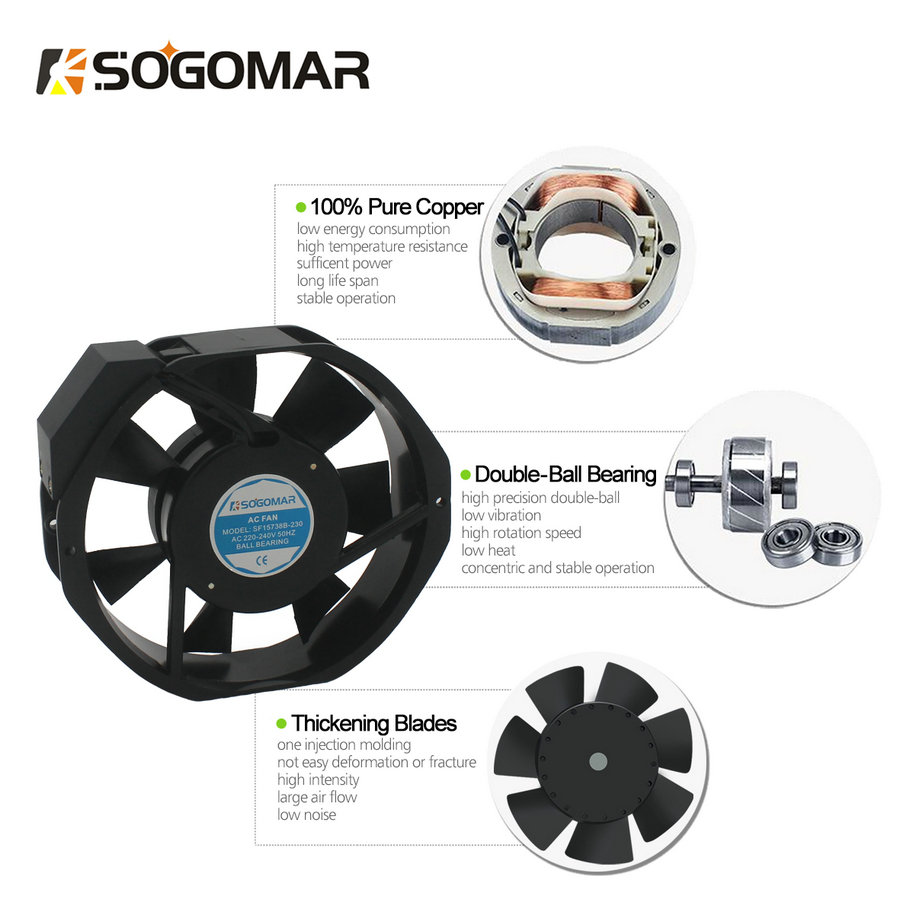

      Motor: Shaded pole motor structure
      Net-cover: Aluminum alloy die-casting, surfaces is finished by black anti-corrosion treatment
      Impeller: Black plastic PBT UL94V-0
      Operation Temperature/Humidity Range: ：-30°C to +60°C, 0%~95%
      Protection: Impedance Protected
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      Insulting system: Design according to IEC61858 Grade B
      Protecting Grade:IP34
      Rotation Direction of Blades:CCW seen from the front impellers
      Unit Weight：700g

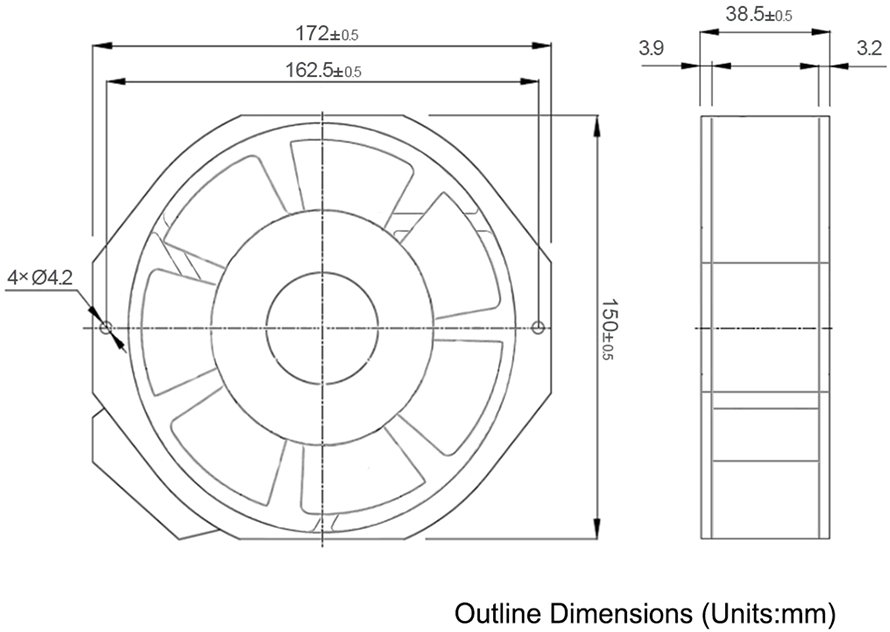

      Dimensions:
