    SFC133-41S
    SFC133-41S
    Category：CENTRIFUGAL FAN

    Brief description

    Centrifugal Fan
    SFC133-2P41S
    Dia: 133mm
    Voltage: 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Number of pole: 2 pole
    Outlet height: 41mm
    Material: plastic blades, copper coil
    Color: Black or white

  • Brief description
  • Centrifugal Fan
    SFC133-2P41S
    Dia: 133mm
    Voltage: 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Number of pole: 2 pole
    Outlet height: 41mm
    Material: plastic blades, copper coil
    Color: Black or white

    • Centrifugal Fan (Dia:133mm)



      Parameters:



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM      m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SFC133-2P41S-1

      115

      50

      0.51

      38

      2650

      159

      270

      180

      52

      -----

      60

      0.42

      35

      2700

      177

      300

      240

      55

      SFC133-2P41S-2

      230

      50

      0.25

      41

      2550

      159

      270

      180

      52

      -----

      60

      0.23

      40

      2670

      177

      300

      240

      55



      Information:

      Motor：Cage type capacitor structure external rotor motor

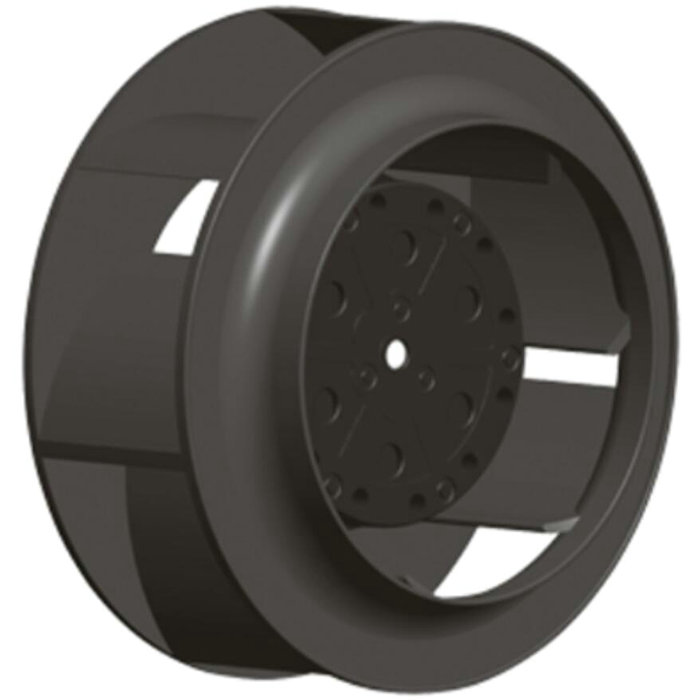

      Impeller：Black PA nylon one-time injection moulding

      Operation Temperature/Humidity Range: -30℃~+65℃ 0%~95%

      Protection：Motor Internal with automatic recovery thermal protector

      Withstand Voltage：AC 1800V, 1 min at 0.5mA, 50/60Hz

      Insulation Grade：Design according to IEC61858 Grade

      Protection Grade：IP44

      Unit Weight: 660g

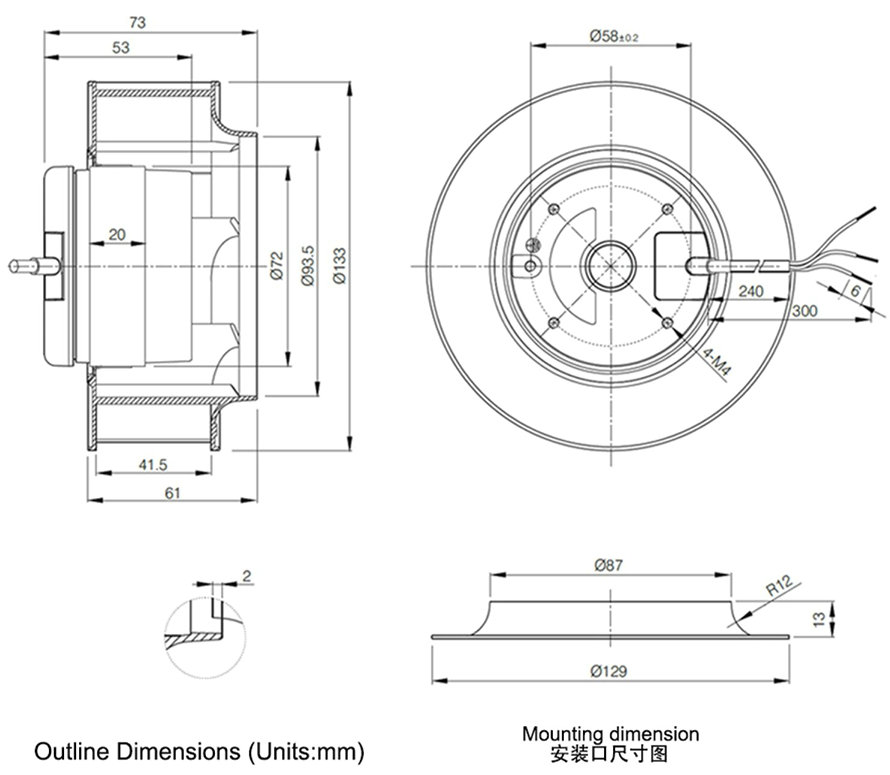

      Dimensions:
