    SFC175-45
    SFC175-45
    Category：CENTRIFUGAL FAN

    Brief description

    Centrifugal Fan
    SFC175-2P445
    Dia: 175mm
    Voltage: 110-120VAC, 220-240VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Number of pole: 2 pole
    Outlet height: 45mm
    Material: plastic blades, copper coil
    Color: Black or white

  • Brief description
  • Centrifugal Fan
    SFC175-2P445
    Dia: 175mm
    Voltage: 110-120VAC, 220-240VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Number of pole: 2 pole
    Outlet height: 45mm
    Material: plastic blades, copper coil
    Color: Black or white

    • Centrifugal Fan (Dia:175mm)



      Parameters:



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM      m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SFC175-2P45-1

      115

      50

      0.57

      56

      2850

      324

      550

      280

      60

      4.0/250

      60

      0.53

      59

      3100

      348

      290

      370

      64

      SFC175-2P45-2

      230

      50

      0.27

      56

      2850

      324

      550

      280

      60

      1.5/450

      60

      0.28

      62

      3100

      348

      590

      370

      64



      Information:

      Motor：Cage type capacitor structure external rotor motor

      Impeller：Black PA nylon one-time injection moulding

      Operation Temperature/Humidity Range: -30℃~+65℃ 0%~95%

      Protection：Motor Internal with automatic recovery thermal protector

      Withstand Voltage：AC 1800V, 1 min at 0.5mA, 50/60Hz

      Insulation Grade：Design according to IEC61858 Grade

      Protection Grade：IP44

      Unit Weight: 1.24Kg

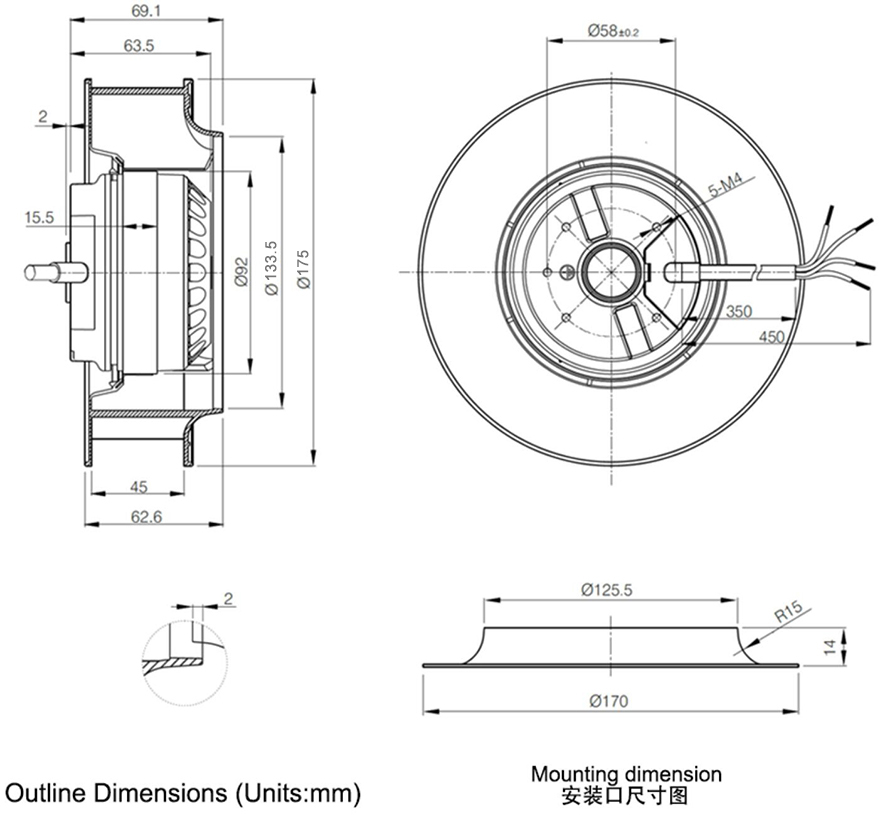

      Dimensions:
