    SFC355-60
    SFC355-60
    Category：CENTRIFUGAL FAN

    Brief description

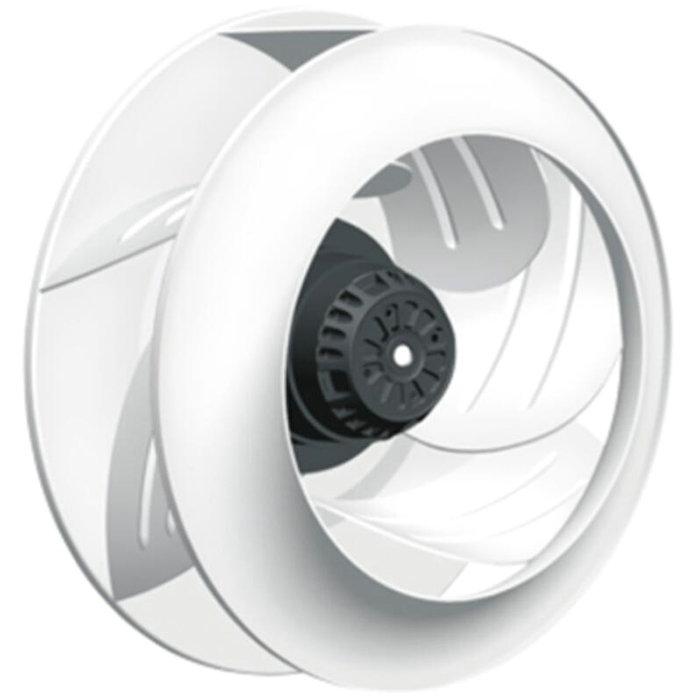

    Centrifugal Fan
    SFC355-4P60
    Dia: 355mm
    Voltage: 220-240VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Number of pole: 4 pole
    Outlet height: 60mm
    Material: plastic blades, copper coil
    Color: Black or white

  • Brief description
  • Centrifugal Fan
    SFC355-4P60
    Dia: 355mm
    Voltage: 220-240VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Number of pole: 4 pole
    Outlet height: 60mm
    Material: plastic blades, copper coil
    Color: Black or white

    • Centrifugal Fan (Dia:355mm)



      Parameters:

      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM      m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SFC355-4P60-2

      230

      50

      0.78

      170

      1380

      1505

      2550

      390

      66

      5.0/450

      60

      1.00

      230

      1550

      1711

      2900

      530

      69



      Information:

      Motor：Cage type capacitor structure external rotor motor

      Impeller：Black PA nylon one-time injection moulding

      Operation Temperature/Humidity Range: -30℃~+65℃ 0%~95%

      Protection：Motor Internal with automatic recovery thermal protector

      Withstand Voltage：AC 1800V, 1 min at 0.5mA, 50/60Hz

      Insulation Grade：Design according to IEC61858 Grade

      Protection Grade：IP44

      Unit Weight: 4.7g

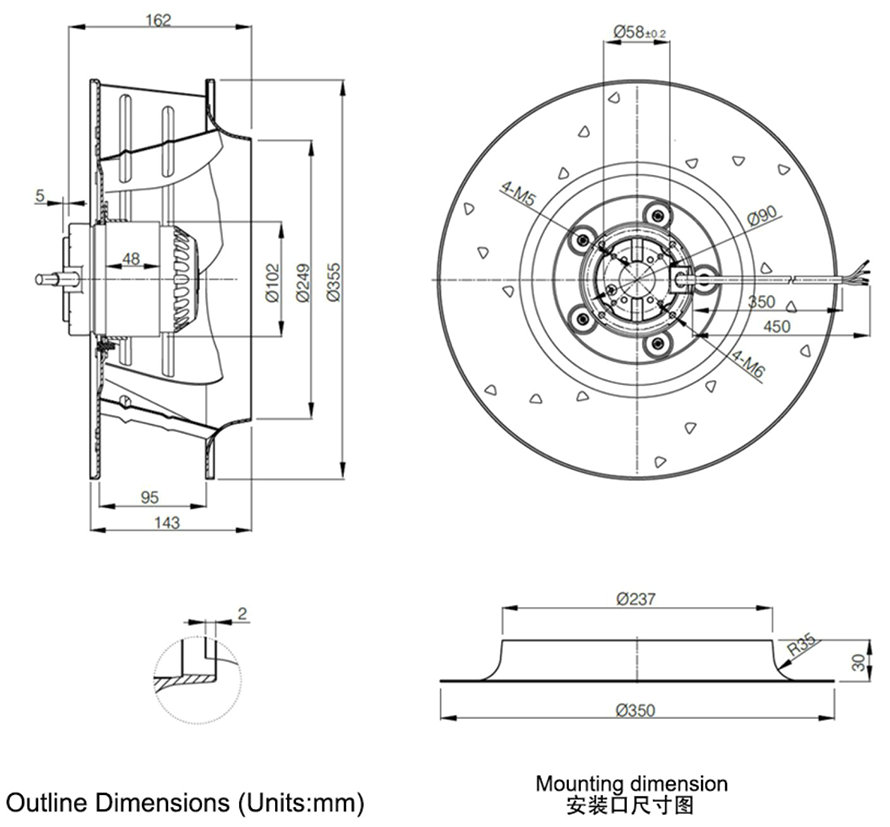

      Dimensions:
