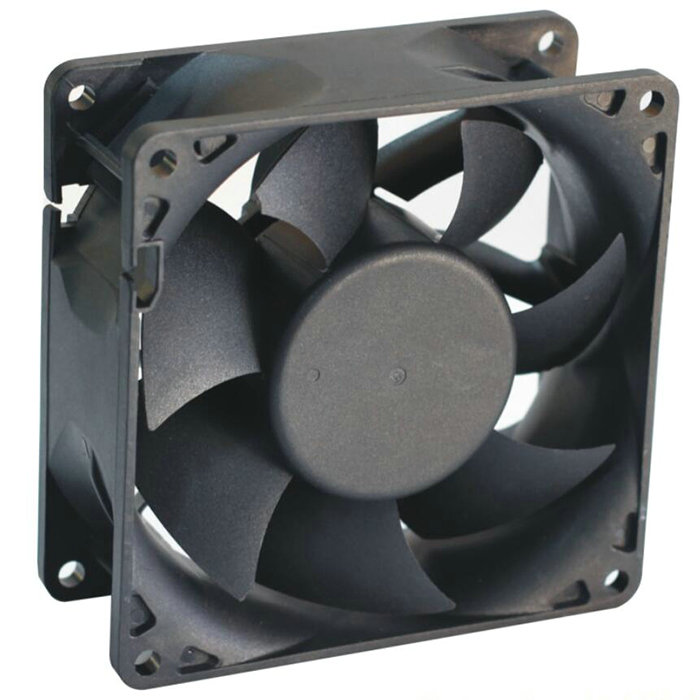

    SF9238
    SF9238
    Category:DC FAN

    Brief description

    Model: SF9238
    Size: 92x92x38mm
    Rated Voltage: 12VDC, 24VDC, 48VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 190g

  • Brief description
  • Model: SF9238
    Size: 92x92x38mm
    Rated Voltage: 12VDC, 24VDC, 48VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 190g
    • Size: 92x92x38mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF9238B-12L



      12

      0.71

      4400

      108

      183.6

      124.5

      53

      SF9238B-12M



      0.91

      4800

      118

      200.6

      147.0

      55

      SF9238B-12H



      1.33

      5400

      135

      229.5

      184.3

      59

      SF9238B-12HH



      2.20

      6000

      149

      253.3

      231.6

      62

      SF9238B-24L



      24

      0.33

      4400

      108

      183.6

      124.5

      53

      SF9238B-24M



      0.47

      4800

      118

      200.6

      147.0

      55

      SF9238B-24H



      0.65

      5400

      135

      229.5

      184.3

      59

      SF9238B-48L



      48

      0.18

      4400

      108

      183.6

      124.5

      53

      SF9238B-48M



      0.25

      4800

      118

      200.6

      147.0

      55

      SF9238B-48H



      0.35

      5400

      135

      229.5

      184.3

      59



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 190g

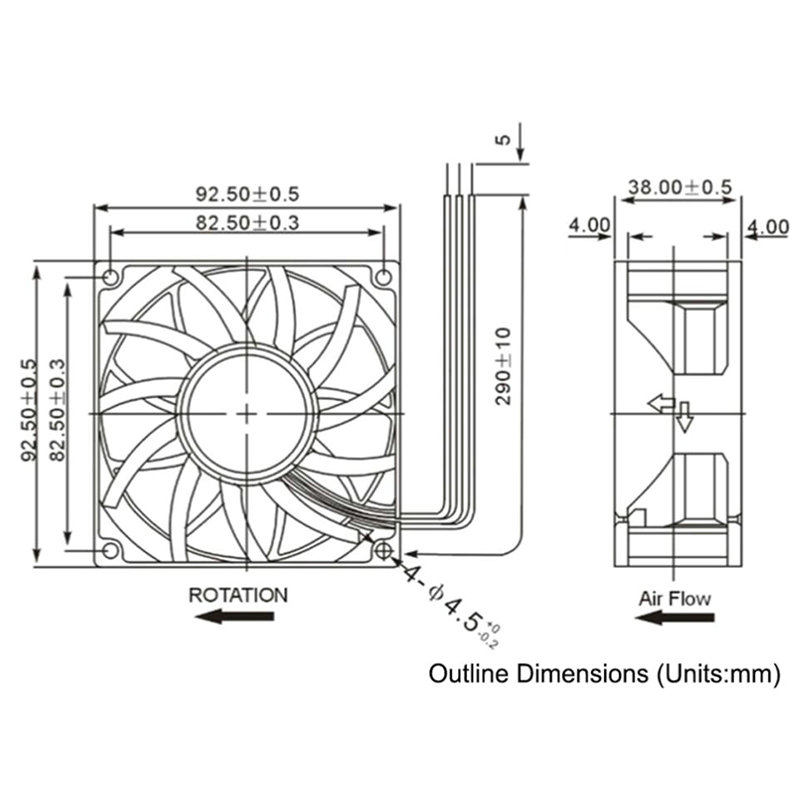

      Dimensions:
