Brief description
Model NO.: SFM300
Blade Material: Stainless Steel
Electric Current Type: AC
Certification: CE
Bearing: Ball Bearing
Usage: for Refrigerate, for Air Conditioner, for Manufa
Material: Aluminum Fan
Type: Axial Fan
Mounting: Wall Fan
Warantee: One Year Guarantee Time
Package: 2PC/CTN with Foam Inside, Then Pallet Package
Weight(Kg): 3.0
Specification: diameter 300mm

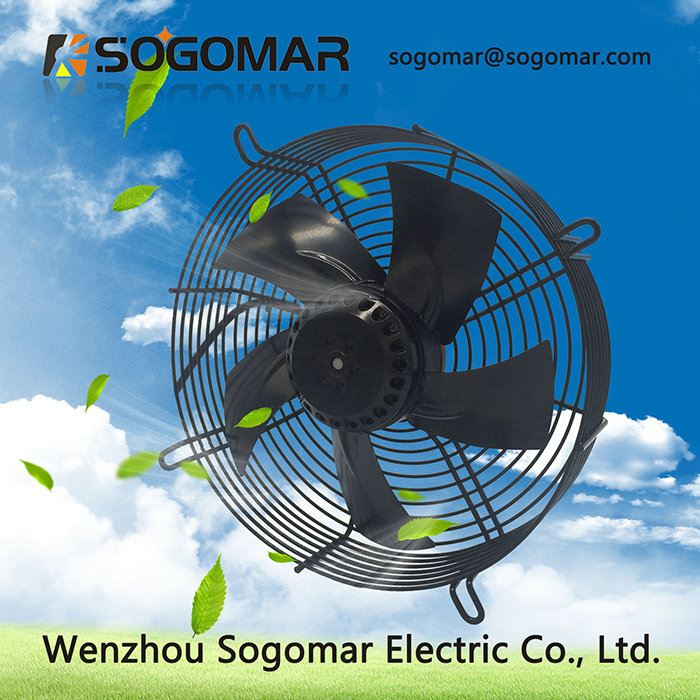

Ventilation Fan with External Rotor Motor, Metal Blades (Dia 300mm)
Parameters:
|
Type |
Rated Voltage |
Frequency |
Current |
Power |
Speed |
Max Air Flow |
Static Pressure |
Noise | |
|
SFM300-4P-2 |
230 |
50 |
0.32 |
67 |
1330 |
1120 |
1904 |
88 |
57 |
|
60 |
0.34 |
78 |
1460 |
1180 |
2006 |
57 |
60 | ||
|
SFM300-4P-3 |
380 |
50 |
0.32 |
114 |
1330 |
1120 |
1904 |
88 |
57 |
|
60 |
0.31 |
112 |
1460 |
1180 |
2006 |
57 |
60 | ||
Information:
Motor: Configuration of External rotor motors
Net-cover: Steel wire with black paint,anti-corrosion and anti-oxidization treatment
Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
Protection: Motor Internal with automatic recovery thermal protector
Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
Insulting system: Design according to IEC61858 Grade F
Protecting Grade: IP54
Unit Weight: 3.0kgs
Dimensions:
SP-5AG21
SP-2EA145
SFM15738
SF21071
