    350FZY
    350FZY
    Category：AC FAN - METAL IMPELLERS

    Brief description

    Motor: Configuration of External rotor motors
    Net-cover: Steel wire with black paint,anti-corrosion and anti-oxidization treatment
    Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
    Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
    Protection: Motor Internal with automatic recovery thermal protector
    Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
    Insulting system: Design according to IEC61858 Grade F
    Protecting Grade: IP54
    Unit Weight: 6kgs

  • Brief description
  • Motor: Configuration of External rotor motors
    Net-cover: Steel wire with black paint,anti-corrosion and anti-oxidization treatment
    Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
    Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
    Protection: Motor Internal with automatic recovery thermal protector
    Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
    Insulting system: Design according to IEC61858 Grade F
    Protecting Grade: IP54
    Unit Weight: 6kgs

    • Dia: 350mm

      Parameters:

      Type
      产品型号      		 Number of phases
      相数
      (P)

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM     m3/h

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      350FZY2-D 1 230 50 0.40 150 1350 1341 2280 66 4.0/400
      350FZY3-D 3 380 50 0.30 140 1350 1341 2280 66 ----
      350FZY4-D 1 380 50 0.40 140 1350 1341 2280 66 2.0/630





      Information:

      Motor: Configuration of External rotor motors
      Net-cover: Carbon steel with red paint, anti-corrosion and anti-oxidization treatment
      Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
      Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
      Protection: Motor Internal with automatic recovery thermal protector
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      Insulting system: Design according to IEC61858 Grade F
      Protecting Grade: IP54

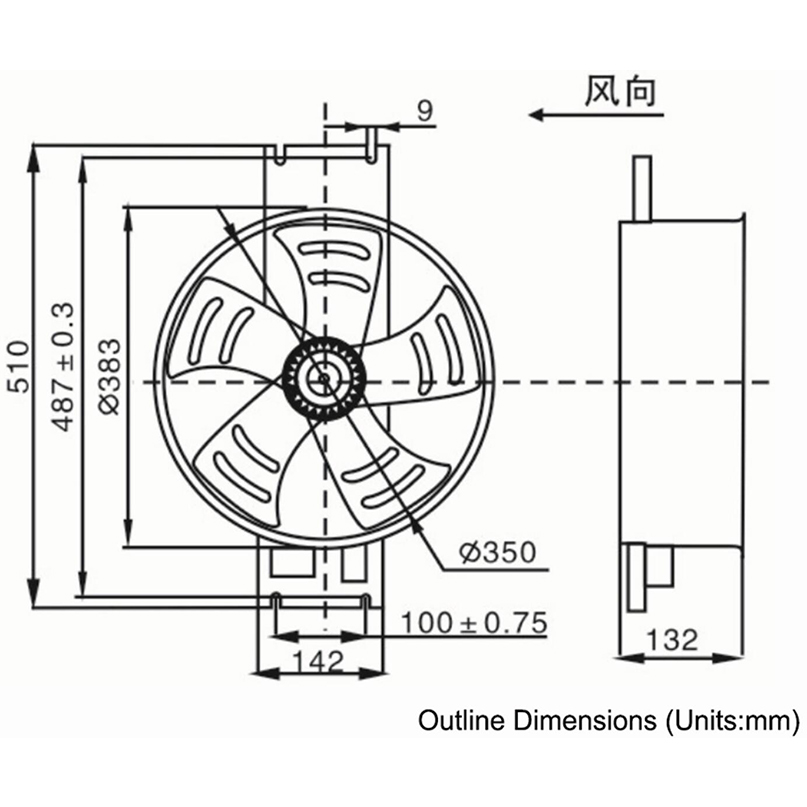

      Dimensions:
