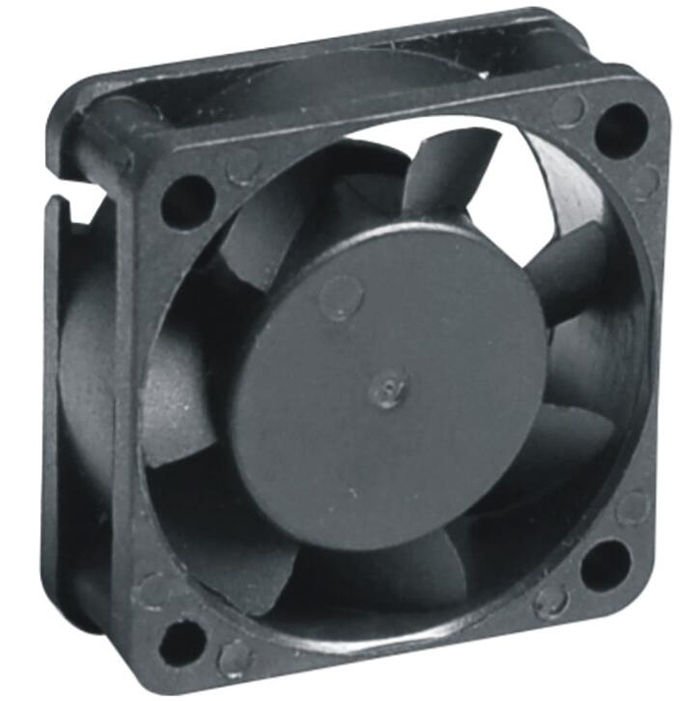

    SF4015
    SF4015
    Category：DC FAN

    Brief description

    Model: SF4015
    Size: 40x40x15mm
    Rated Voltage: 12VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 27g

  • Brief description
  • Model: SF4015
    Size: 40x40x15mm
    Rated Voltage: 12VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 27g
    • Size: 40x40x15mm



      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF4015B-12L

      √



      12

      0.07

      6000

      6.47

      11.00

      40.08

      26

      SF4015B-12M

      √



      0.09

      7000

      7.60

      12.92

      49.80

      32

      SF4015B-12H

      √



      0.11

      8000

      8.48

      14.42

      61.99

      36



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 15g

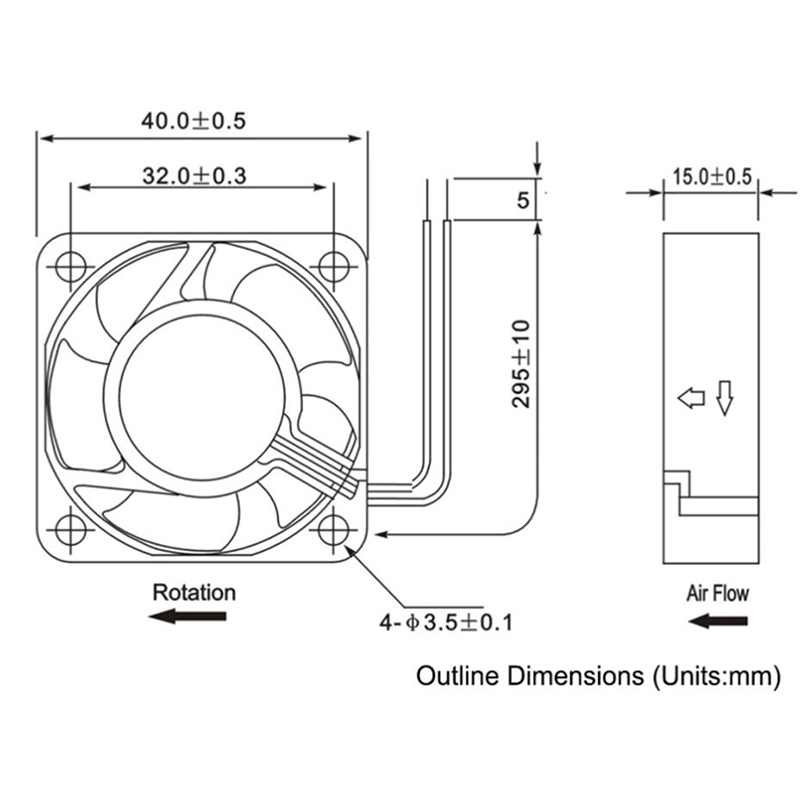

      Dimensions:
