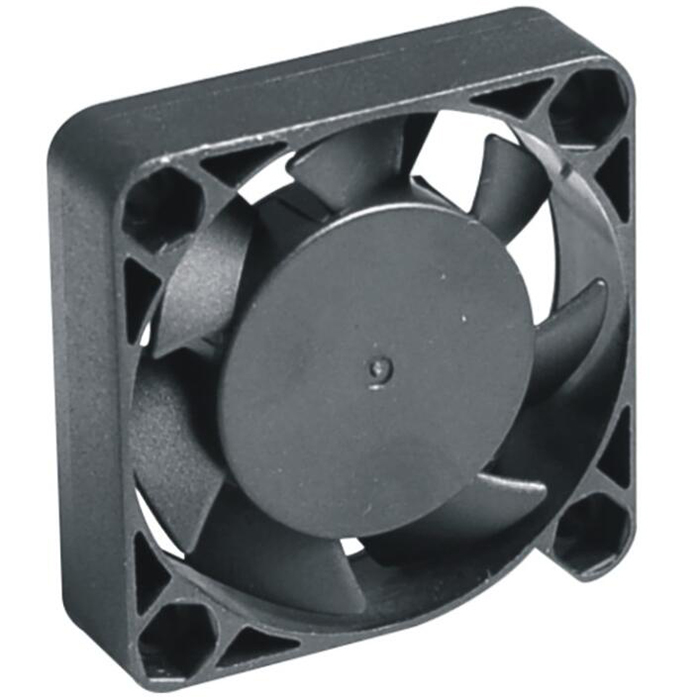

    SF4010
    SF4010
    Category:DC FAN

    Brief description

    Model: SF4010
    Size: 40x40x10mm
    Rated Voltage: 5VDC, 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 15g

  • Brief description
  • Model: SF4010
    Size: 40x40x10mm
    Rated Voltage: 5VDC, 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 15g
    • Size: 40x40x10mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF4010B(S)-5H

      5

      0.20

      6000

      7.26

      12.34

      26.96

      26

      SF4010B(S)-5M

      0.15

      5000

      5.25

      8.93

      23.04

      24

      SF4010B(S)-5L

      0.12

      4000

      4.52

      7.68

      21.08

      20

      SF4010B(S)-12H

      12

      0.10

      6000

      7.26

      12.34

      26.96

      26

      SF4010B(S)-12M

      0.08

      5000

      5.25

      8.93

      23.04

      24

      SF4010B(S)-12L

      0.06

      4000

      4.52

      7.68

      21.08

      20

      SF4010B(S)-24H

      24

      0.09

      7000

      7.64

      12.99

      35.78

      28

      SF4010B(S)-24M

      0.08

      6000

      7.26

      12.34

      26.96

      26

      SF4010B(S)-24L

      0.05

      5000

      5.25

      8.93

      23.04

      24



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 15g

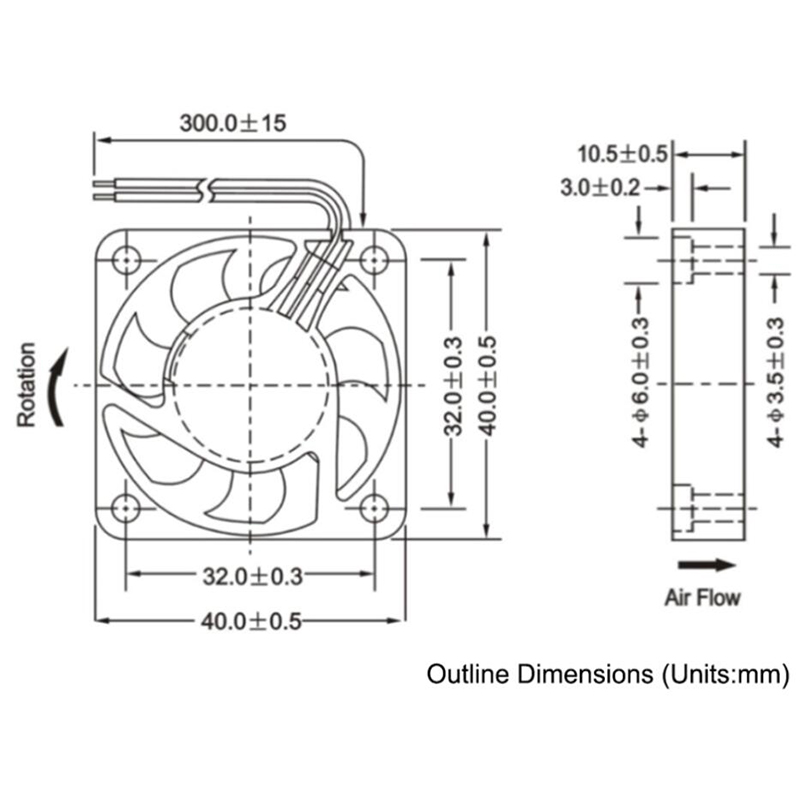

      Dimensions:
