    (11-62) Duct Centrifugal Blower Fan with Low Noise for Exhaust Ventilation
    (11-62) Duct Centrifugal Blower Fan with Low Noise for Exhaust Ventilation
    Category:CENTRIFUGAL FAN

    Brief description

    Model NO.: 11-62
    Voltage: 380/220VAC
    Revolution: 960-1450r/Min
    Air Flow: 1700-13000m3/H
    Current: 2.5-5A
    Trademark: SOGOMAR and OEM
    Material: Stainless Steel
    Usage: for Manufacture, Dust Exhausting, Ventilating
    Flow Direction: Centrifugal
    Pressure: 350-1100PA
    Power: 0.75-5.5kw

  • Brief description
  • Model NO.: 11-62
    Voltage: 380/220VAC
    Revolution: 960-1450r/Min
    Air Flow: 1700-13000m3/H
    Current: 2.5-5A
    Trademark: SOGOMAR and OEM
    Material: Stainless Steel
    Usage: for Manufacture, Dust Exhausting, Ventilating
    Flow Direction: Centrifugal
    Pressure: 350-1100PA
    Power: 0.75-5.5kw

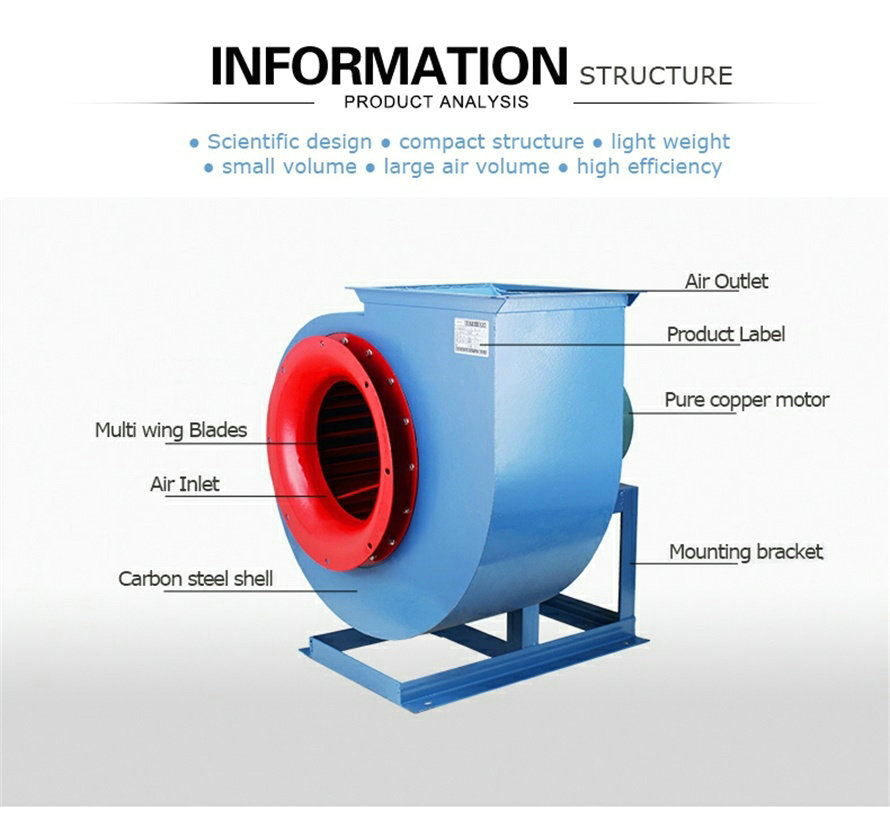

    • 11-62 Industrial Centrifugal Air Blower Exhaust Fan

      1. High efficiency, low speed, low noise, large air volume and long life.

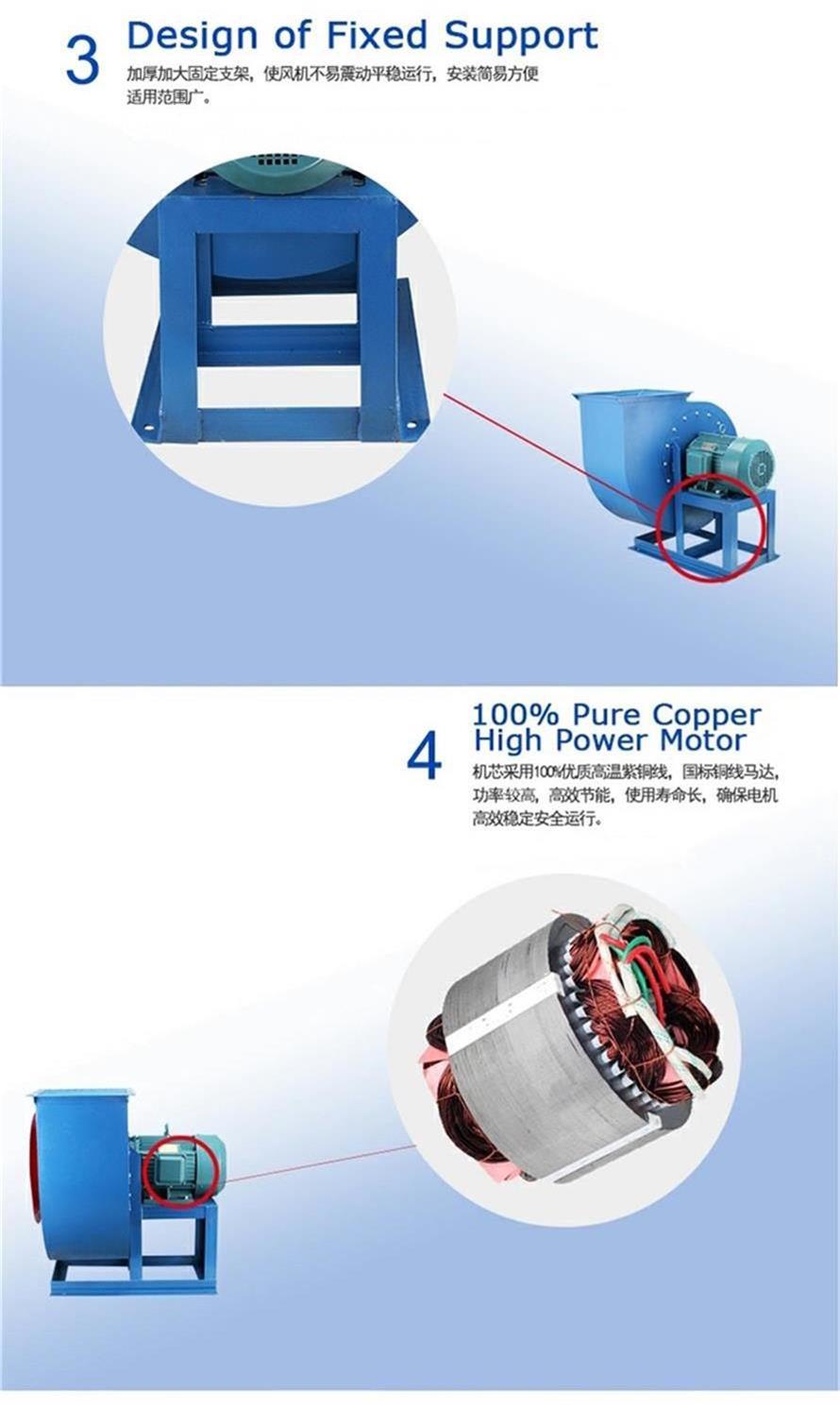

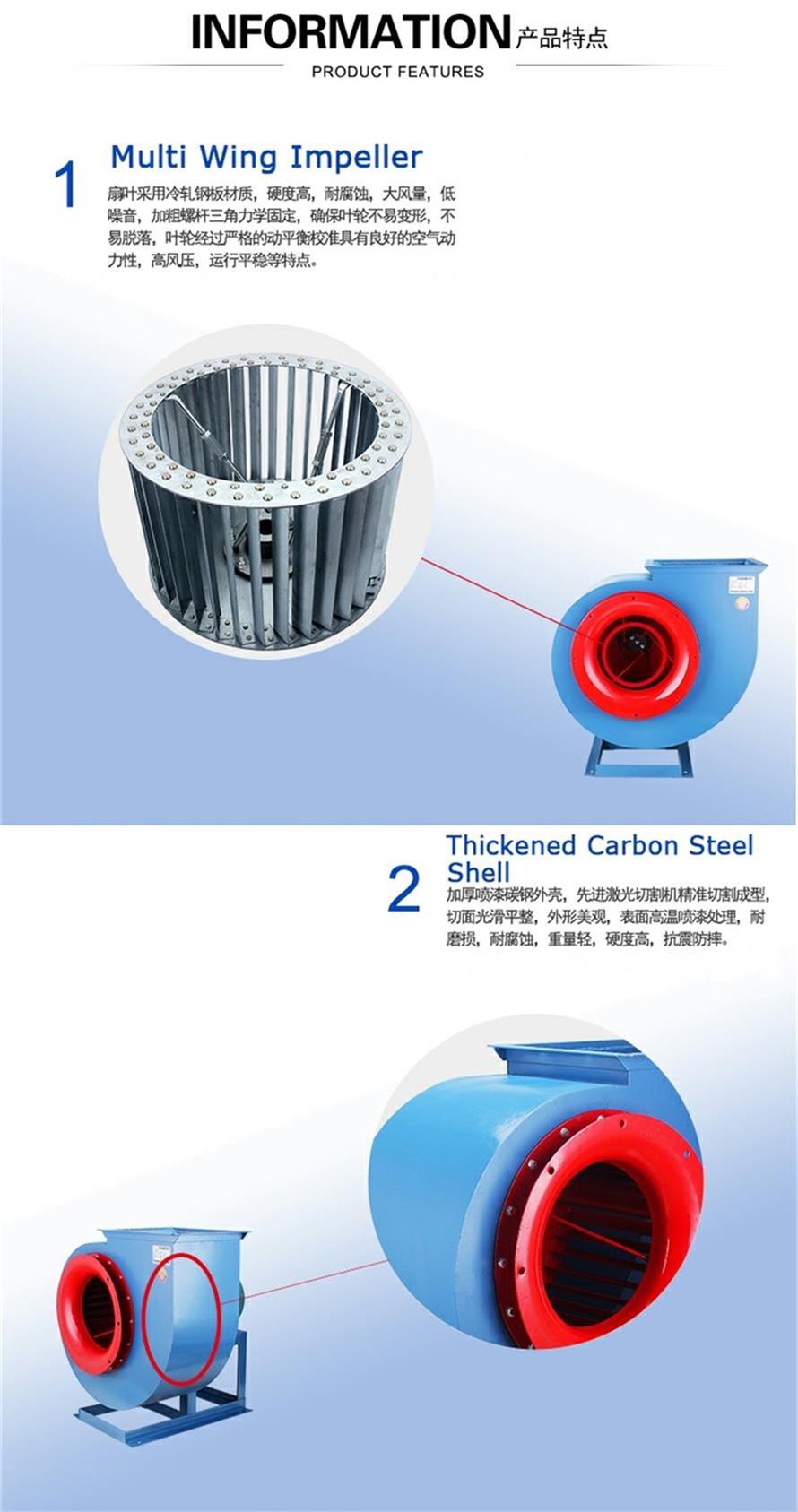

      2. Using advanced aerodynamic impeller structure, spiral shell, with new and compact structure, small vibration, easy to use and so on.
      3. The motor uses Y2,YE series motor, with high efficiency, low energy consumption and attractive appearance
      4. It is widely used in air conditioning units, ventilation or smoke extraction from hotel restaurants, and ventilation for indoor and outdoor buildings in general buildings.
      5. The medium is air or other non spontaneous combustion gas, harmless to the human body, and the medium does not contain sticky material.
      6. The gas temperature ≤80ºC, dust and solid impurities ≤150mg/m3



      Parameters

      Type

      Motor Power

      Voltage

      Frequency

      Speed

      Air Flow

      Pressure

      Noise

      V

      Hz

      r/min

      m³/h

      Pa

      dB(A)

      11-62-2.5A

      0.75KW-4P

      380/220

      50

      1450

      1700-3000

      450-350

      ≤65

      11-62-2.8A

      1.1KW-4P

      380/220

      50

      1450

      2600-4600

      570-440

      ≤66

      0.55KW-6P

      380

      50

      960

      1530-3600

      280-230

      ≤59

      11-62-3A

      1.5KW-4P

      380/220

      50

      1450

      3100-5500

      600-450

      ≤67

      0.75KW-6P

      380/220

      50

      960

      2700-4200

      360-240

      ≤60

      11-62-3.2A

      2.2KW-4P

      380

      50

      1450

      3400-6500

      760-570

      ≤71

      1.1KW-6P

      380

      50

      960

      2600-5000

      400-320

      ≤63

      11-62-3.5A

      3KW-4P

      380

      50

      1450

      3900-7200

      910-700

      ≤76

      1.5KW-6P

      380

      50

      960

      2900-5400

      480-390

      ≤68

      11-62-4A

      5.5KW-4P

      380

      50

      1450

      5020-9100

      1100-880

      ≤78

      2.2KW-6P

      380

      50

      960

      4100-7600

      550-440

      ≤68

      11-62-5A

      4KW-6P

      380

      50

      960

      7500-11500

      850-680

      ≤76

      5.5KW-6P

      380

      50

      960

      8500-13000

      1050-840

      ≤78
