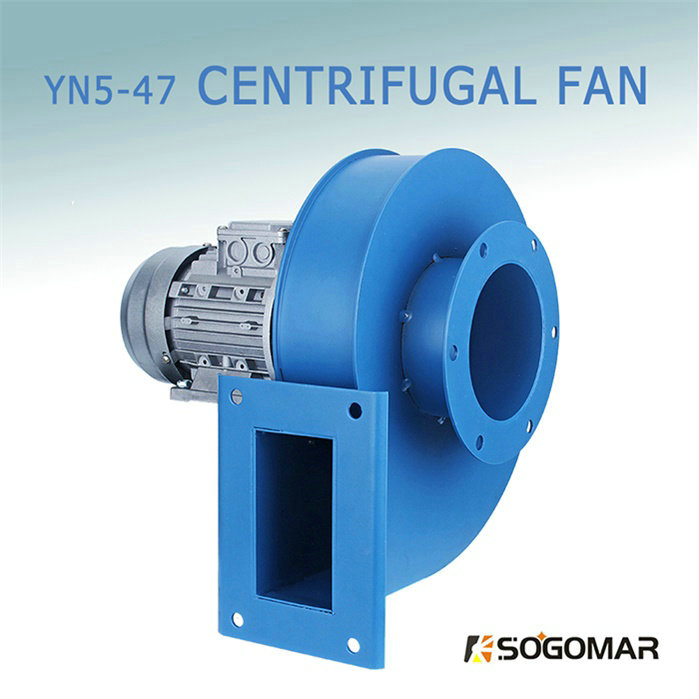

    (YN5-47) Boiler Induced Draft Fan Centrifugal Blower Fan for Dust Exhaust
    (YN5-47) Boiler Induced Draft Fan Centrifugal Blower Fan for Dust Exhaust
    Category:CENTRIFUGAL FAN

    Brief description

    Model NO.: YN5-47
    Voltage: 380/220VAC
    Revolution: 960-2900r/Min
    Air Flow: 240-3100m3/H
    Current: 1.5-4.5A
    Trademark: SOGOMAR and OEM
    Material: Stainless Steel
    Usage: for Manufacture, Dust Exhausting, Ventilating
    Flow Direction: Centrifugal
    Pressure: 310-1280PA
    Power: 60W-2.2kw

  • Brief description
  • Model NO.: YN5-47
    Voltage: 380/220VAC
    Revolution: 960-2900r/Min
    Air Flow: 240-3100m3/H
    Current: 1.5-4.5A
    Trademark: SOGOMAR and OEM
    Material: Stainless Steel
    Usage: for Manufacture, Dust Exhausting, Ventilating
    Flow Direction: Centrifugal
    Pressure: 310-1280PA
    Power: 60W-2.2kw
    • YN5-47 Industrial Centrifugal Blower/ Boiled Induced Draft Fan for dust exhaust/ ventilation
      high temperature resistance 180-200ºC

      1. The motor is made of Y2 aluminum alloy die-casting material, greatly reducing the weight, convenient installation and beautiful appearance.

      2. The main components of the motor use high temperature resistant material (high temperature bearing, high temperature oil, high temperature insulating material, etc.)

      3. The heat insulation connecting seat is connected with the wind shell, and the motor is cooled to ensure the normal operation of the motor at high temperature.

      4. It is widely used in chimney, heating furnaces, hot air furnaces, numerical control boilers, steam boilers, drying, chemical, video, grain machinery and other related industries.

      5. Normal operating temperature: 180-200ºC



      Parameters

      Type

      Motor Power

      Voltage

      Frequency

      Speed

      Air Flow

      Pressure

      V

      Hz

      r/min

      m³/h

      Pa

      YN5-47

      60W

      220/380

      50

      2800

      240

      310

      YN5-47

      90W

      220/380

      50

      2800

      350

      360

      YN5-47

      120W

      220/380

      50

      2800

      480

      450

      YN5-47

      180W

      220/380

      50

      2800

      650

      510

      YN5-47

      250W

      220/380

      50

      2800

      860

      580

      YN5-47

      370W

      220/380

      50

      2800

      1100

      650

      YN5-47

      550W

      220/380

      50

      2800

      1450

      680

      YN5-47

      750W

      220/380

      50

      2800

      1810

      790

      YN5-47

      1.1KW

      220/380

      50

      2800

      2250

      940

      YN5-47

      1.5KW

      220/380

      50

      2800

      2800

      1140

      YN5-47

      2.2KW

      220/380

      50

      2800

      3100

      1280
