    (9-19) High Pressure Centrifugal Fan Blower with Super Wind
    (9-19) High Pressure Centrifugal Fan Blower with Super Wind
    Category:CENTRIFUGAL FAN

    Brief description

    Model NO.: 9-19
    Voltage: 380/220VAC
    Revolution: 2900r/Min
    Air Flow: 402-6978m3/H
    Current: 3.15-6.3A
    Trademark: SOGOMAR and OEM
    Material: Stainless Steel
    Usage: for Manufacture, Dust Exhausting, Ventilating
    Flow Direction: Centrifugal
    Pressure: High Pressure
    Power: 0.75-30kw

  • Brief description
  • Model NO.: 9-19
    Voltage: 380/220VAC
    Revolution: 2900r/Min
    Air Flow: 402-6978m3/H
    Current: 3.15-6.3A
    Trademark: SOGOMAR and OEM
    Material: Stainless Steel
    Usage: for Manufacture, Dust Exhausting, Ventilating
    Flow Direction: Centrifugal
    Pressure: High Pressure
    Power: 0.75-30kw

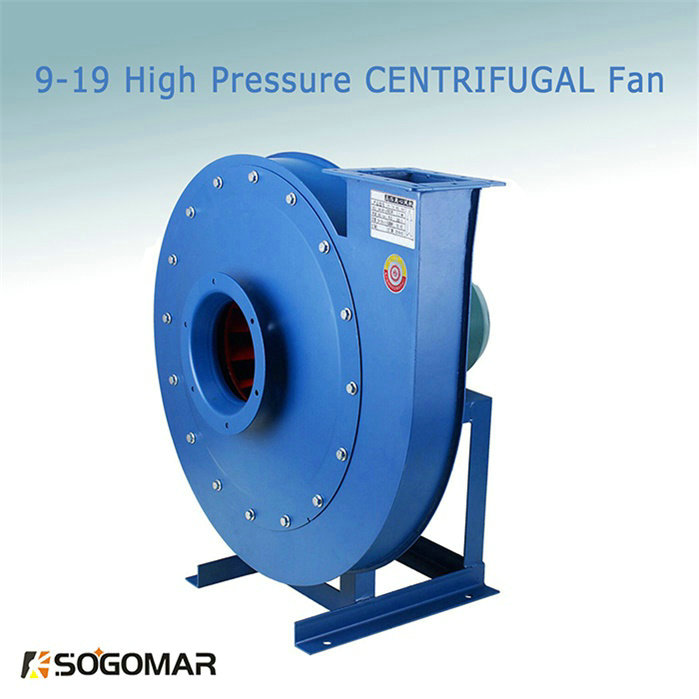

    • 9-19 High Pressure Centrifugal Blower Fan for exhausting and ventilating

      1. High pressure, small vibration. Laser cutting blanking, greatly improve the precision of product, beautiful appearance.
      2. The motor uses YE series motor, with high efficiency, low energy consumption, good quality and long life.
      3. It is widely used in conveying materials, air and gas with non corrosive, non self ignite, non viscous substances.
      4. It is especially suitable for the high pressure ventilation of general smelting, glass, ceramic, radio, electroplating, battery and other industries, and the material transportation of grain, feed, mineral powder, plastic, chemical, and boiler industry.
      5. Optional long shaft motor type, with high temperature resistance 200ºC.



      Parameters

      Type

      Motor Power

      Voltage

      Frequency

      Speed

      Air Flow

      Pressure

      V

      Hz

      r/min

      m³/h

      Pa

      9-19 3.15A

      0.75KW-2P

      380

      50

      2830

      402-545

      2223-2262

      1.1KW-2P

      380

      50

      2830

      617-832

      2231-2017

      9-19 3.55A

      1.5KW-2P

      380

      50

      2840

      560-760

      2545-2590

      2.2KW-2P

      380

      50

      2840

      860-1160

      2554-2310

      9-19 4A

      2.2KW-2P

      380

      50

      2840

      824-1264

      3584-3597

      3KW-2P

      380

      50

      2870

      1410-1704

      3507-3253

      9-19 4.5A

      4KW-2P

      380

      50

      2890

      1174-2062

      4603-4447

      5.5KW-2P

      380

      50

      2900

      2281-2504

      4297-4112

      9-19 5A

      7.5KW-2P

      380

      50

      2900

      1610-2844

      5697-5517

      11KW-2P

      380

      50

      2900

      3166-3488

      5323-5080

      9-19 5.6A

      11KW-2P

      380

      50

      2900

      2622-3619

      7182-7109

      15KW-2P

      380

      50

      2900

      3309-4260

      7068-6755

      18.5KW-2P

      380

      50

      2900

      3996-4901

      6954-6400

      9-19 6.3A

      18.5KW-2P

      380

      50

      2900

      3220-5153

      9149-9055

      22KW-2P

      380

      50

      2900

      4455-6066

      9003-8601

      30KW-2P

      380

      50

      2900

      5690-6978

      8857-8148
