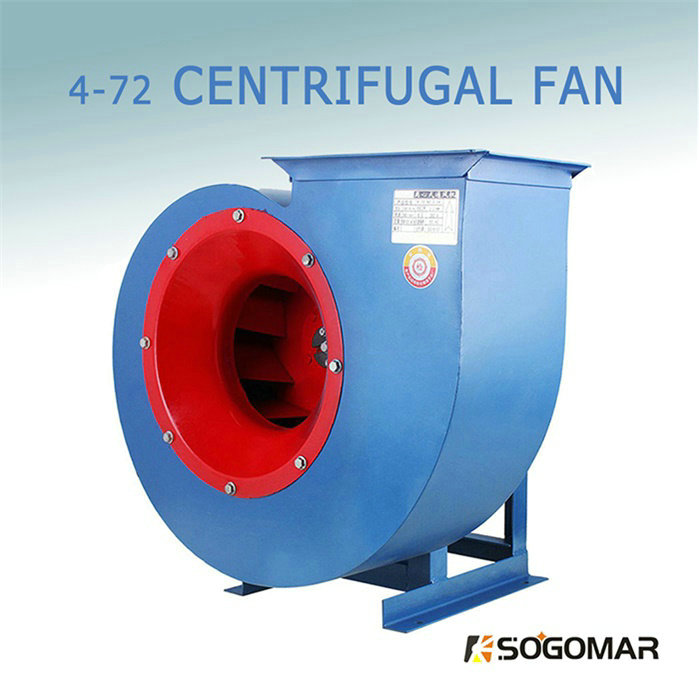

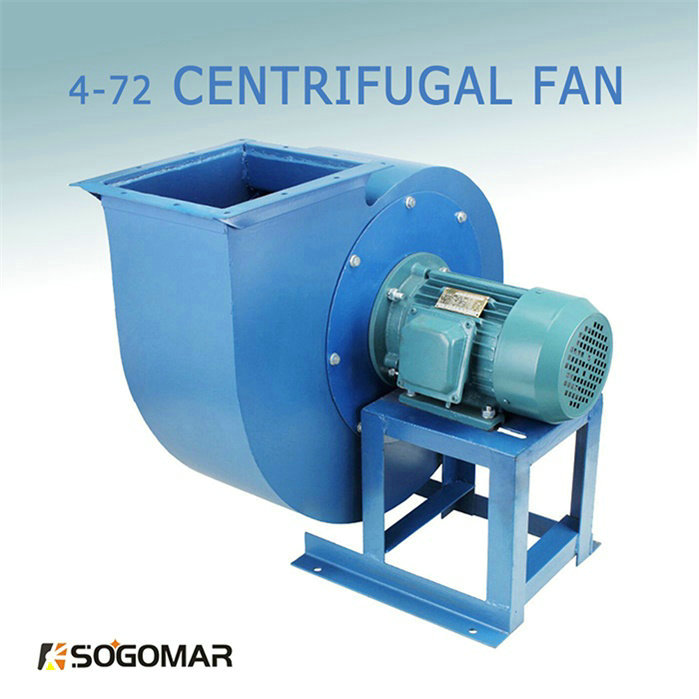

    (4-72) Induced Draft Centrifugal Fan for Dust Exhaust and Ventilation
    (4-72) Induced Draft Centrifugal Fan for Dust Exhaust and Ventilation
    Category:CENTRIFUGAL FAN

    Brief description

    Model NO.: 4-72
    Voltage: 380VAC
    Revolution: 960-2870r/Min
    Air Flow: 785-15455m3/H
    Current: 2.5-6A
    Trademark: SOGOMAR and OEM
    Material: Stainless Steel
    Usage: for Manufacture, Dust Exhausting, Ventilating
    Flow Direction: Centrifugal
    Pressure: 198-1387PA
    Power: 0.75-6kw

  • Brief description
  • Model NO.: 4-72
    Voltage: 380VAC
    Revolution: 960-2870r/Min
    Air Flow: 785-15455m3/H
    Current: 2.5-6A
    Trademark: SOGOMAR and OEM
    Material: Stainless Steel
    Usage: for Manufacture, Dust Exhausting, Ventilating
    Flow Direction: Centrifugal
    Pressure: 198-1387PA
    Power: 0.75-6kw
    • 4-72 Industrial Centrifugal Air Blower Exhaust Fan

      1. Large air volume, small vibration, low noise. Laser cutting blanking, greatly improve the precision of product, beautiful appearance.
      2. The motor uses YE series motor, with high efficiency, low energy consumption, good quality and long life.
      3. It is widely used in industrial and mining enterprises, large buildings, factories, hotels, restaurants and other indoor ventilation, especially for heating furnace, hot stove, drying, chemical industry, food, grain machinery and other related industries.
      4. Optional long shaft motor type, with high temperature resistance 200ºC.



      Parameters

      Type

      Motor Power

      Voltage

      Frequency

      Speed

      Air Flow

      Pressure

      V

      Hz

      r/min

      m³/h

      Pa

      4-72 2.5A

      0.75KW-2P

      380

      50

      2830

      785-1550

      750-455

      1.1KW-2P

      380

      50

      2830

      805-1677

      792-483

      4-72 2.8A

      1.5KW-2P

      380

      50

      2840

      1131-2356

      994-606

      4-72 3.2A

      1.1KW-4P

      380

      50

      1450

      884-1758

      324-198

      2.2KW-2P

      380

      50

      2840

      1688-3517

      1300-792

      4-72 3.6A

      1.1KW-4P

      380

      50

      1450

      1332-2634

      393-247

      3KW-2P

      380

      50

      2870

      2664-5268

      1578-989

      4-72 4A

      1.1KW-4P

      380

      50

      1450

      2006-4709

      501-329

      5.5KW-2P

      380

      50

      2900

      4012-7419

      2014-1320

      4-72 4.5A

      1.1KW-4P

      380

      50

      1450

      2856-5281

      634-416

      7.5KW-2P

      380

      50

      2900

      5712-10562

      2554-1673

      4-72 5A

      2.2KW-4P

      380

      50

      1450

      3864-7728

      790-502

      1.5KW-6P

      380

      50

      960

      7728-15455

      3187-2019

      4-72 5.6A

      3KW-4P

      380

      50

      1450

      7062-9885

      975-759

      4-72 6A

      4KW-4P

      380

      50

      1450

      6677-13353

      1139-724

      1.5KW-6P

      380

      50

      960

      4420-8841

      498-317
