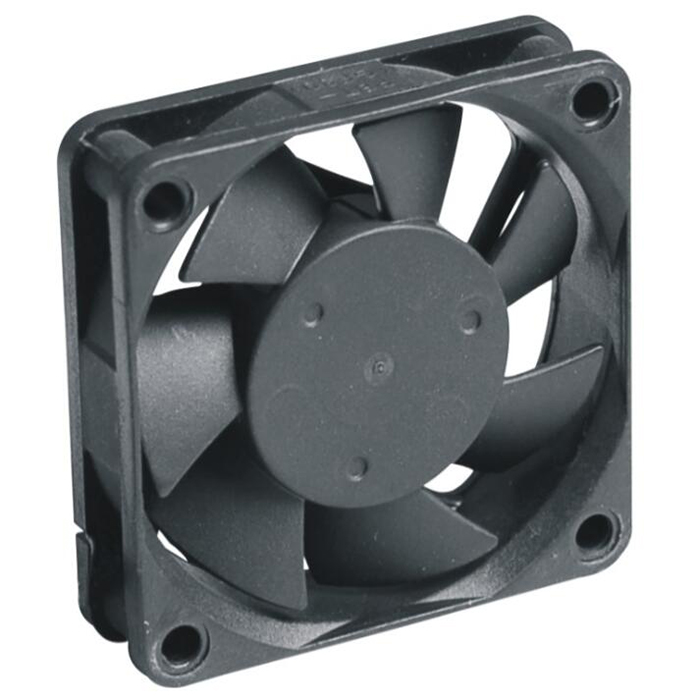

    SF6015
    SF6015
    Category：DC FAN

    Brief description

    Model: SF6015
    Size: 60x60x15mm
    Rated Voltage: 5VDC, 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 35g

  • Brief description
  • Model: SF6015
    Size: 60x60x15mm
    Rated Voltage: 5VDC, 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 35g
    • Size: 60x60x15mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF6015B(S)-5L

      √

      √

      5

      0.15

      3500

      14.65

      24.91

      20.88

      26

      SF6015B(S)-5M

      √

      √

      0.24

      4000

      16.45

      27.98

      27.35

      29

      SF6015B(S)-5H

      √

      √

      0.35

      4500

      18.52

      31.48

      31.57

      32

      SF6015B(S)-12L

      √

      √

      12

      0.13

      3500

      14.65

      24.91

      20.88

      26

      SF6015B(S)-12M

      √

      √

      0.16

      4000

      16.45

      27.98

      27.35

      29

      SF6015B(S)-12H

      √

      √

      0.18

      4500

      18.52

      31.48

      31.57

      32

      SF6015B(S)-24L

      √

      √

      24

      0.07

      3500

      14.65

      24.91

      20.88

      26

      SF6015B(S)-24M

      √

      √

      0.09

      4000

      16.45

      27.98

      27.35

      29

      SF6015B(S)-24H

      √

      √

      0.11

      4500

      18.52

      31.48

      31.57

      32



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 35g

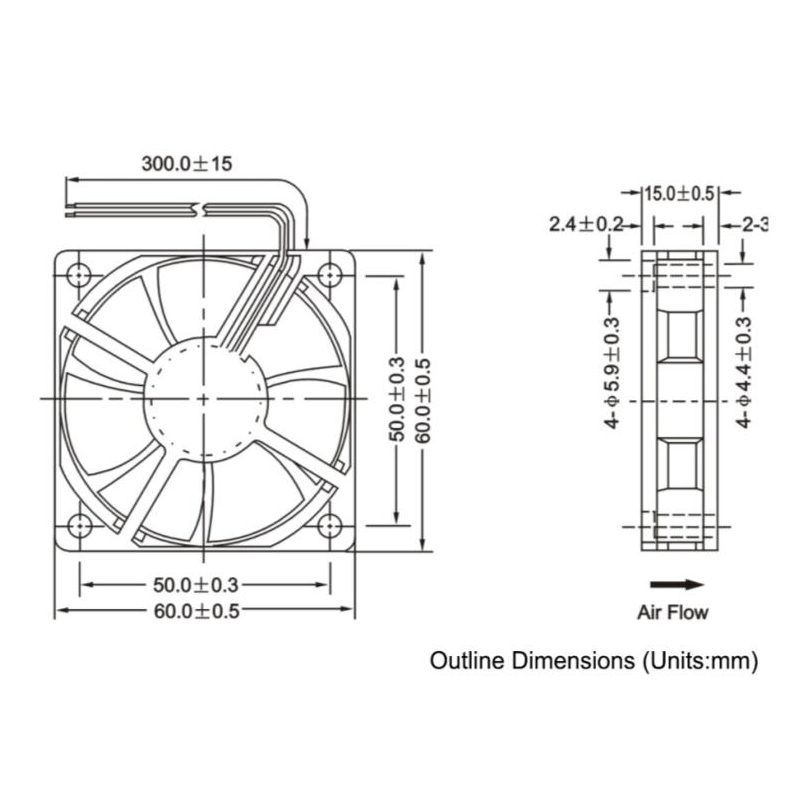

      Dimensions:
