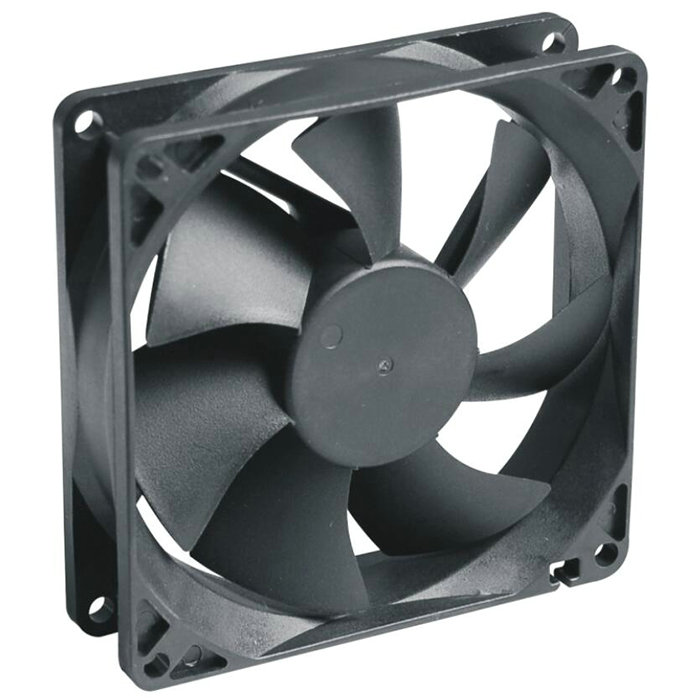

    SF9225
    SF9225
    Category：DC FAN

    Brief description

    Model: SF9225
    Size: 92x92x25mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 85g

  • Brief description
  • Model: SF9225
    Size: 92x92x25mm
    Rated Voltage: 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 85g

    • Size: 92x92x25mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF9225B(S)-12L

      √

      √

      12

      0.16

      2000

      39.17

      66.6

      16.86

      28

      SF9225B(S)-12M

      √

      √

      0.19

      2500

      48.12

      81.8

      25.88

      30

      SF9225B(S)-12H

      √

      √

      0.23

      2800

      54.46

      92.6

      32.55

      32

      SF9225B-12HH

      √



      0.43

      4500

      82.60

      140.4

      60.78

      43

      SF9225B(S)-24L

      √

      √

      24

      0.15

      2000

      39.17

      66.6

      16.86

      28

      SF9225B(S)-24M

      √

      √

      0.18

      2500

      48.12

      81.8

      25.88

      30

      SF9225B(S)-24H

      √

      √

      0.22

      2800

      54.46

      92.6

      32.55

      32

      SF9225B-24HH

      √



      0.35

      4500

      82.60

      140.4

      60.78

      43



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 85g

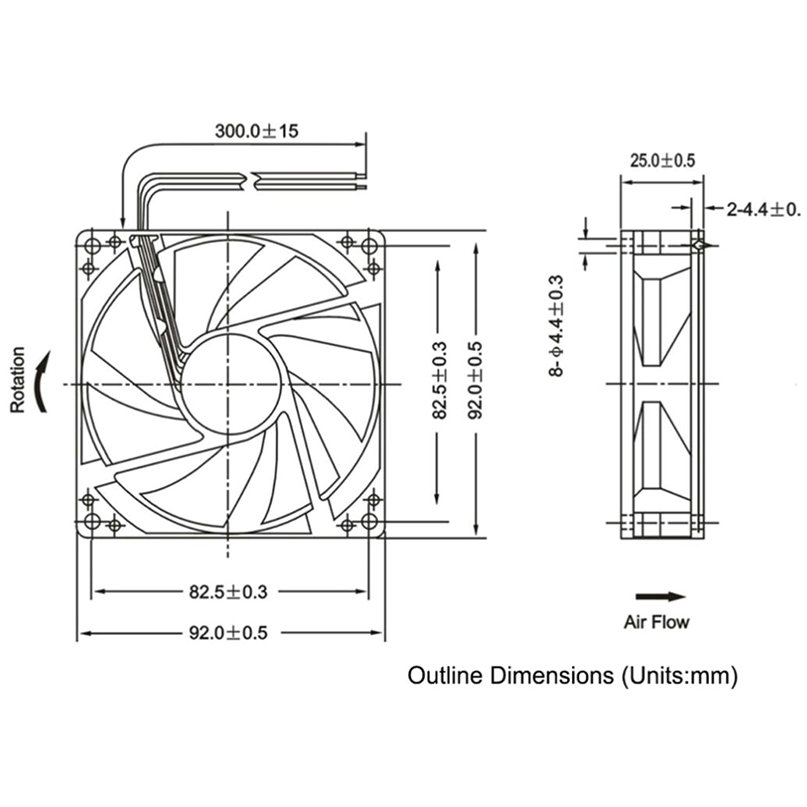

      Dimensions:
