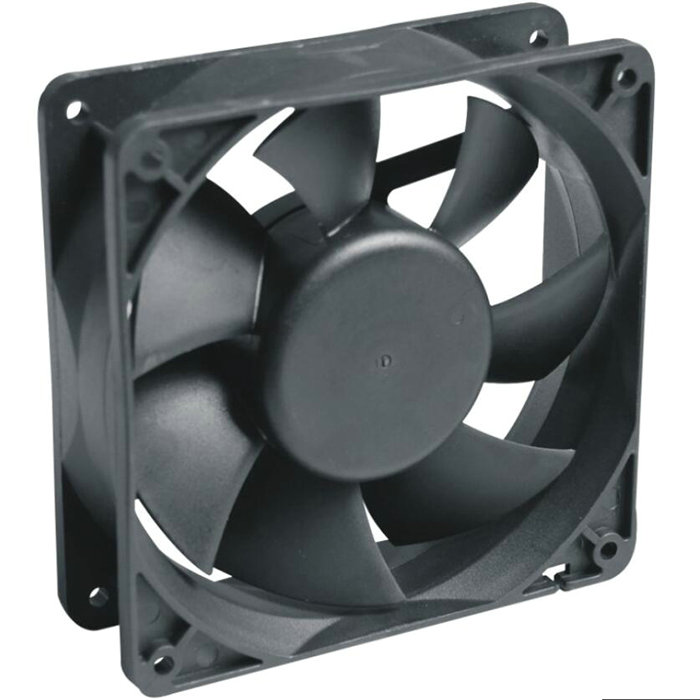

    SF12038
    SF12038
    Category：DC FAN

    Brief description

    Model: SF12038
    Size: 120x120x38mm
    Rated Voltage: 12VDC, 24VDC, 48VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 250g

  • Brief description
  • Model: SF12038
    Size: 120x120x38mm
    Rated Voltage: 12VDC, 24VDC, 48VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 250g

    • Size: 120x120x38mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF12038B(S)-12L

      √

      √

      12

      0.25

      2000

      85.56

      145.5

      47.35

      37

      SF12038B(S)-12M

      √

      √

      0.35

      2500

      102.14

      173.6

      58.3

      42

      SF12038B(S)-12H

      √

      √

      0.55

      3000

      125.06

      212.6

      70.09

      47

      SF12038B(S)-12HH

      √

      √

      0.70

      3500

      148.66

      252.7

      80.48

      52

      SF12038B(S)-24L

      √

      √

      24

      0.20

      2000

      85.56

      145.5

      47.35

      37

      SF12038B(S)-24M

      √

      √

      0.30

      2500

      102.14

      173.6

      58.3

      42

      SF12038B(S)-24H

      √

      √

      0.40

      3000

      125.06

      212.6

      70.09

      47

      SF12038B(S)-24HH

      √

      √

      0.50

      3500

      148.66

      252.7

      80.48

      52

      SF12038B(S)-48M

      √

      √

      48

      0.12

      2500

      102.14

      173.6

      58.3

      42

      SF12038B(S)-48H

      √

      √

      0.20

      3500

      148.66

      252.7

      80.48

      52



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 250g



      Dimensions:
