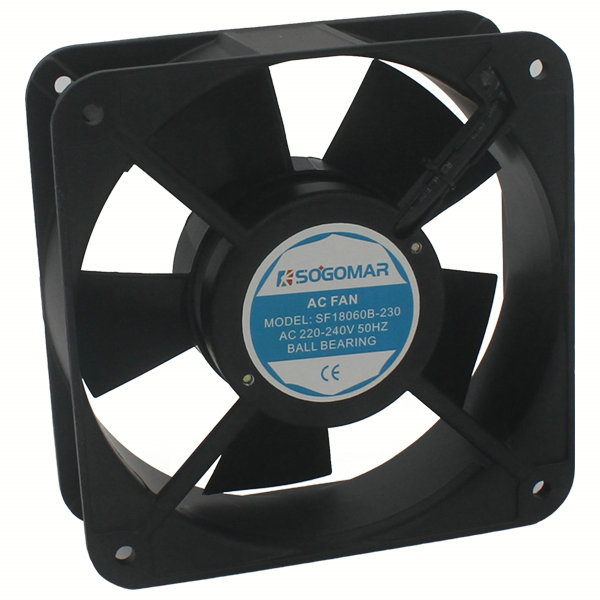

    SF18060
    SF18060
    Category:AC AXIAL FAN - PLASTIC IMPELLERS

    Brief description

    SF18060
    Size: 180x180x60mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing
    Connection: leadwire or terminals

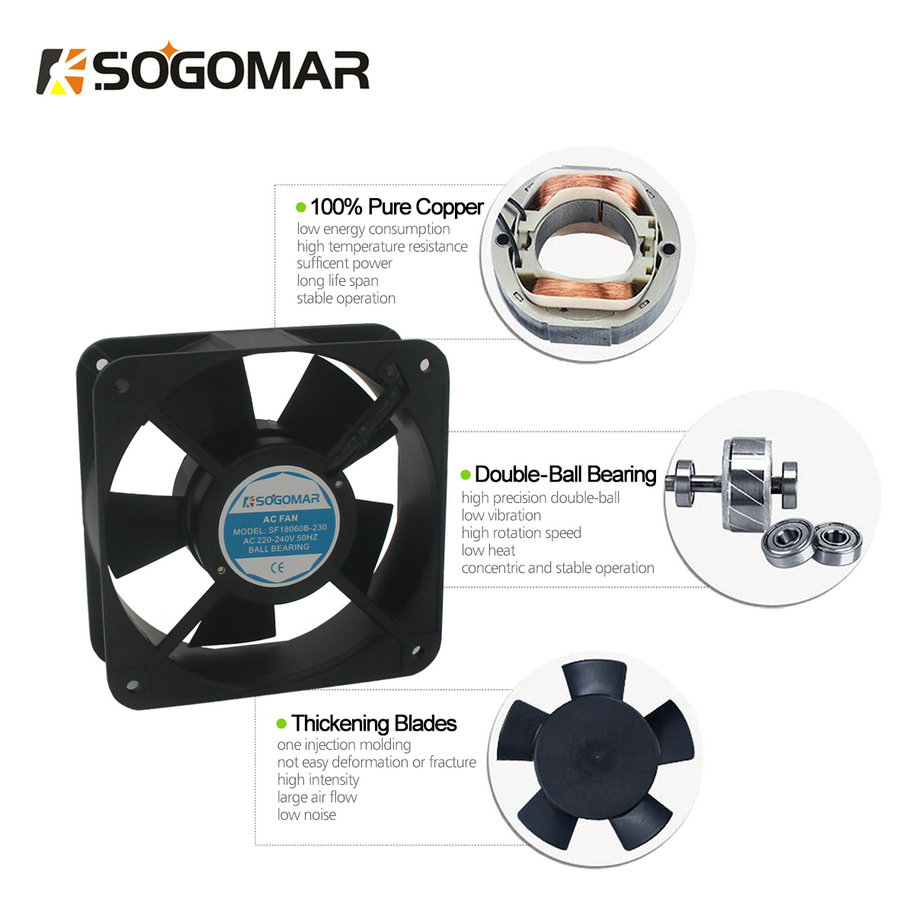

    Material: Alu frame, plastic blades, copper coil.
    Color: Black or Silver
    Package: 43*32*20cm,10PCS/Carton,18kg

  • Brief description
  • SF18060
    Size: 180x180x60mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Black or Silver
    Package: 43*32*20cm,10PCS/Carton,18kg
    • Size: 180x180x60mm

      Parameters:



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM        m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SF18060BL-1 115 50 0.91 65 2400 236 400 115 58 ----
      60 0.46 54 2600 265 450 125 59
      SF18060BL-2 230 50 0.41 64 2500 248 420 125 60 ----
      60 0.33 51 2700 277 470 135 62
      SF18060BL-3 380 50 0.42 66 2550 250 425 128 61 ----
      60 0.38 53 2750 280 475 138 63



      Information:

      Motor: Shaded pole motor structure
      Net-cover: Aluminum alloy die-casting, surfaces is finished by black anti-corrosion treatment
      Impeller: Black plastic PBT UL94V-0
      Operation Temperature/Humidity Range: :-30°C to +60°C, 0%~95%
      Protection: Impedance Protected
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      Insulting system: Design according to IEC61858 Grade B
      Protecting Grade:IP34
      Rotation Direction of Blades:CCW seen from the front impellers
      Unit Weight:1.55kg

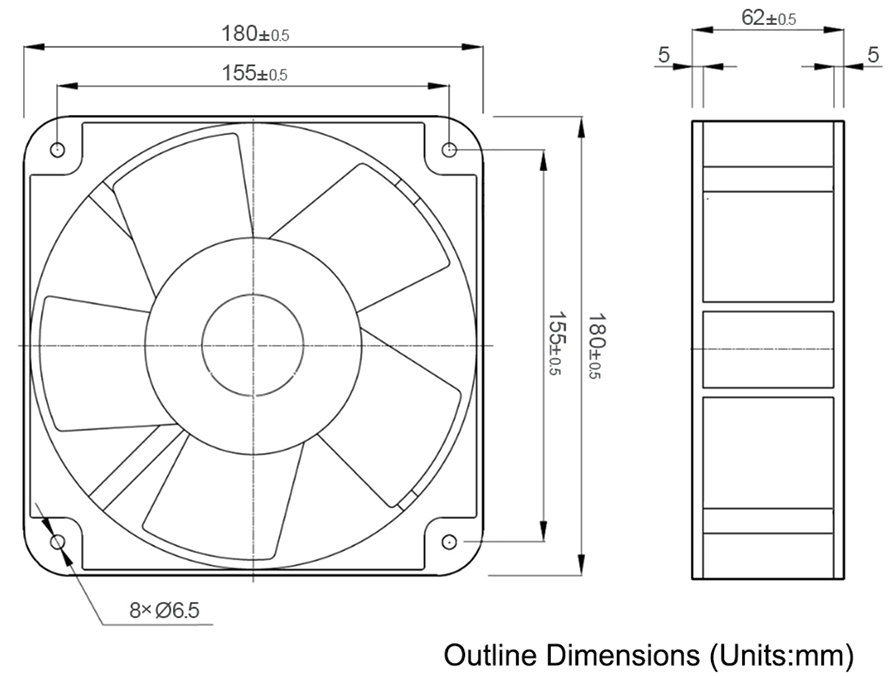

      Dimensions:
