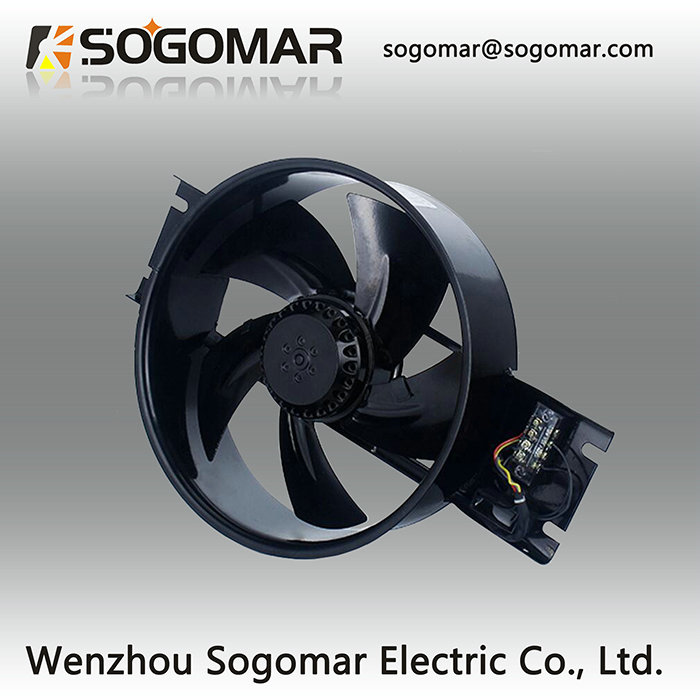

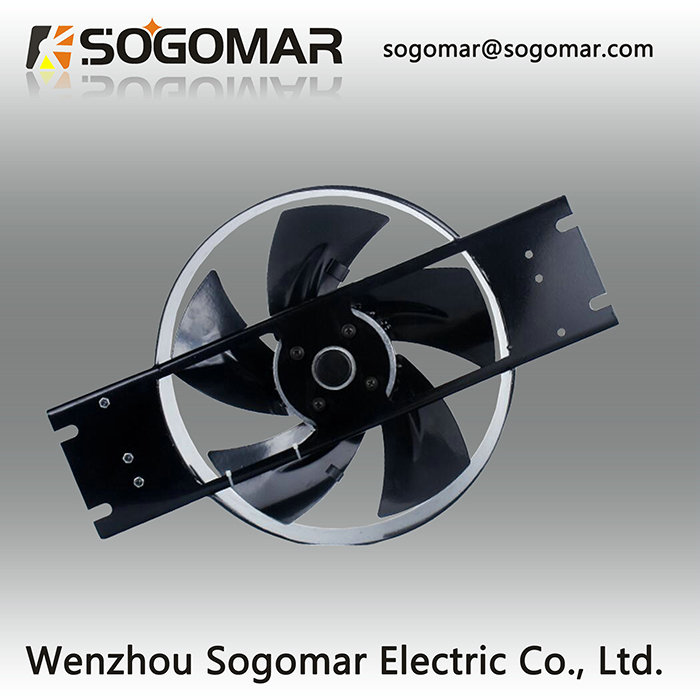

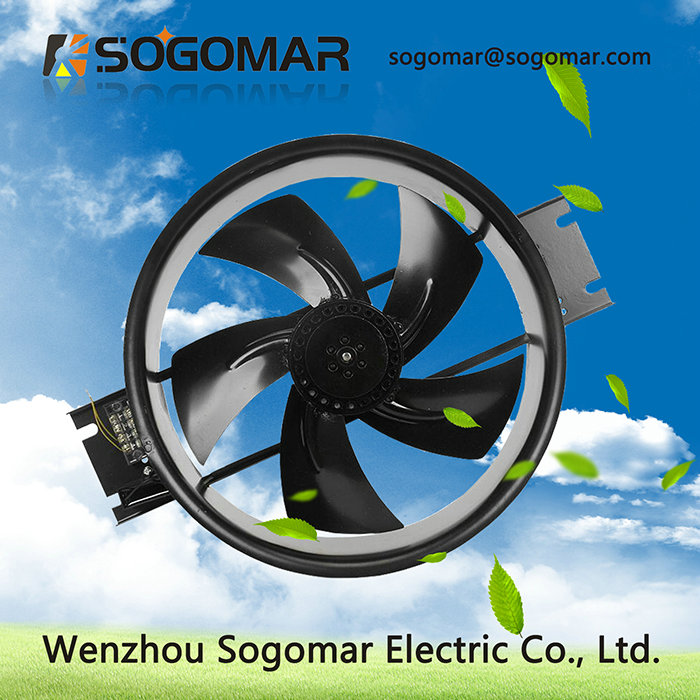

    300FZY
    300FZY
    Category:AC FAN - METAL IMPELLERS

    Brief description

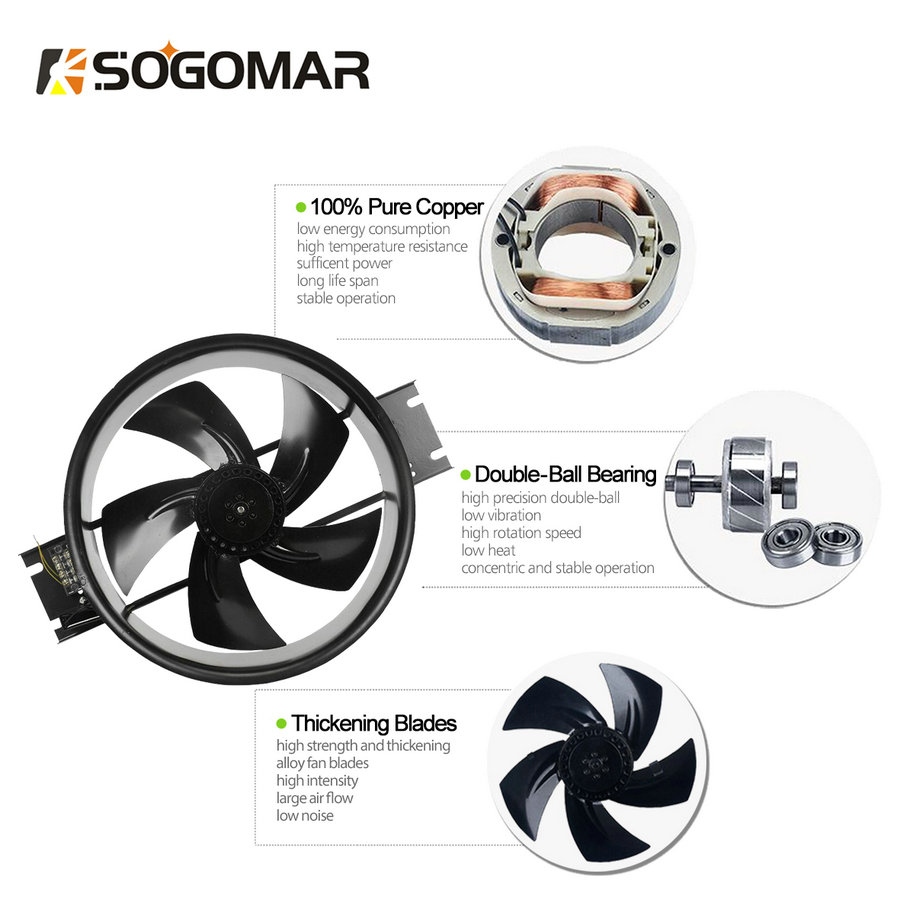

    Motor: Configuration of External rotor motors
    Net-cover: Steel wire with black paint,anti-corrosion and anti-oxidization treatment
    Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
    Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
    Protection: Motor Internal with automatic recovery thermal protector
    Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
    Insulting system: Design according to IEC61858 Grade F
    Protecting Grade: IP54
    Unit Weight: 7kgs

  • Brief description
  • Motor: Configuration of External rotor motors
    Net-cover: Steel wire with black paint,anti-corrosion and anti-oxidization treatment
    Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
    Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
    Protection: Motor Internal with automatic recovery thermal protector
    Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
    Insulting system: Design according to IEC61858 Grade F
    Protecting Grade: IP54
    Unit Weight: 7kgs
    • Dia: 400mm



      Parameters:



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM        m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      300FZY2-D

      1

      230

      50

      0.30

      80

      1350

      776

      1320

      60

      1.0/400

      300FZY3-D

      3

      380

      50

      0.22

      80

      1350

      776

      1320

      60

      ----

      300FZY4-D

      1

      380

      50

      0.22

      80

      1350

      776

      1320

      60

      0.33/630

      300FZY6-D

      1

      230

      50

      0.95

      160

      2400

      1341

      2280

      72

      3.0/400

      300FZY7-D

      3

      380

      50

      0.60

      160

      2400

      1341

      2280

      72

      ----

      300FZY8-D

      1

      380

      50

      0.65

      160

      2400

      1341

      2280

      72

      1.5/630



      Information:

      Motor: Configuration of External rotor motors
      Net-cover: Carbon steel with red paint, anti-corrosion and anti-oxidization treatment
      Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
      Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
      Protection: Motor Internal with automatic recovery thermal protector
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      Insulting system: Design according to IEC61858 Grade F
      Protecting Grade: IP54

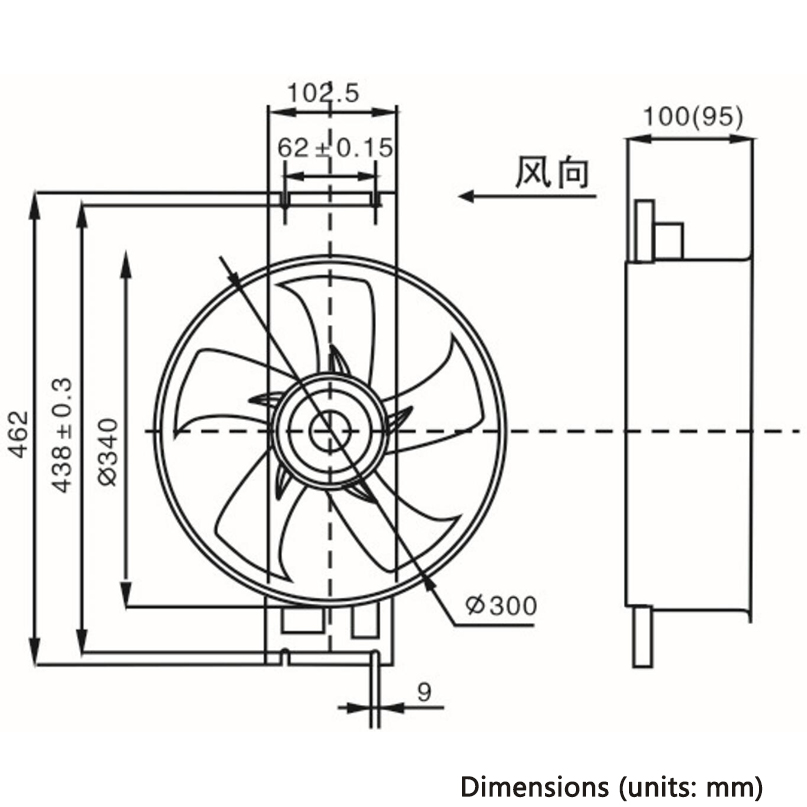

      Dimensions:
