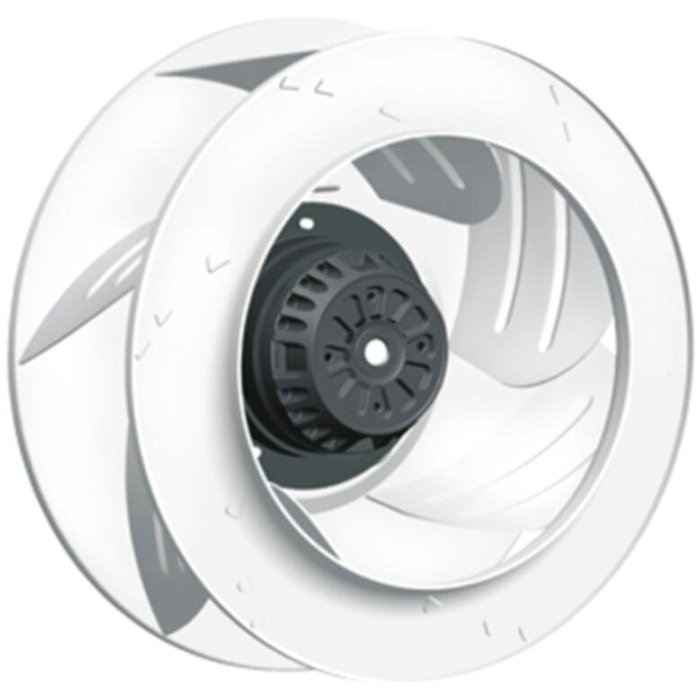

SFC315-101

SFC315-101

Category：CENTRIFUGAL FAN

Brief description

Centrifugal Fan
SFC315-4P101
Dia: 315mm
Voltage: 220-240VAC, 380VAC, 230/400VAC
Frequency: 50Hz, 60Hz and 50/60Hz
Number of pole: 4 pole
Outlet height: 101mm
Material: plastic blades, copper coil
Color: Black or white

Brief description

PARAMETERS
SEND INQUIRY

Centrifugal Fan (Dia:315mm)

Parameters:

Type 产品型号	Rated Voltage 额定电压 V	Frequency 频率 HZ	Current 电流 A	Power 功率 (W)+10% -20%	Speed 回转速度 (min^-1)	Max Air Flow 最大风量 CFM m³/h		Static Pressure 最大静压 (PA)	Noise 噪音 (dB)	Capacitor 电容 (μF)
SFC315-4P101-1	230	50	0.51	115	1380	1256	2130	290	59	4.0/450
SFC315-4P101-1	230	60	0.70	160	1500	1404	2380	400	62	4.0/450
SFC315-4P101-3	380	50	0.40	128	1380	1256	2130	290	59	1.0/630
SFC315-4P101-3	380	60	0.47	170	1540	1404	2380	400	62	1.0/630
SFC315-4P101-2/4	230/400	50	.62/.35	137/135	1360	1256	2130	290	59	-----
SFC315-4P101-2/4	230/400	60	.58/.32	167/170	1500	1404	2380	400	62	-----

Information:

Motor：Cage type capacitor structure external rotor motor

Impeller：Black PA nylon one-time injection moulding

Operation Temperature/Humidity Range: -30℃~+65℃ 0%~95%

Protection：Motor Internal with automatic recovery thermal protector

Withstand Voltage：AC 1800V, 1 min at 0.5mA, 50/60Hz

Insulation Grade：Design according to IEC61858 Grade

Protection Grade：IP44

Unit Weight: 3.8Kg

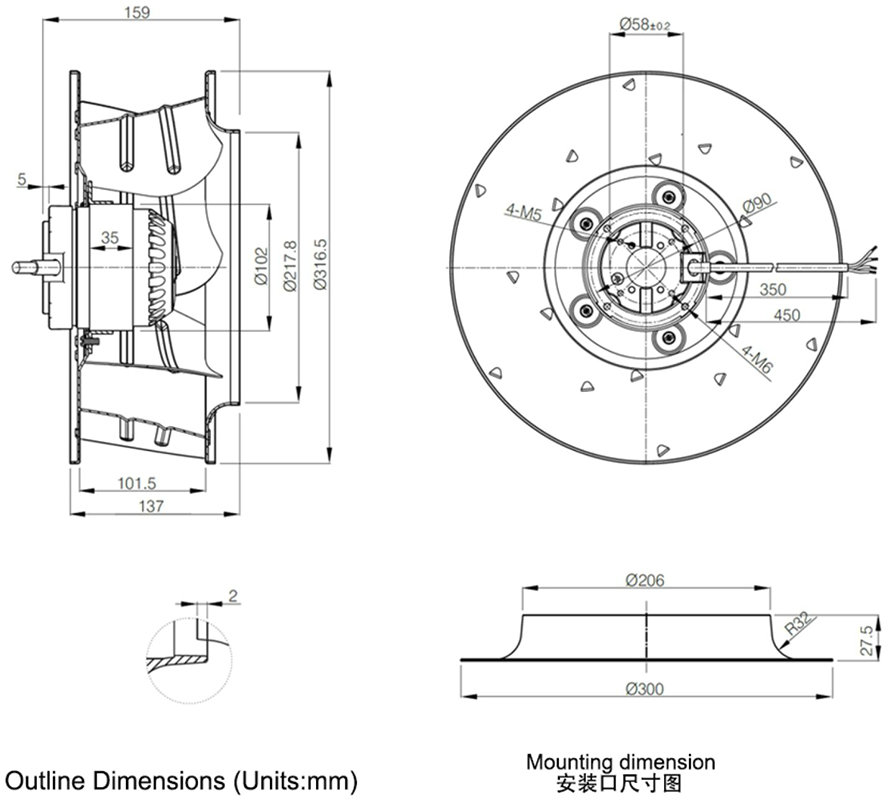

Dimensions:
