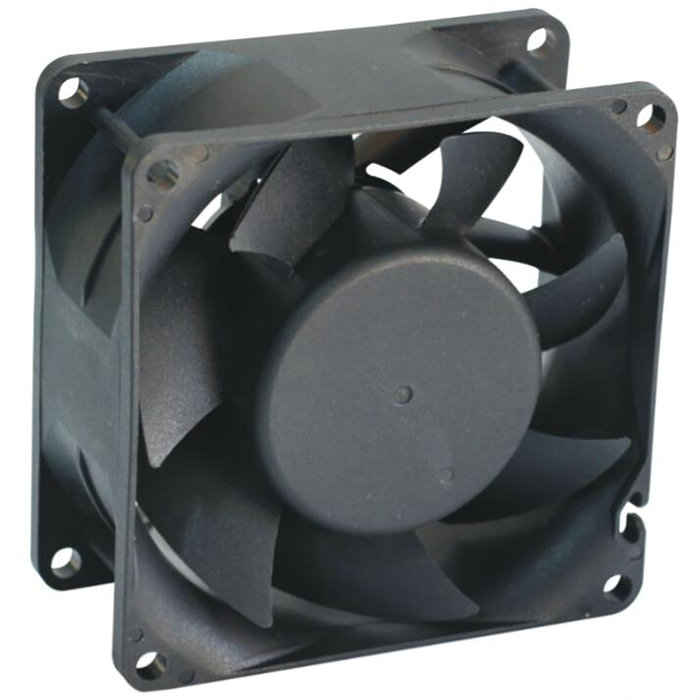

    SF8038
    SF8038
    Category：DC FAN

    Brief description

    Model: SF8038
    Size: 80x80x38mm
    Rated Voltage: 12VDC, 24VDC, 48VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 180g

  • Brief description
  • Model: SF8038
    Size: 80x80x38mm
    Rated Voltage: 12VDC, 24VDC, 48VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 180g

    • Size: 80x80x38mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF8038B-12L

      √



      12

      0.54

      4800

      75.00

      127.50

      122.01

      51

      SF8038B-12M

      √



      0.81

      5500

      88.00

      149.60

      164.34

      55

      SF8038B-12H

      √



      1.18

      6200

      97.00

      164.90

      199.20

      57

      SF8038B-12HH

      √



      1.86

      7000

      110.00

      187.00

      261.45

      61

      SF8038B-24L

      √



      24

      0.20

      4800

      75.00

      127.50

      122.01

      51

      SF8038B-24M

      √



      0.42

      5500

      88.00

      149.60

      164.34

      55

      SF8038B-24H

      √



      0.54

      6200

      97.00

      164.90

      199.20

      57

      SF8038B-48L

      √



      48

      0.15

      4800

      75.00

      127.50

      122.01

      51

      SF8038B-48M

      √



      0.20

      5500

      88.00

      149.60

      164.34

      55

      SF8038B-48H

      √



      0.30

      6200

      97.00

      164.90

      199.20

      57.0



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 180g

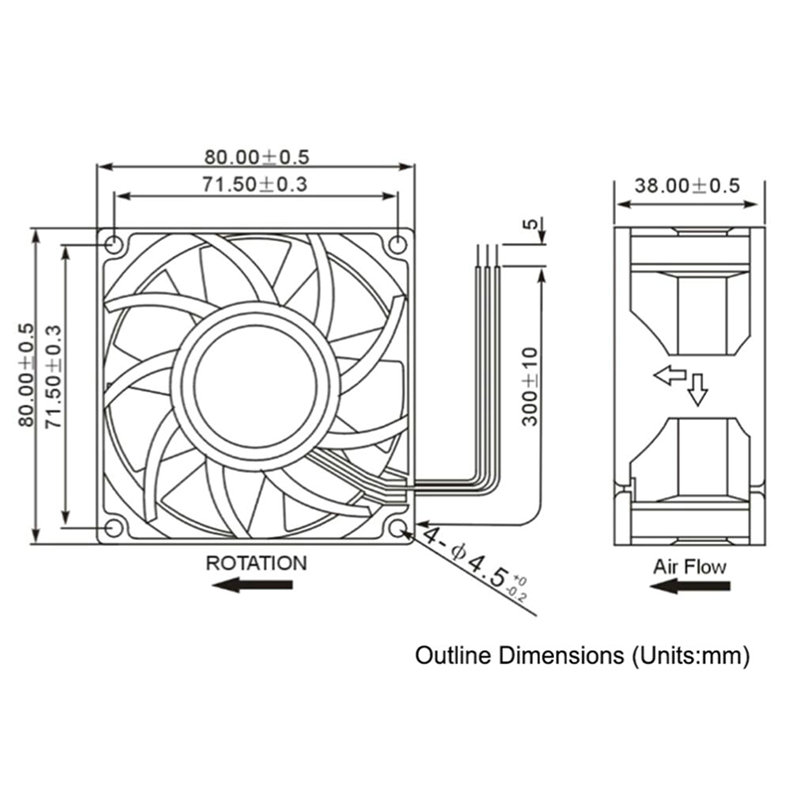

      Dimensions:
