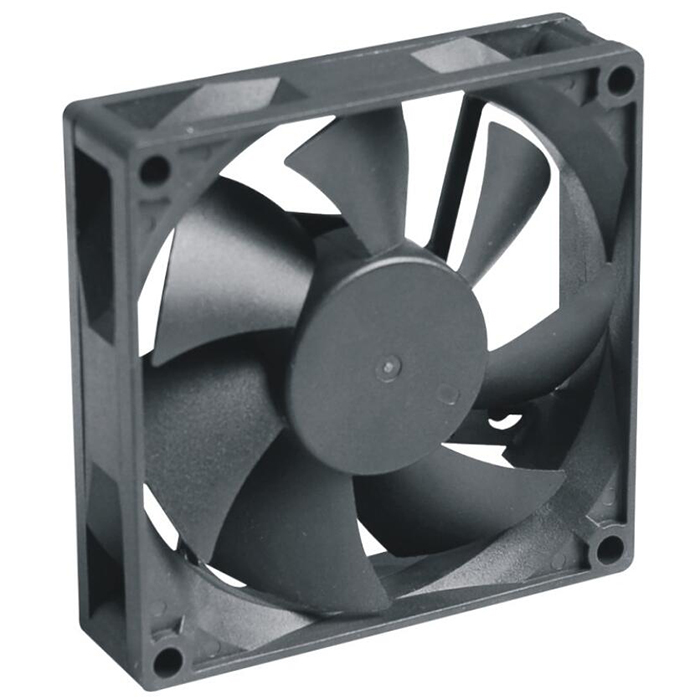

    SF8020
    SF8020
    Category:DC FAN

    Brief description

    Model: SF8020
    Size: 80x80x20mm
    Rated Voltage: 5VDC, 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 68g

  • Brief description
  • Model: SF8020
    Size: 80x80x20mm
    Rated Voltage: 5VDC, 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 68g
    • Size: 80x80x20mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF8020B-5L



      5

      0.17

      2440

      22.27

      37.86

      24.45

      28

      SF8020B-5M



      0.24

      3000

      27.55

      46.84

      39.43

      34

      SF8020B-12L



      12

      0.07

      2440

      22.27

      37.86

      24.45

      28

      SF8020B-12M



      0.13

      3000

      27.55

      46.84

      39.43

      34

      SF8020B-12H



      0.25

      4200

      38.84

      66.03

      67.97

      44

      SF8020B(S)-24H

      24

      0.07

      3000

      27.55

      46.84

      39.43

      34



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 68g

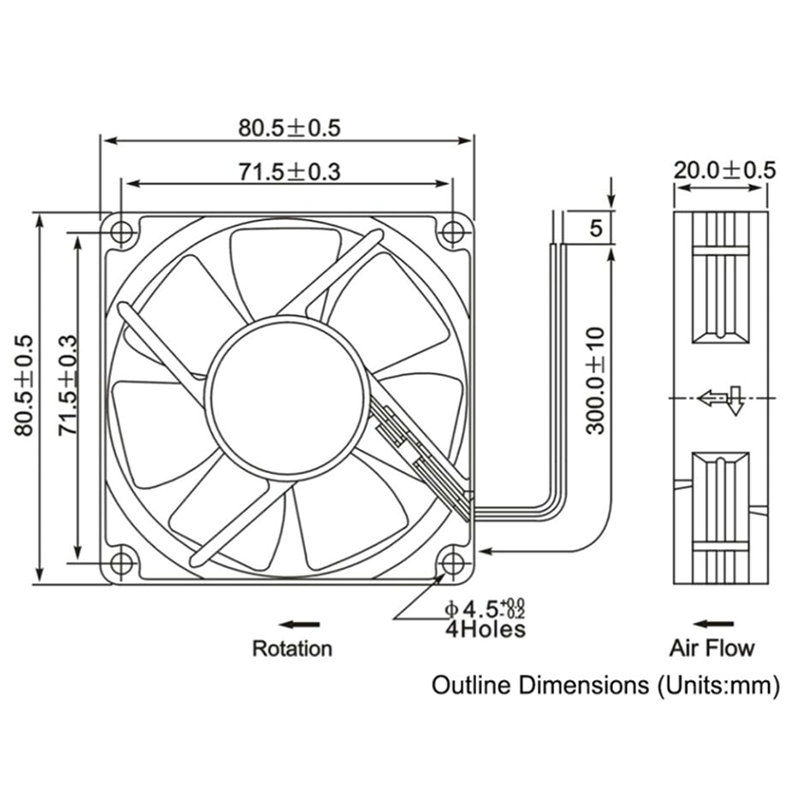

      Dimensions:
