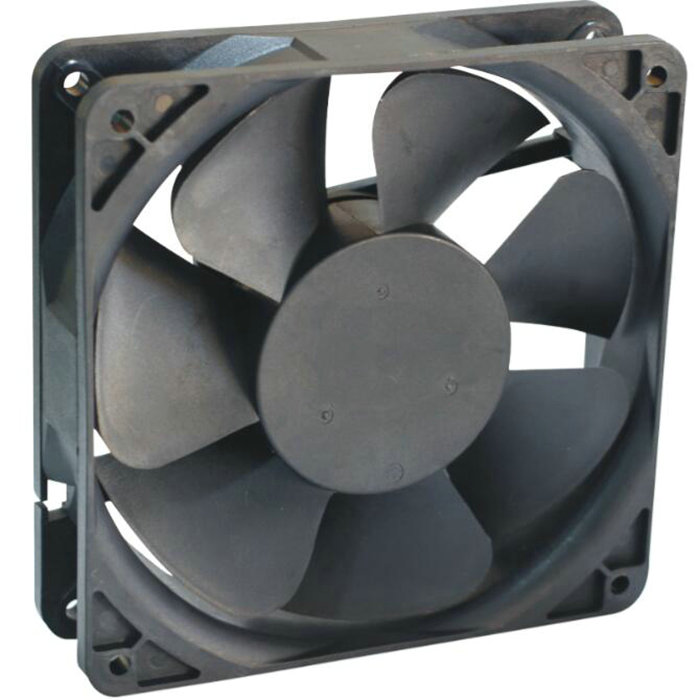

    SF12032
    SF12032
    Category:DC FAN

    Brief description

    Model: SF12032
    Size: 120x120x32mm
    Rated Voltage: 12VDC, 24VDC, 48VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 213g

  • Brief description
  • Model: SF12032
    Size: 120x120x32mm
    Rated Voltage: 12VDC, 24VDC, 48VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 213g
    • Size: 120x120x32mm

      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF12032B-12L



      12

      0.08

      1450

      59.5

      101.2

      18.63

      27

      SF12032B-12M



      0.19

      2000

      83.0

      141.1

      30.62

      36

      SF12032B-12H



      0.26

      2400

      99.1

      168.5

      41.57

      41

      SF12032S-12H



      0.32

      2750

      111.7

      189.9

      60.00

      43

      SF12032B-12HH



      0.51

      3200

      113.4

      192.8

      78.92

      48

      SF12032B-24L



      24

      0.05

      1450

      59.5

      101.2

      18.63

      27

      SF12032B-24M



      0.10

      2000

      83.0

      141.1

      30.62

      36

      SF12032B-24H



      0.16

      2400

      99.1

      168.5

      41.57

      41

      SF12032S-24H



      0.21

      2750

      111.7

      189.9

      60.00

      43

      SF12032B-24HH



      0.32

      3200

      113.4

      192.8

      78.92

      48

      SF12032B-48H



      48

      0.11

      2750

      111.7

      189.9

      60.00

      43

      SF12032B-48HH



      0.15

      3200

      113.4

      192.8

      78.92

      48



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 213g

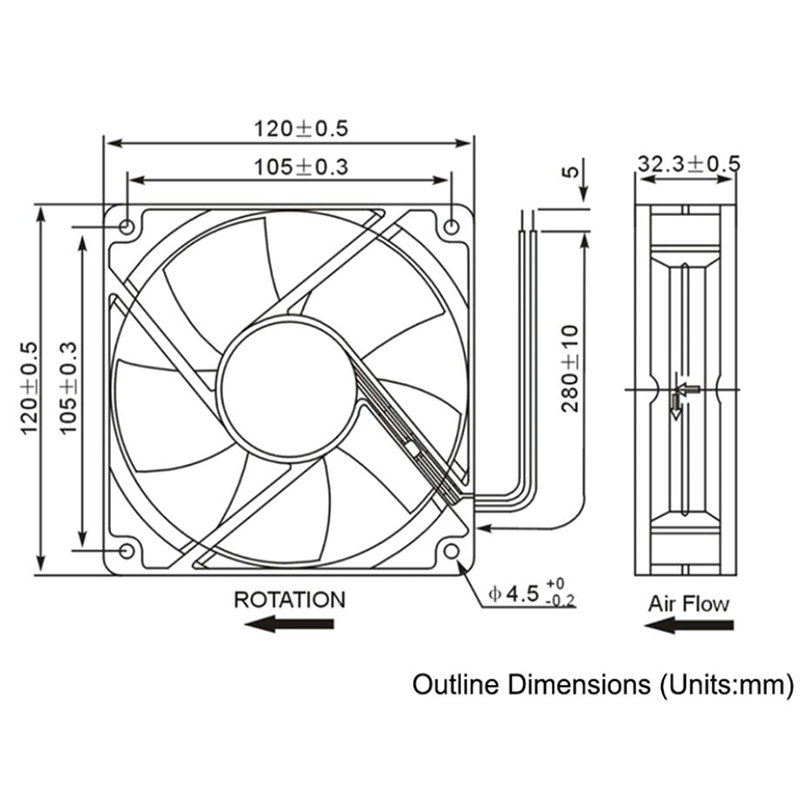

      Dimensions:
