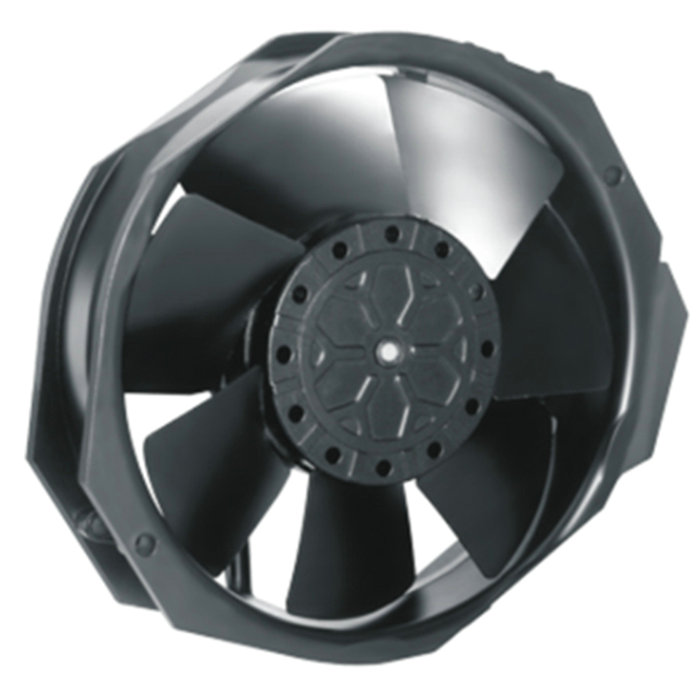

    SFM15738
    SFM15738
    Category:AC FAN - METAL IMPELLERS

    Brief description

    SFM15738
    Size: 172x150x38mm
    Voltage: 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing
    Connection: leadwire or terminals
    Material: Alu frame, steel blades, copper coil.
    Color: Black or Silver

  • Brief description
  • SFM15738
    Size: 172x150x38mm
    Voltage: 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing
    Connection: leadwire or terminals
    Material: Alu frame, steel blades, copper coil.
    Color: Black or Silver
    • SFM15738

      Parameters



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM     m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SFM15738B-1

      115

      50

      0.22

      23

      2700

      189

      320

      160

      52

      ----

      60

      0.21

      24

      3200

      224

      380

      215

      57

      SFM15738B-2

      230

      50

      0.13

      29

      2700

      189

      320

      160

      52

      ----

      60

      0.13

      28

      3200

      224

      380

      215

      57



      Information:

      Motor: External rotor motor structure. Impedance protect
      Frame: Aluminium die-casting, surfaces is finished by anti-corrosion treatment with primary color or black electrophoresis anti-corrosion treatment
      Impeller: Metal impellers are welded to motor rotor, and surface is finished by black electrophoresis anti-corrosion treatment
      Operation Temperature/Humidity Range: Temperature -30ºC ~ +90ºC Humidity 0% ~ 95%
      Protection: Motor Internal with automatic recovery thermal protector
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      insulting system: Design according to IEC61858 Grade F
      Protecting Grade: IP44
      Rotation Direction of Blades: CCW seen from the front impellers
      Unit Weight: 900g

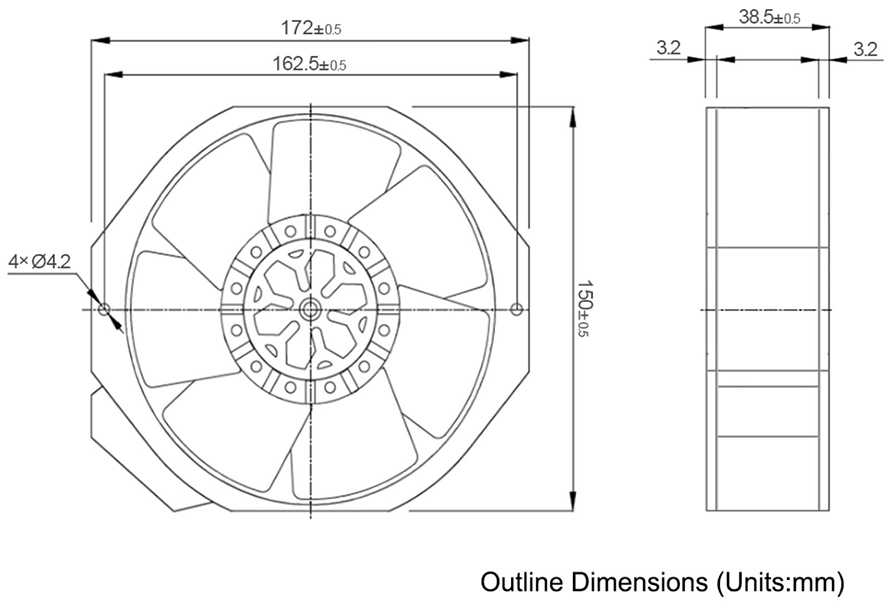

      Dimensions:
