    SFM350
    SFM350
    Category：AC FAN - METAL IMPELLERS

    Brief description

    Model NO.: SFM350
    Blade Material: Stainless Steel
    Electric Current Type: AC
    Certification: CE
    Voltage: 110-120VAC, 220-240VAC, 380VAC
    Specification: 350mm
    Material: Aluminum Fan
    Type: Axial Fan
    Mounting: Wall Fan
    Weight(Kg): 4.7

  • Brief description
  • Model NO.: SFM350
    Blade Material: Stainless Steel
    Electric Current Type: AC
    Certification: CE
    Voltage: 110-120VAC, 220-240VAC, 380VAC
    Specification: 350mm
    Material: Aluminum Fan
    Type: Axial Fan
    Mounting: Wall Fan
    Weight(Kg): 4.7

    • Ventilation Fan with External Rotor Motor, Metal Blades (Dia 350mm)



      Parameters:

      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM     m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SFM350-4P-1

      115

      50

      1.25

      140

      1450

      1957

      3326

      115

      64

      60

      1.47

      165

      1670

      2356

      4005

      135

      66

      SFM350-4P-2

      230

      50

      0.54

      137

      1450

      1957

      3326

      115

      64

      60

      0.82

      178

      1670

      2356

      4005

      135

      66

      SFM350-6P-1

      115

      50

      0.33

      64

      1050

      1280

      2176

      42

      55

      60

      0.35

      82

      1200

      1480

      2516

      46

      59



      Information:
      Motor: Configuration of External rotor motors
      Net-cover: Steel wire with black paint,anti-corrosion and anti-oxidization treatment
      Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
      Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
      Protection: Motor Internal with automatic recovery thermal protector
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      Insulting system: Design according to IEC61858 Grade F
      Protecting Grade: IP54
      Unit Weight: 4.7kgs

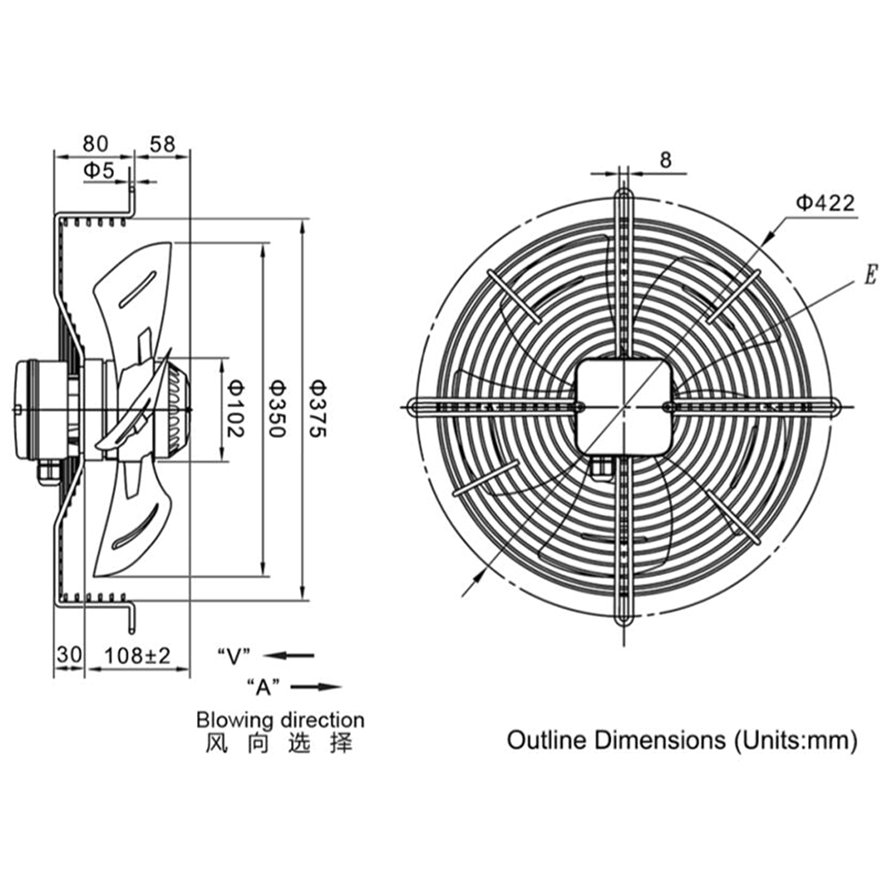

      Dimensions:
