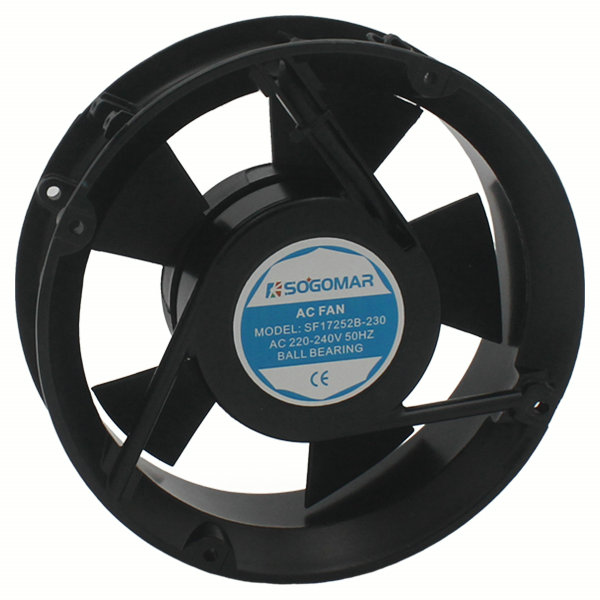

    SF17252
    SF17252
    Category：AC AXIAL FAN - PLASTIC IMPELLERS

    Brief description

    SF17252
    Size: 172x172x52mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing and sleeve bearing
    Connection: leadwire or terminals

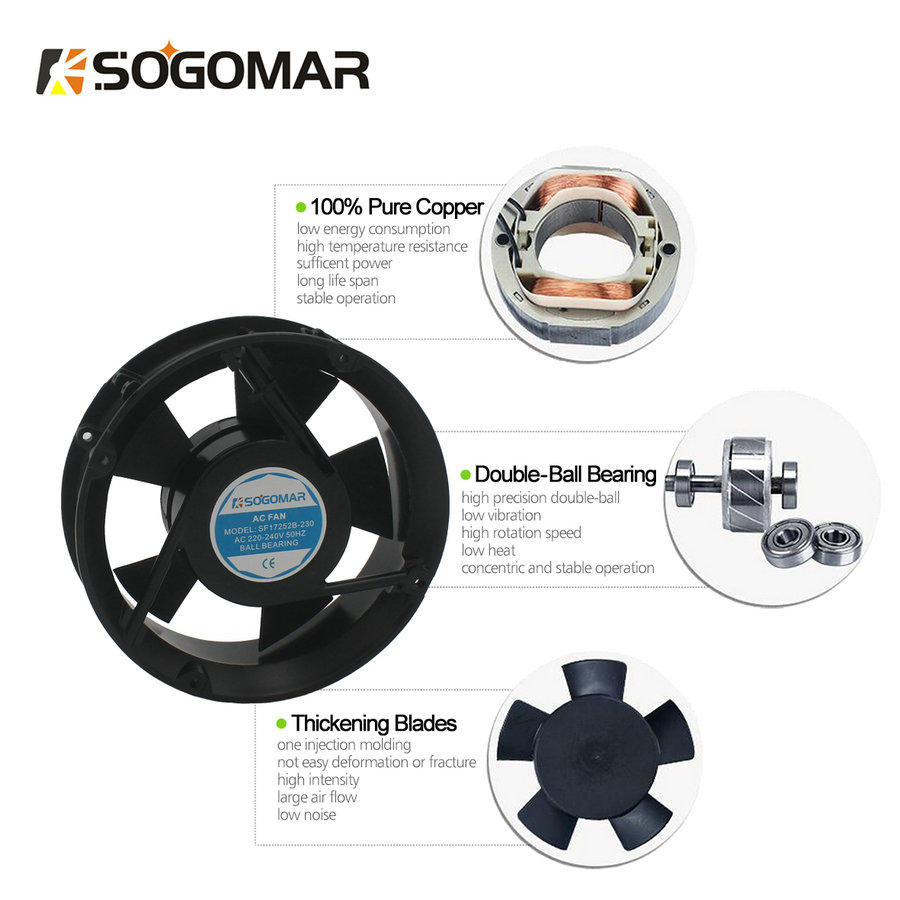

    Material: Alu frame, plastic blades, copper coil.
    Color: Black or Silver
    Package: 37*36*39cm,24PCS/Carton,22kg

  • Brief description
  • SF17252
    Size: 172x172x52mm
    Voltage: 24-48VAC, 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Bearing: Ball bearing and sleeve bearing
    Connection: leadwire or terminals
    Material: Alu frame, plastic blades, copper coil.
    Color: Black or Silver
    Package: 37*36*39cm,24PCS/Carton,22kg

    • Size: 172x172x52mm

      Parameters:



      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM        m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SF15752BL-1 115 50 0.34 25 2500 130 220 80 50 ----
      60 0.32 23 2700 142 240 100 52
      SF15752BHL-1 115 50 0.48 41 2550 237 402 160 55 ----
      60 0.46 38 2800 271 460 180 57
      SF15752BL-2 230 50 0.19 26 2500 130 220 80 50 ----
      60 0.17 24 2700 142 240 100 52
      SF15752BHL-2 230 50 0.17 28 2550 237 402 160 55 ----
      60 0.18 30 2800 271 460 180 57
      SF15752BHL-3 380 50 0.10 31 2600 240 410 185 58 ----
      60 0.17 28 2850 275 470 185 60



      Information:

      Motor: Shaded pole motor structure
      Net-cover: Aluminum alloy die-casting, surfaces is finished by black anti-corrosion treatment
      Impeller: Black plastic PBT UL94V-0
      Operation Temperature/Humidity Range: ：-30°C to +60°C, 0%~95%
      Protection: Impedance Protected
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      Insulting system: Design according to IEC61858 Grade B
      Protecting Grade:IP34
      Rotation Direction of Blades:CCW seen from the front impellers
      Unit Weight：870g

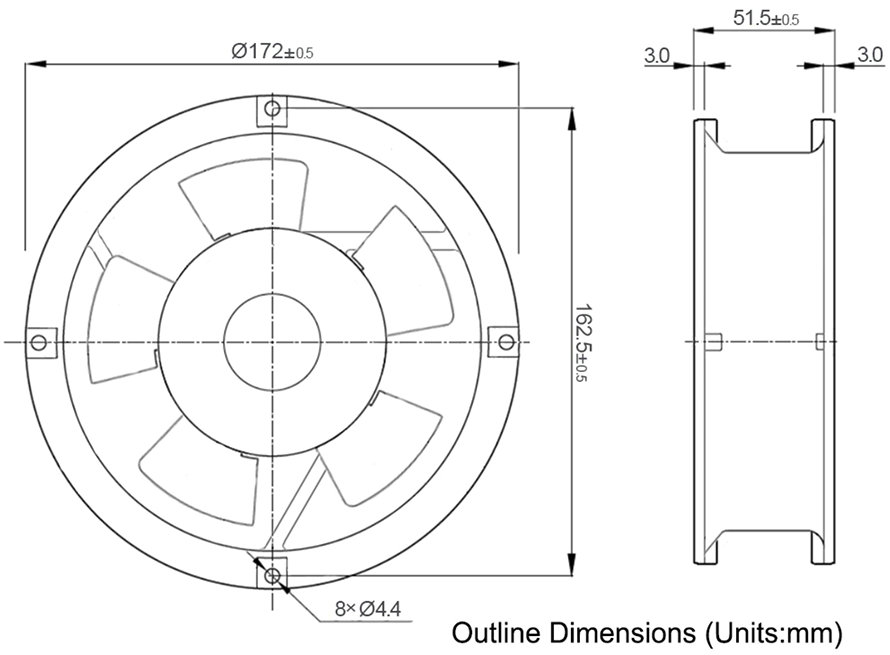

      Dimensions:
