Brief description
Model NO.: SFM400
Blade Material: Stainless Steel
Electric Current Type: AC
Certification: CE
Weight(Kg): 5.5
Pole: 4p and 6p
Transport Package: Export Carton with Foam Inside, Then Pallet
Material: Metal
Type: Axial Fan
Mounting: Wall Fan
Voltage: 110-120VAC, 220-240VAC, 380VAC
Warantee: One Year Guarantee Time
Specification: 400mm

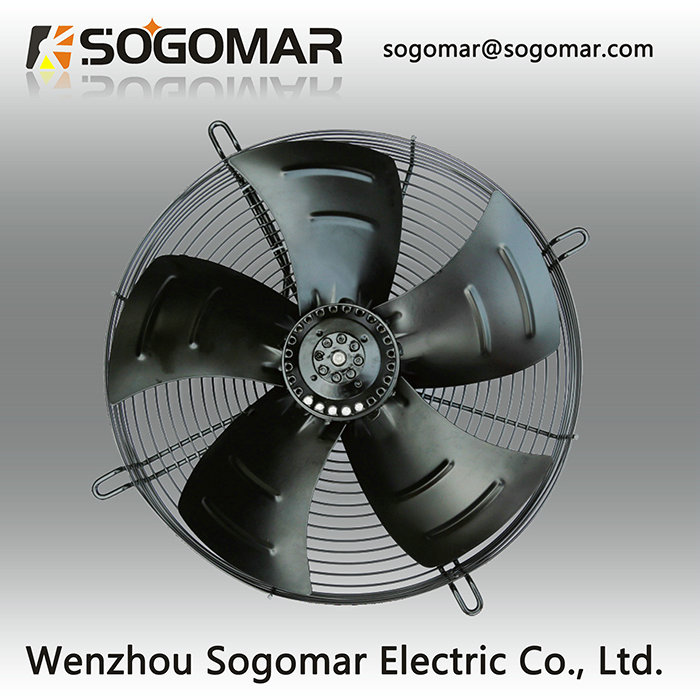

Ventilation Fan with External Rotor Motor, Metal Blades (Dia 400mm)
Parameters:
|
Type |
Rated Voltage |
Frequency |
Current |
Power |
Speed |
Max Air Flow |
Static Pressure |
Noise | |
|
SFM400-4P-1 |
115 |
50 |
1.91 |
195 |
1400 |
2440 |
4148 |
150 |
68 |
|
60 |
2.16 |
250 |
1600 |
2750 |
4676 |
120 |
71 | ||
|
SFM400-4P-2 |
230 |
50 |
0.80 |
173 |
1400 |
2440 |
4148 |
150 |
68 |
|
60 |
1.05 |
248 |
1600 |
2750 |
4676 |
120 |
71 | ||
|
SFM400-6P-3 |
380 |
50 |
0.22 |
68 |
900 |
1950 |
3315 |
50 |
71 |
|
60 |
0.18 |
82 |
1020 |
2150 |
3655 |
40 |
60 | ||

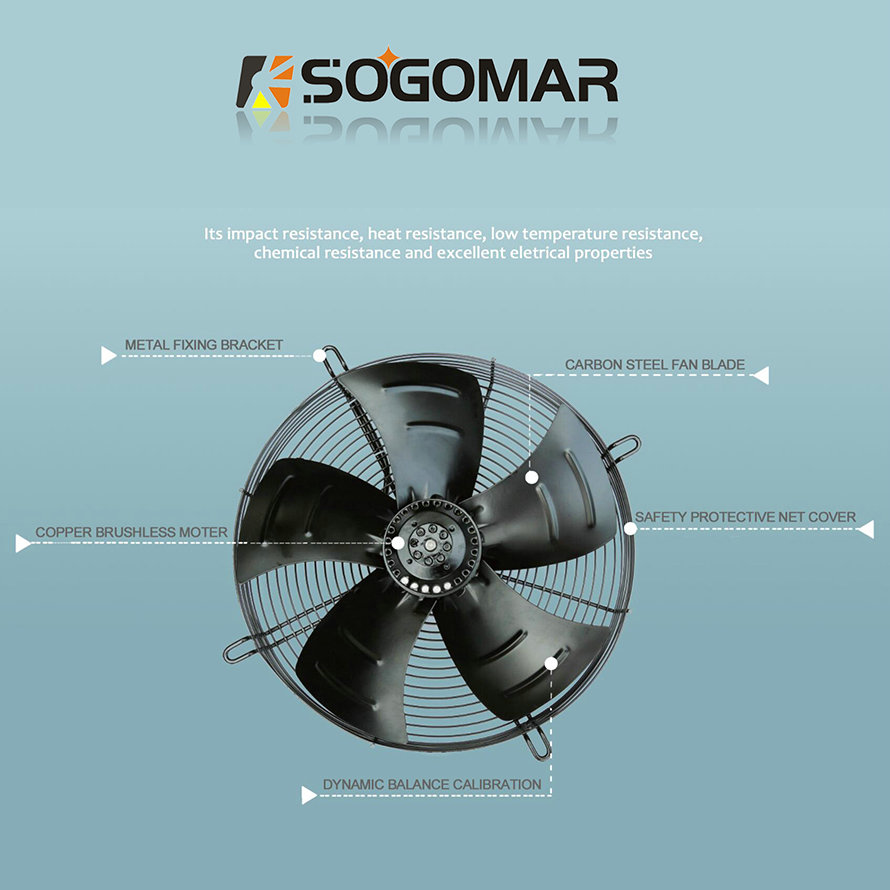

Information:
Motor: Configuration of External rotor motors
Net-cover: Steel wire with black paint,anti-corrosion and anti-oxidization treatment
Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
Protection: Motor Internal with automatic recovery thermal protector
Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
Insulting system: Design according to IEC61858 Grade F
Protecting Grade: IP54
Unit Weight: 5.5kgs

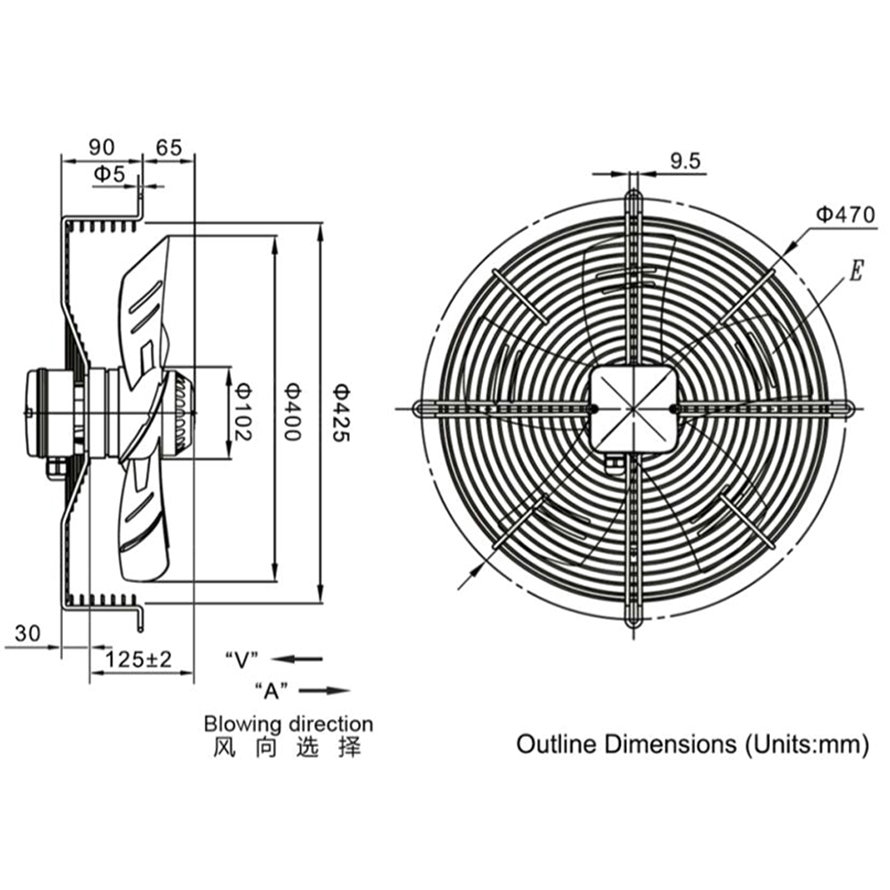

Dimensions:
