    SFG-112A Dia200mm
    SFG-112A Dia200mm
    Category:AC FAN - METAL IMPELLERS

    Brief description

    Motor: Configuration of External rotor motors
    Net-cover: Carbon steel with red paint, anti-corrosion and anti-oxidization treatment
    Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
    Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
    Protection: Motor Internal with automatic recovery thermal protector
    Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
    Insulting system: Design according to IEC61858 Grade F
    Protecting Grade: IP54

  • Brief description
  • Motor: Configuration of External rotor motors
    Net-cover: Carbon steel with red paint, anti-corrosion and anti-oxidization treatment
    Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
    Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
    Protection: Motor Internal with automatic recovery thermal protector
    Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
    Insulting system: Design according to IEC61858 Grade F
    Protecting Grade: IP54
    • Dia: 200mm



      Parameters:



      Type Model Voltage
      (V)
      Current
      (A)
      Power
      (W)
      Speed
      (min-1)
      Pressure
      (Pa)
      Air Flow
      (m3/h)
      IP Level Noise
      (dB)
      SFG-63A 110FZL3-2W 380 0.075 20 2800 40 300 54 55
      SFG-71A 130 FZL3-2W 380 0.08 25 2800 50 300 54 55
      SFG-80A 140 FZL3-2W 380 0.08 30 2800 60 330 54 58
      SFG-90A 165 FZL3-2W 380 0.086 42 2800 80 500 54 58
      SFG-100A 185 FZL3-2W 380 0.176 52 2750 80 660 54/55 62
      SFG-112A 200 FZL3-2W 380 0.18 60 2600 80 900 54/55 56
      SFG-132A 250 FZL3-2W 380 0.2 40 1400 35 780 54/55 66
      SFG-160A 300 FZL3-2W 380 0.26 80 1390 40 1300 54/55 66
      SFG-180A 330 FZL3-2W 380 0.26 80 1330 55 1300 54/55 67
      SFG-200A 380 FZL3-2W 380 0.27 150 1230 65 2400 54/55 67
      SFG-225A 400 FZL3-2W 380 0.37 200 1430 70 4200 54/55 72
      SFG-250A 450 FZL3-2W 380 0.4 230 1420 80 4200 54/55 72
      SFG-280A 500 FZL3-2W 380 0.56 320 1360 85 5000 54/55 75
      SFG-315A 550 FZL3-2W 380 0.78 370 1320 110 6000 54 75
      SFG-355A 600 FZL3-2W 380 1/1.9 400/600 900/1350 80/150 6500 54 77



      Information:

      Motor: Configuration of External rotor motors
      Net-cover: Carbon steel with red paint, anti-corrosion and anti-oxidization treatment
      Impeller: metal armor plate die-casting,surfaceis finished by black paint and anti-corrosion, the impellers are welded tomotor rotor
      Operation Temperature/Humidity Range: -40ºC ~ +75ºC/0% ~ 95%
      Protection: Motor Internal with automatic recovery thermal protector
      Withstand Voltage: AC1800V, 1min at 0.5mA, 50/60Hz
      Insulting system: , Design according to IEC61858 Grade F
      Protecting Grade: IP54

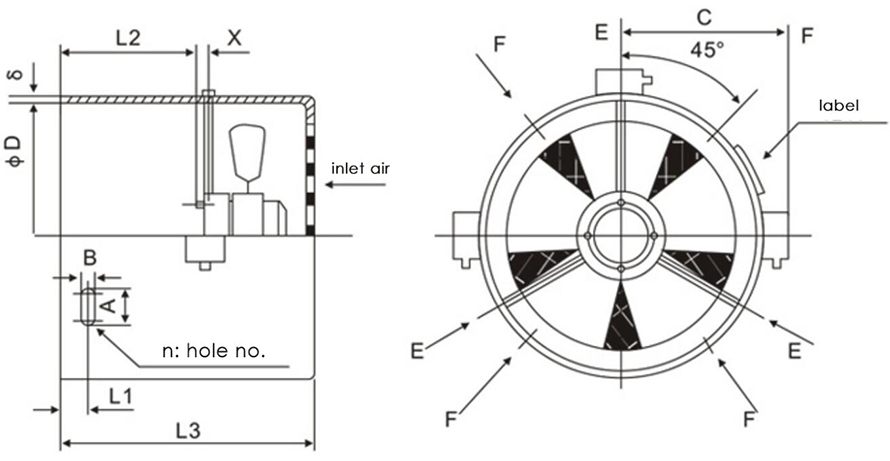

      Dimensions:

      Type D L1 L2 L3 G A B N C E
      SFG-63A 120 10 35 125 1 10 6 3 115 110
      SFG-71A 136 12.5 35 125 1.2 10 6 3 120 130
      SFG-80A 155 15 50 137 1.2 10 6 3 130 140
      SFG-90A 175 15 55 142 1.2 10 6 3 140 165
      SFG-100A 193 15 55 155 1.2 12 7 3 151 185
      SFG-112A 217 17 55 155 1.2 12 7 3 163 200
      SFG-132A 258 17 60 165 1.2 12 7 3 182 250
      SFG-160A 314 20 92 210 1.5 12 7 4 210 300
      SFG-180A 352 35 118 230 1.5 12 7 4 231 330
      SFG-200A 393 40 130 255 1.5 15 9 4 252 380
      SFG-225A 443 45 141 295 2 15 9 4 276 400
      SFG-250A 482 55 158 315 2 15 9 4 296 450
      SFG-280A 546 65 167 330 2 20 11 4 362 500
      SFG-315A 614 75 185 380 2 20 11 4 398 550
      SFG-355A 694 82 195 400/480 2.5 20 13 4 437 600

      Dimensions (unit:mm)
