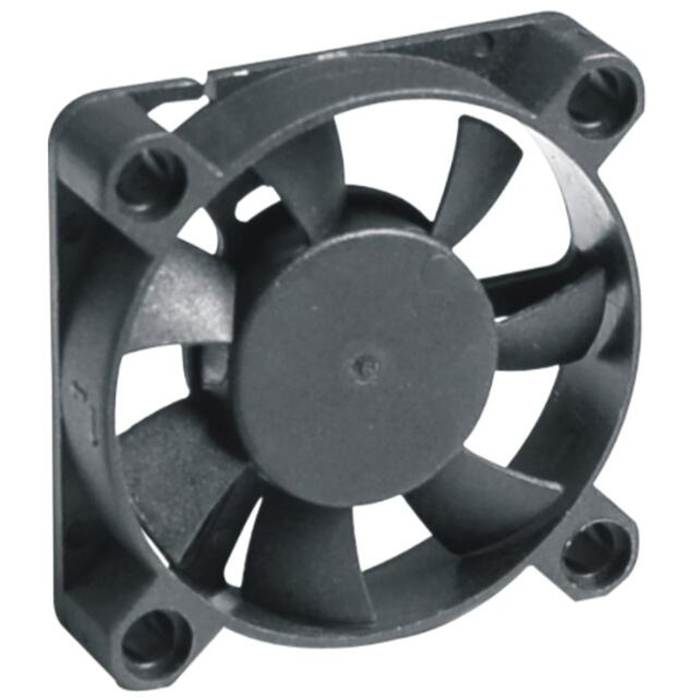

    SF4510
    SF4510
    Category：DC FAN

    Brief description

    Model: SF4510
    Size: 45x45x10mm
    Rated Voltage: 5VDC, 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 17g

  • Brief description
  • Model: SF4510
    Size: 45x45x10mm
    Rated Voltage: 5VDC, 12VDC, 24VDC
    Bearing Type: Ball Bearing and Sleeve Bearing
    Frame and Impeller: Black Plastic PBT UL94V-0
    Lead Wires: UL Type (+)Red (-)Black
    Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
    Unit Weight: 17g
    • Size: 45x45x10mm



      Parameters:

      Type
      产品型号

      Bearing Type
      轴承类型
         Ball       Sleeve

      Rated Voltage
      额定电压
      V

      Current
      电流
      A

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM         m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      SF4510B(S)-5L

      √

      √

      5

      0.09

      3800

      5.82

      9.89

      13.33

      18

      SF4510B(S)-5M

      √

      √

      0.12

      4500

      7.01

      11.92

      17.55

      22

      SF4510B(S)-5H

      √

      √

      0.18

      5500

      8.67

      14.74

      25.19

      27

      SF4510B(S)-12L

      √

      √

      12

      0.06

      3800

      5.82

      9.89

      13.33

      18

      SF4510B(S)-12M

      √

      √

      0.08

      4500

      7.01

      11.92

      17.55

      22

      SF4510B(S)-12H

      √

      √

      0.09

      5500

      8.67

      14.74

      25.19

      27

      SF4510B(S)-24L

      √

      √

      24

      0.03

      3800

      5.82

      9.89

      13.33

      18

      SF4510B(S)-24M

      √

      √

      0.05

      4500

      7.01

      11.92

      17.55

      22

      SF4510B(S)-24H

      √

      √

      0.06

      5500

      8.67

      14.74

      25.19

      27



      Information:
      Frame and impellers: Black Plastic PBT UL94V-0
      Lead Wires: UL Type(+)red (-)black
      Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
      Unit Weight: 15g



      Dimensions:
