    SFC190-45
    SFC190-45
    Category：CENTRIFUGAL FAN

    Brief description

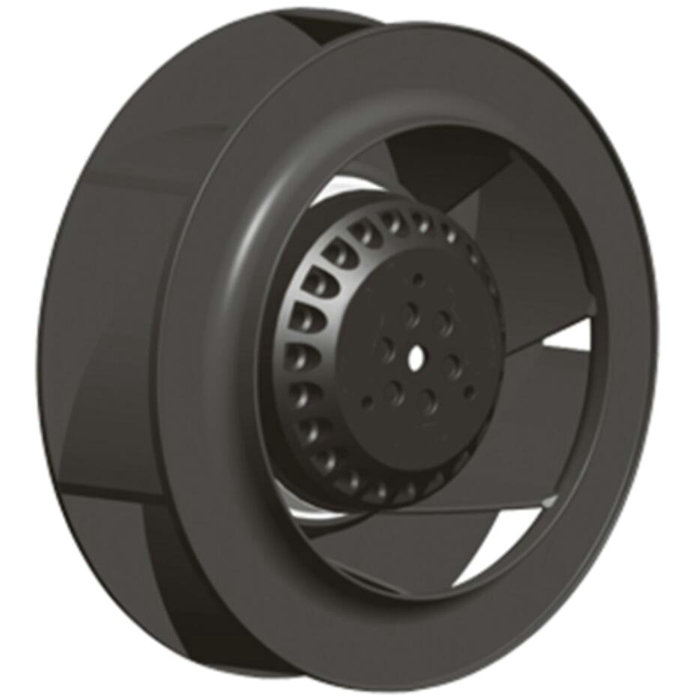

    Centrifugal Fan
    SFC190-2P45
    Dia: 190mm
    Voltage: 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Number of pole: 2 pole
    Outlet height: 45mm
    Material: plastic blades, copper coil
    Color: Black or white

  • Brief description
  • Centrifugal Fan
    SFC190-2P45
    Dia: 190mm
    Voltage: 110-120VAC, 220-240VAC, 380VAC
    Frequency: 50Hz, 60Hz and 50/60Hz
    Number of pole: 2 pole
    Outlet height: 45mm
    Material: plastic blades, copper coil
    Color: Black or white

    • Centrifugal Fan (Dia:190mm)



      Parameters:

      Type
      产品型号

      Rated Voltage
      额定电压
      V

      Frequency
      频率
      HZ

      Current
      电流
      A

      Power
      功率
      (W)+10% -20%

      Speed
      回转速度
      (min-1)

      Max Air Flow
      最大风量
      CFM      m3/h

      Static Pressure
      最大静压
      (PA)

      Noise
      噪音
      (dB)

      Capacitor
      电容
      (μF)

      SFC190-2P45-1

      115

      50

      0.64

      65

      2500

      336

      570

      330

      59

      5.0/250

      60

      0.65

      71

      2700

      365

      620

      420

      61

      SFC190-2P45-2

      230

      50

      0.26

      58

      2500

      336

      570

      330

      59

      2.0/450

      60

      0.33

      74

      2700

      365

      620

      420

      61

      SFC190-2P45-3

      380

      50

      0.17

      63

      2500

      336

      570

      330

      59

      0.5/630

      60

      0.19

      73

      2700

      365

      620

      420

      61



      Information:

      Motor：Cage type capacitor structure external rotor motor

      Impeller：Black PA nylon one-time injection moulding

      Operation Temperature/Humidity Range: -30℃~+65℃ 0%~95%

      Protection：Motor Internal with automatic recovery thermal protector

      Withstand Voltage：AC 1800V, 1 min at 0.5mA, 50/60Hz

      Insulation Grade：Design according to IEC61858 Grade

      Protection Grade：IP44

      Unit Weight: 1.27Kg

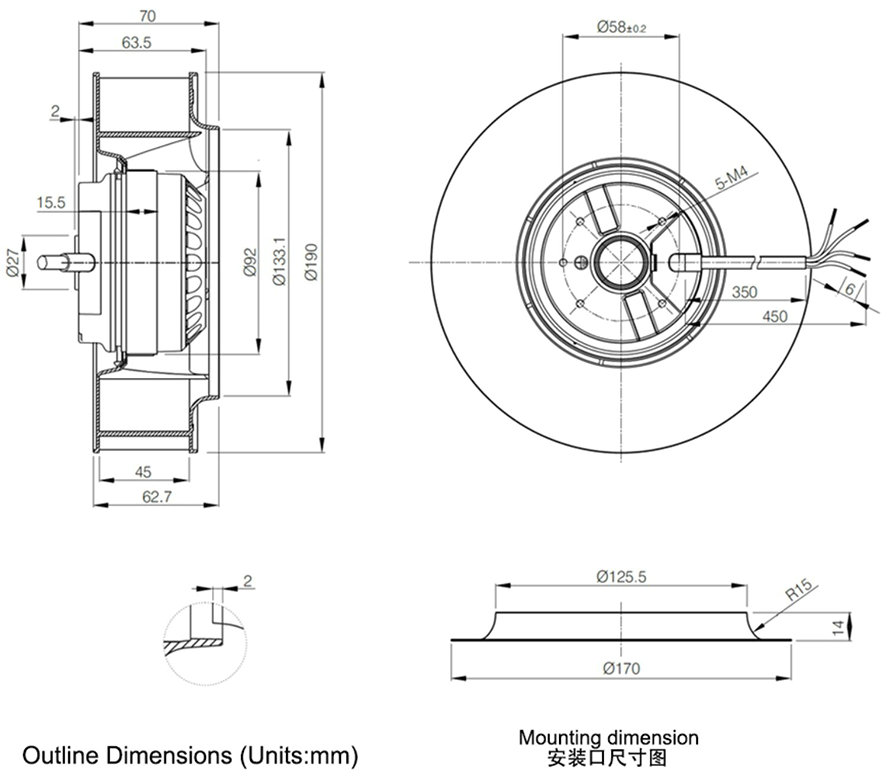

      Dimensions:
