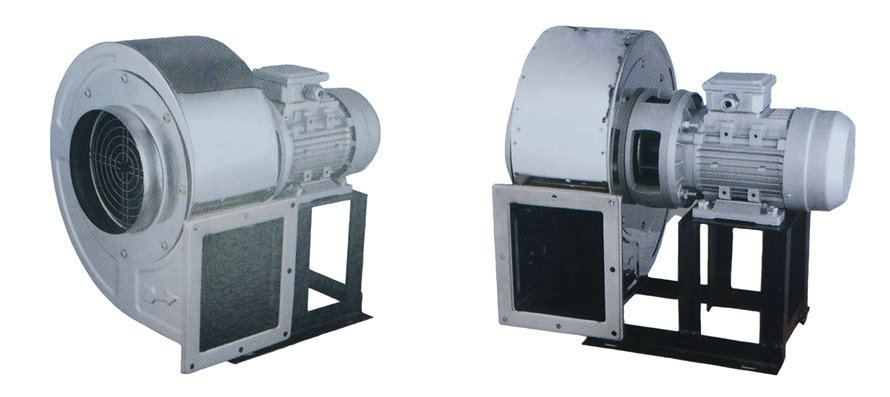

    (DF) Multi-Wing Blades Centrifugal Blower Fan with Low Noise
    (DF) Multi-Wing Blades Centrifugal Blower Fan with Low Noise
    Category:CENTRIFUGAL FAN

    Brief description

    Model NO.: DF
    Voltage: 380/220VAC
    Revolution: 2800r/Min
    Air Flow: 305-4600m3/H
    Noise: ≤70-80dB
    Trademark: SOGOMAR and OEM
    Material: Aluminum
    Usage: for Manufacture, Dust Exhausting, Ventilating
    Flow Direction: Centrifugal
    Pressure: 412-2050PA
    Power: 120W-2.2kw

  • Brief description
  • Model NO.: DF
    Voltage: 380/220VAC
    Revolution: 2800r/Min
    Air Flow: 305-4600m3/H
    Noise: ≤70-80dB
    Trademark: SOGOMAR and OEM
    Material: Aluminum
    Usage: for Manufacture, Dust Exhausting, Ventilating
    Flow Direction: Centrifugal
    Pressure: 412-2050PA
    Power: 120W-2.2kw

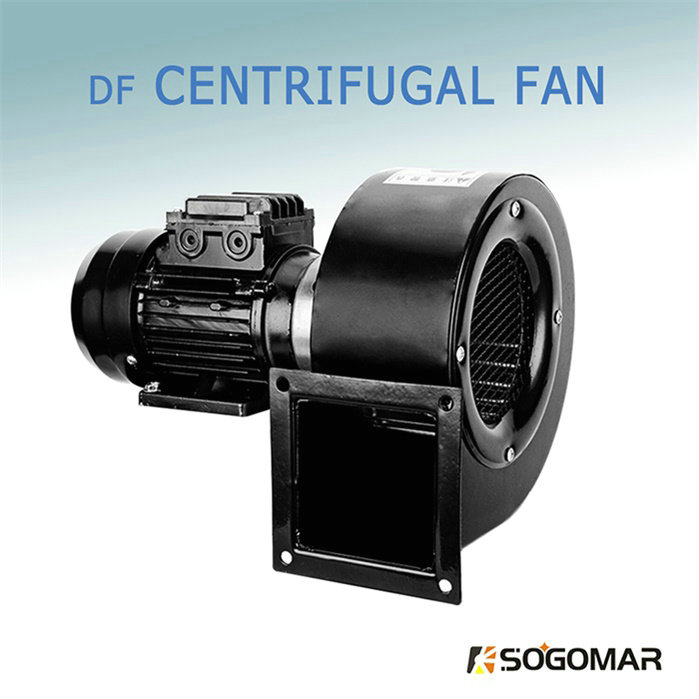

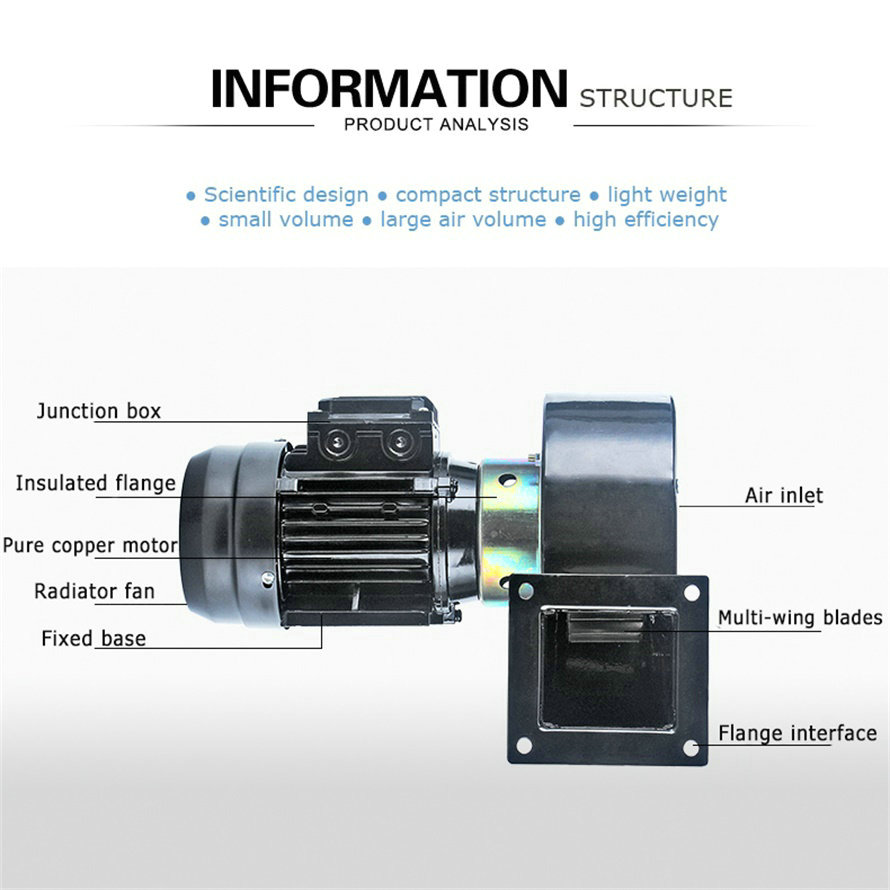

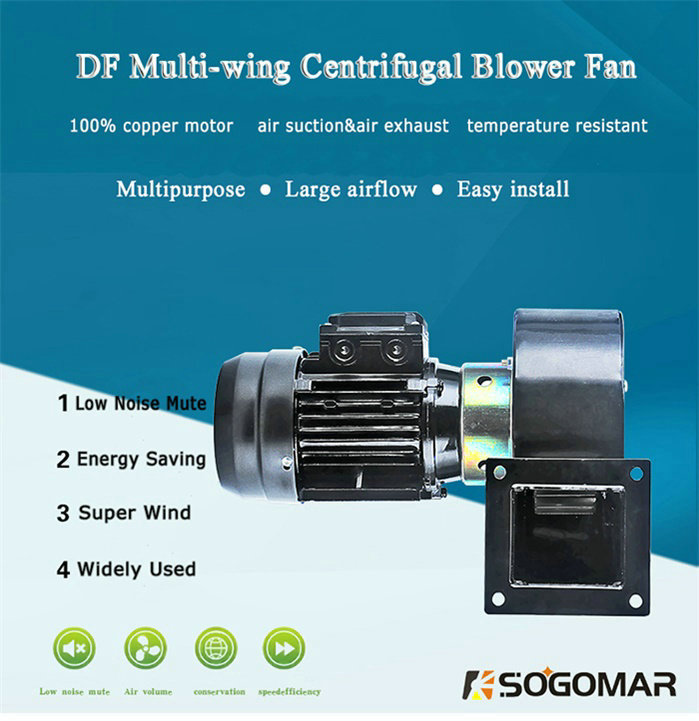

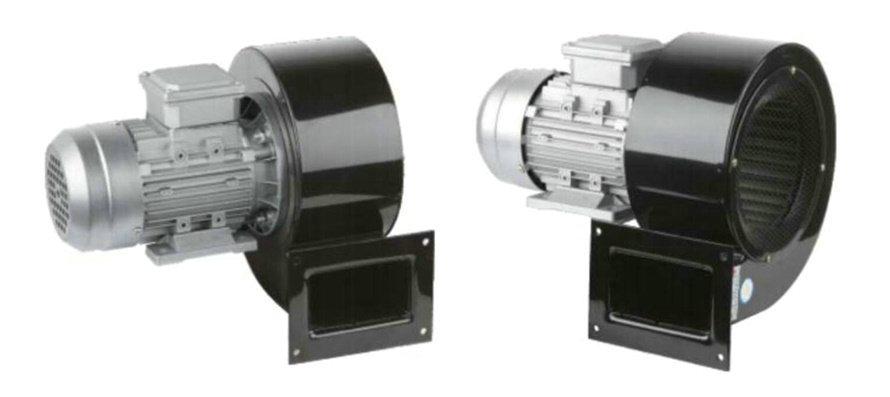

    • DF Low Noise Multi-wing Impellers Centrifugal Fan Blower

      1. Low noise, high efficiency, large volume, high pressure, small vibration, long service life, removable foot, flexible installation.
      2. Fan impeller automatic punching machine blanking, mechanical insert, after the dynamic balance of strict correction, to reduce vibration, operation balance and be firm.
      3. The motor is made of Y2 aluminum alloy die-casting material, greatly reducing the weight, convenient installation and beautiful appearance.

      4. Application:

      It is widely used in telecommunications, power, electrical, electronics, geology, coal mines, ships, paper making and other related industries.
      It is especially suitable for mechanical and general ventilation such as printing, plastic, packaging, blow drying, cooling and so on.

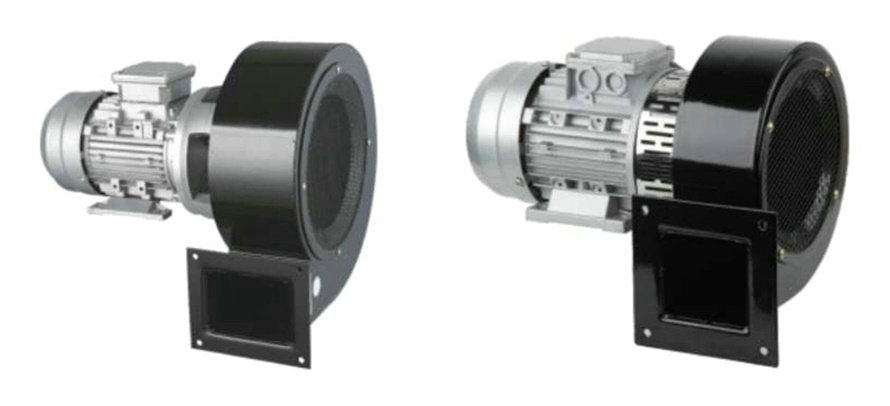

      DF Blower(high temperature resistant)


      1. On the basis of DF blower, add heat insulation connecting block (equipped with cooling fan blades) to cool the motor and ensure the motor running normally at high temperature.
      2. The main components of the motor are high temperature resistant materials (high temperature bearings, high temperature grease, high temperature insulation materials, etc.).
      3. Normal operating temperature of the fan: 180-200ºC

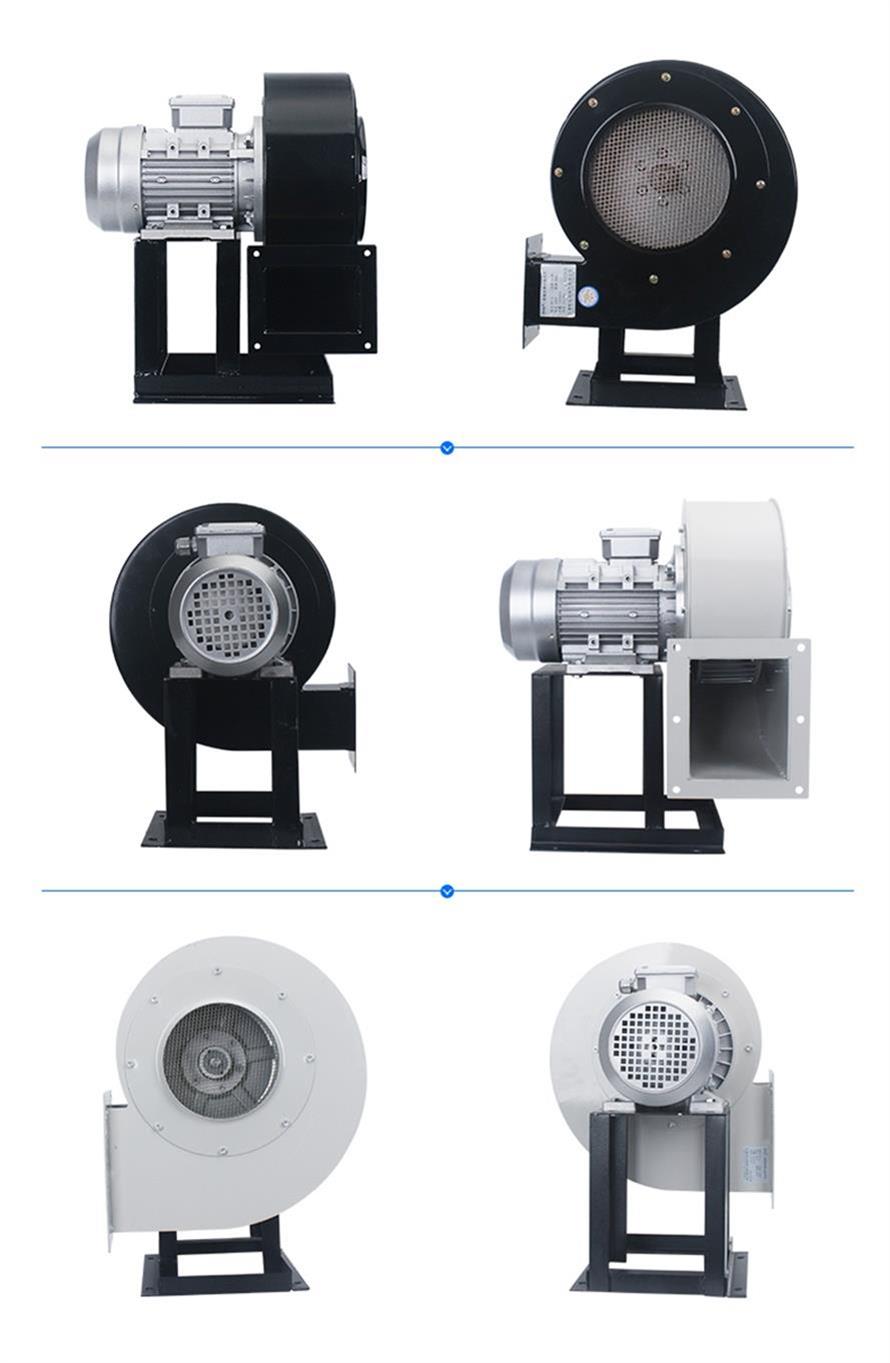

      DF Blower(C Type)

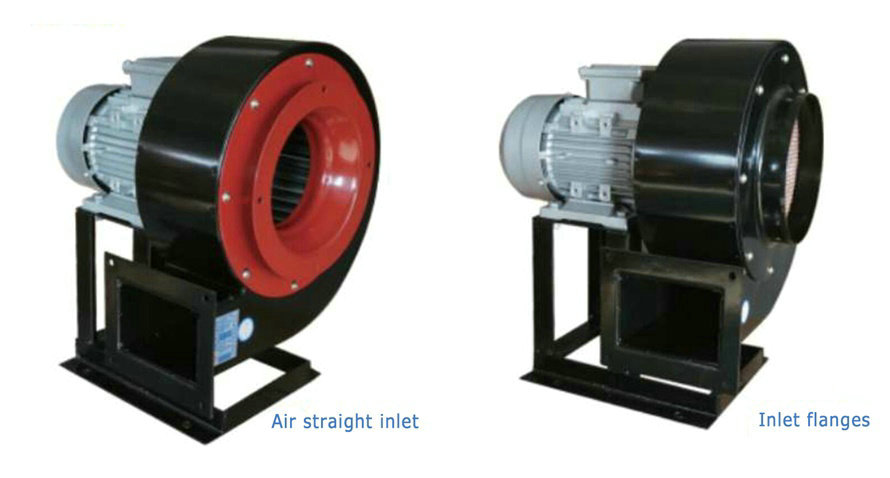

      1. On the basis of DF blower, it can be equipped with air straight inlet, inlet flanges, fan bracket
      2. A variety of interface ways for users to install and use
      3. Other non - standard interfaces can be customized

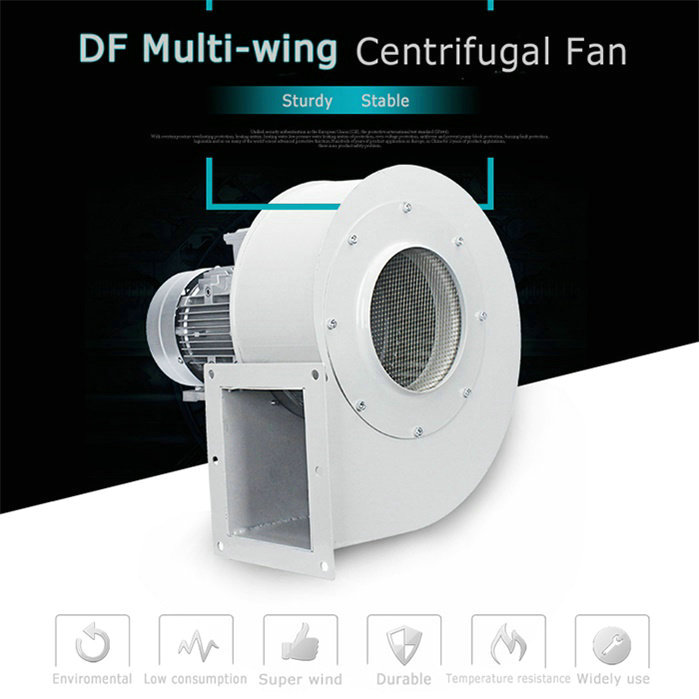

      DF Blower(Stainless steel)


      1. On the basis of DF blower,Sadopt stainless steel to increase corrosion resistance, abrasion resistance and higher strength hardness.
      2. Equipped with high temperature motor, fan can better increase performance of high temperature resistance and corrosion resistance.


      Parameters

      Type

      Motor Power

      Voltage

      Frequency

      Speed

      Air Flow

      Pressure

      Noise

      V

      Hz

      r/min

      m³/h

      Pa

      dB(A)

      DF-1.2-I

      120W

      220/380

      50

      2800

      305

      412

      72

      DF-1.3-Ⅱ

      180W

      220/380

      50

      2800

      405

      450

      75

      DF-1.6-I

      250W

      220/380

      50

      2800

      504

      860

      75

      DF-1.6-Ⅱ

      370W

      220/380

      50

      2800

      660

      850

      76

      DF-2-I

      550W

      220/380

      50

      2800

      860

      1020

      76

      DF-2-Ⅱ

      750W

      220/380

      50

      2800

      1200

      1210

      80

      DF-2-Ⅲ

      1.1KW

      220/380

      50

      2800

      1900-2700

      1380-1240

      82

      DF-2.3

      1.5KW

      220/380

      50

      2800

      2600-3500

      1360-1220

      83

      DF-2.5-I

      2.2KW

      220/380

      50

      2800

      3300-4000

      1470-1300

      84

      DF-2.5-Ⅱ

      3KW

      380

      50

      2800

      3900-4600

      2050-1860

      87

      DF-8

      1.1KW

      220/380

      50

      2800

      2100-2700

      1050-1200

      82

      DF-8B

      1.5KW

      220/380

      50

      2800

      2800-3800

      1240-1400

      83

      DF-9

      2.2KW

      220/380

      50

      2800

      3000-4200

      1450-1650

      84
