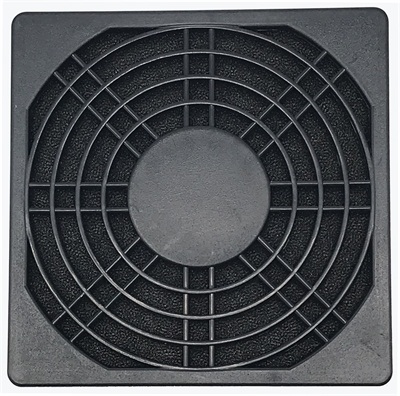

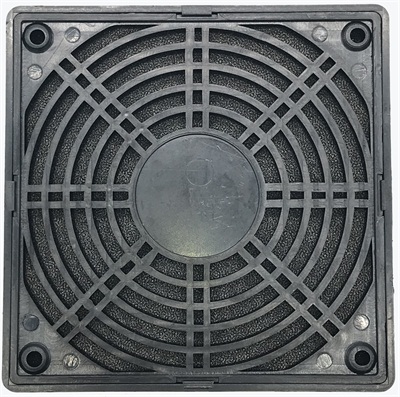

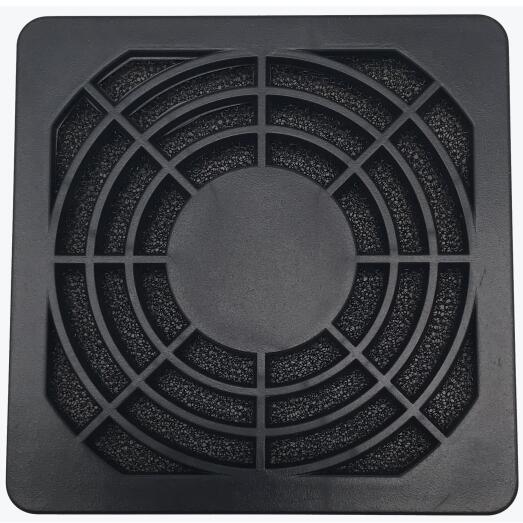

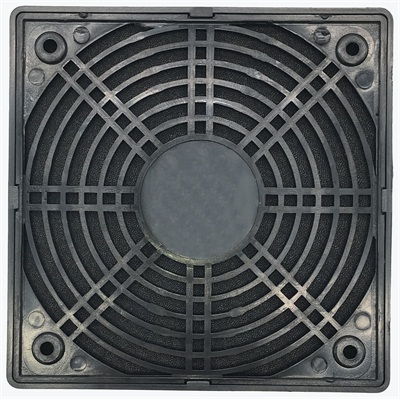

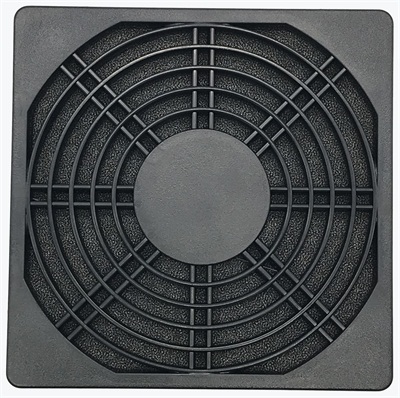

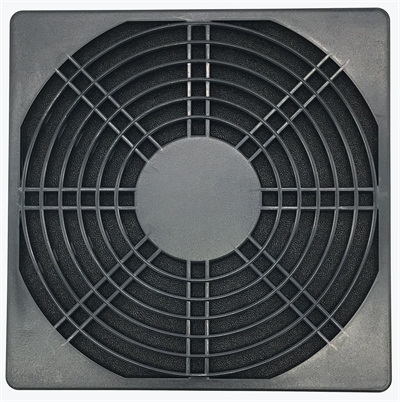

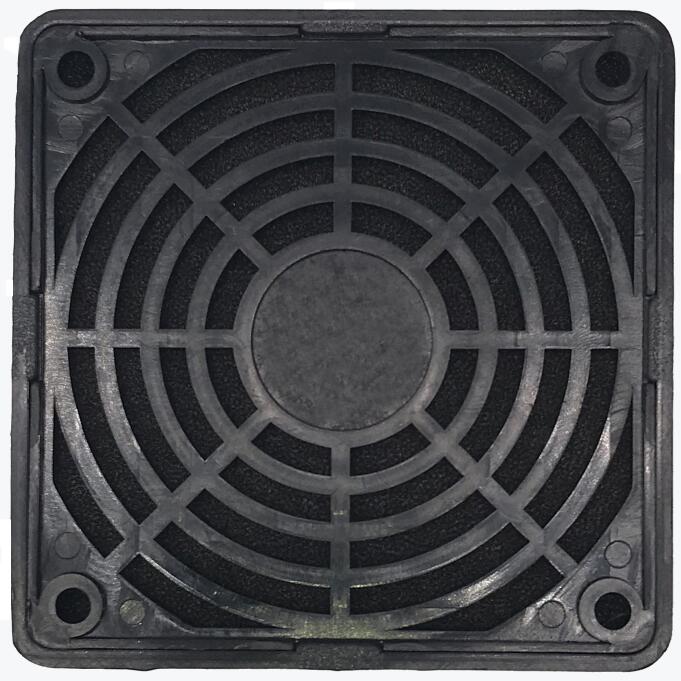

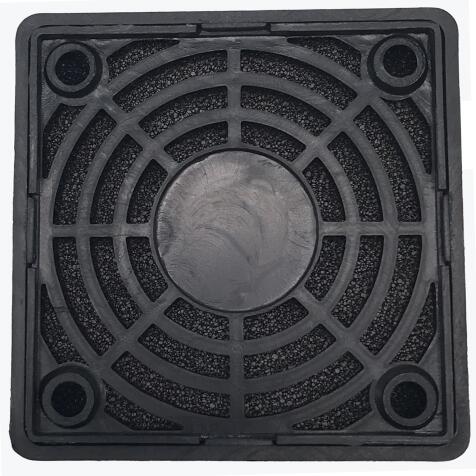

Brief description
90x90mm
Product applications:
Our products are widely used in the control panels, junction boxes, power distribution box, automation equipment, electronic and power device, welding machine, packing and printing machine.
Product advantages:
1. Simplicity as dominace
2. High efficiency for dust-proof function
3. Free of maintenance
4. Smart size
5. Easy to install
1. Material of net body: ABS resin of flamer resistance
2. Filter screen material: polyester fiber synthetic resin
3. Pressures lose of filter screen: initial 6.9mm AQ; terminal 24mmAQ
4. Max wind speed: 2.0m/sec
5. Operation temperature range: -10ºC to +55ºC indoors
6. Effective wind speed: 50m3/min
7. Collection coefficient: 89%
8. Protection grade: IP40
|
Type |
Dimension(mm) |
Application Fan size（mm） |
|
SPFG40 |
44X44 |
40X40 |
|
SPFG50 |
54X54 |
50X50 |
|
SPFG60 |
64X64 |
60X60 |
|
SPFG70 |
75X75 |
70X70 |
|
SPFG80 |
87X87 |
80X80 |
|
SPFG90 |
96.2X96.2 |
92X92 |
|
SPFG110 |
115X115 |
110X110, |
|
SPFG120 |
126X126 |
120X120 |
|
SPFG135 |
140X140 |
135X135 |
|
SPFG150 |
156X156 |
150X150 |
|
SPFG157 |
178X178 |
170X170 |
|
SPFG172 |
180X162 |
150X170 |
|
SPFG220 |
226.6X226.5 |
220X220 |
|
SPFG250 |
260X260 |
250X250 |
