Brief description

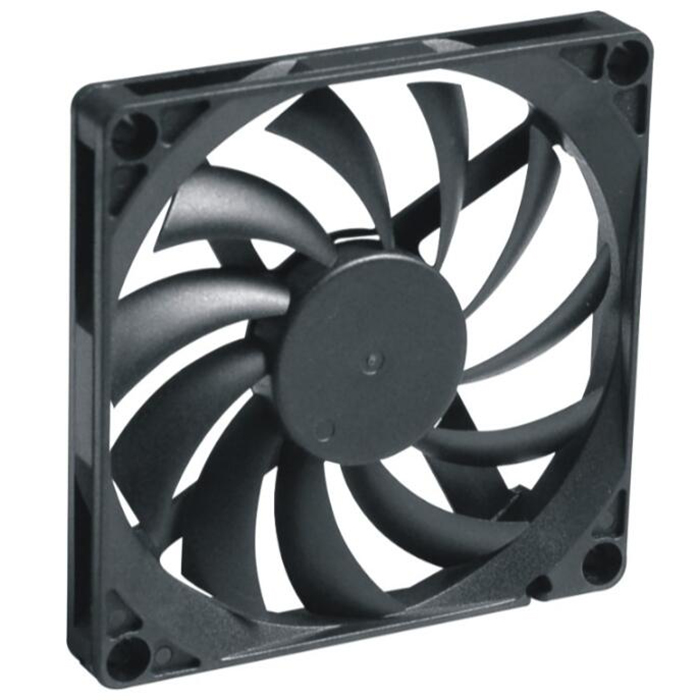

Model: SF7010
Size: 70x70x10mm
Rated Voltage: 12VDC, 24VDC
Bearing Type: Ball Bearing and Sleeve Bearing
Frame and Impeller: Black Plastic PBT UL94V-0
Lead Wires: UL Type (+)Red (-)Black
Operation Temperature/Humidity: -10ºC~70ºC/35%~85%
Unit Weight: 33g
Parameters:
|
Type |
Bearing Type |
Rated Voltage |
Current |
Speed |
Max Air Flow |
Static Pressure |
Noise | ||
|
SF7010B(S)-12L |
√ |
√ |
12 |
0.10 |
2500 |
13.31 |
22.63 |
12.55 |
24 |
|
SF7010B(S)-12M |
√ |
√ |
0.14 |
3000 |
16.39 |
27.86 |
24.31 |
28 | |
|
SF7010B(S)-12H |
√ |
√ |
0.21 |
3500 |
19.13 |
32.52 |
25.98 |
33 | |
|
SF7010B(S)-24L |
√ |
√ |
24 |
0.08 |
2500 |
13.31 |
22.63 |
12.55 |
24 |
|
SF7010B(S)-24M |
√ |
√ |
0.11 |
3000 |
16.39 |
27.86 |
24.31 |
28 | |
|
SF7010B(S)-24H |
√ |
√ |
0.13 |
3500 |
19.13 |
32.52 |
25.98 |
33 | |
Information:
Frame and impellers: Black Plastic PBT UL94V-0
Lead Wires: UL Type(+)red (-)black
Operation Temperature/Humidity: Temperature -10ºC ~ +70ºC Humidity 35% ~ 85%
Unit Weight: 33g

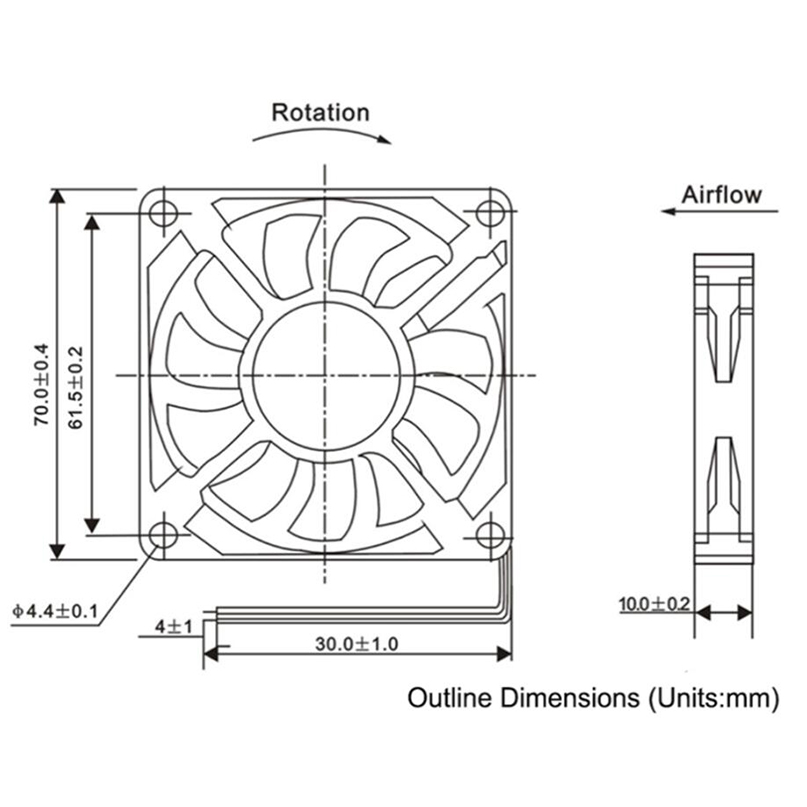

Dimensions:
